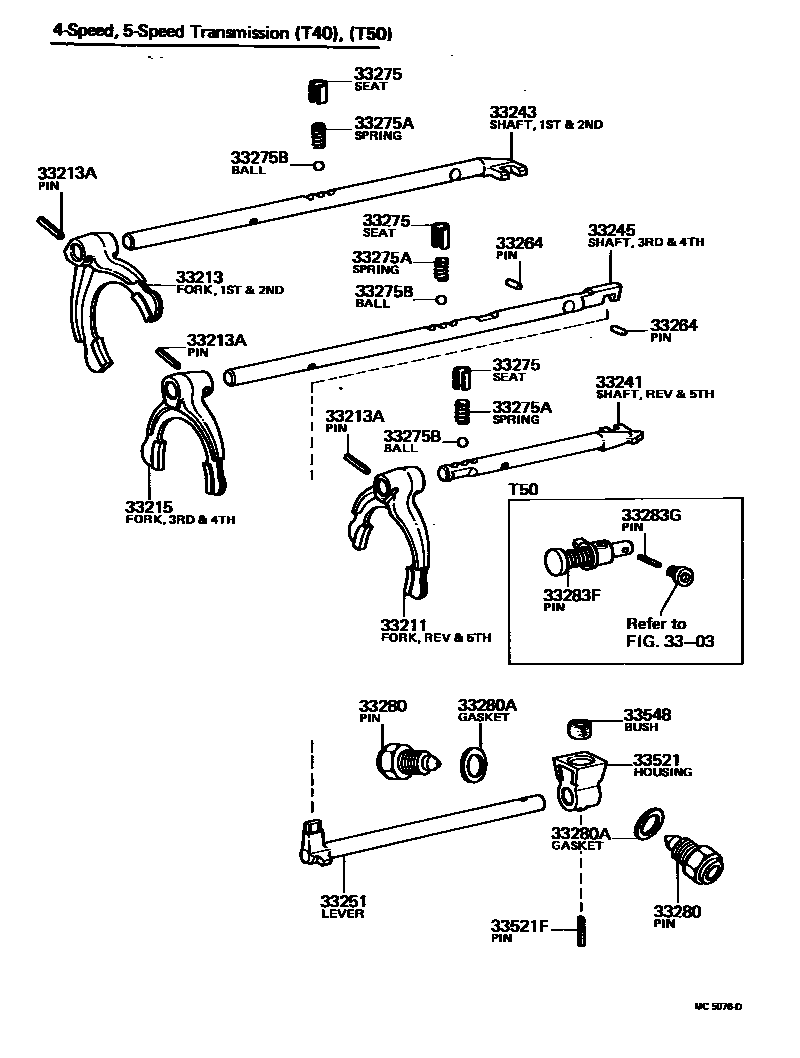

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3303
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33215FORK, 3RD & 4TH SHIFT
33245SHAFT, 3RD & 4TH SHIFT FORK
33251LEVER, SHIFT & SELECT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=10.8,OD=6
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
L=7.5,OD=15
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=16.5
L=16.1
33275BBALL, SHAFT DETENT
33280PIN ASSY, REVERSE RESTRICT
RH SIDE
LH SIDE
RH SIDE
33280AGASKET, REVERSE RESTRICT PIN
33283PIN, REVERSE RESTRICT, NO.1
33283FPIN, REVERSE RESTRICT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
33548BUSH, SHIFT LEVER
21 parts on this diagram · 4 diagrams in section
