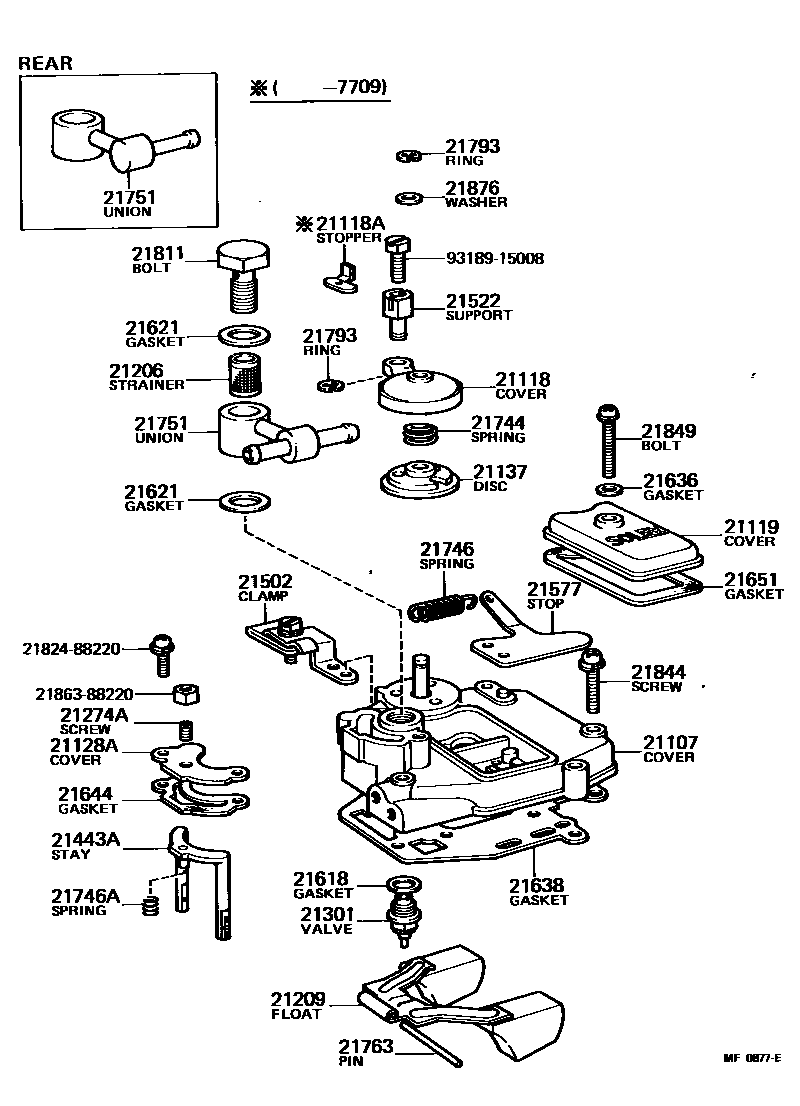

CARBURETOR
21107COVER SUB-ASSY, BOWL
21118COVER, CARBURETOR STARTER
21118ASTOPPER, FAST IDLE
21119COVER, JET CHAMBER
21128ACOVER, FLOAT ADJUST CHAMBER
21206STRAINER SUB-ASSY
21209FLOAT SUB-ASSY
21274ASCREW, FLOAT ADJUST
21443ASTAY, FLOAT ADJUST
21502CLAMP SUB-ASSY, CHOKE WIRE
21522SUPPORT, WIRE
21577STOP, STARTER BACK SPRING
FR
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
FUEL RETURN
FUEL INLET
21636GASKET, FLOAT CHAMBER PLUG
21638GASKET, BOWL LEVER
21644GASKET, FLOAT ADJUST CHAMBER COVER
21651GASKET, JET CHAMBER COVER
21744SPRING, CARBURETOR STARTER DISC
21746ASPRING, FLOAT ADJUST
21751UNION, NIPPLE
FR
RR
RR
FR CARBURETOR TO RR CARBURETOR
FUEL PUMP TO CARBURETOR
21793RING, CARBURETOR STARTER SNAP
21811BOLT, UNION NIPPLE
21844SCREW, CHOKE LEVER
21849BOLT, CHAMBER COVER WING
21876WASHER, CARBURETOR STARTER
2182488220SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
main21824-88220
2186388220WIRE(FOR FLOAT)
main21863-88220
9318915008
main93189-15008
33 parts on this diagram · 20 diagrams in section
