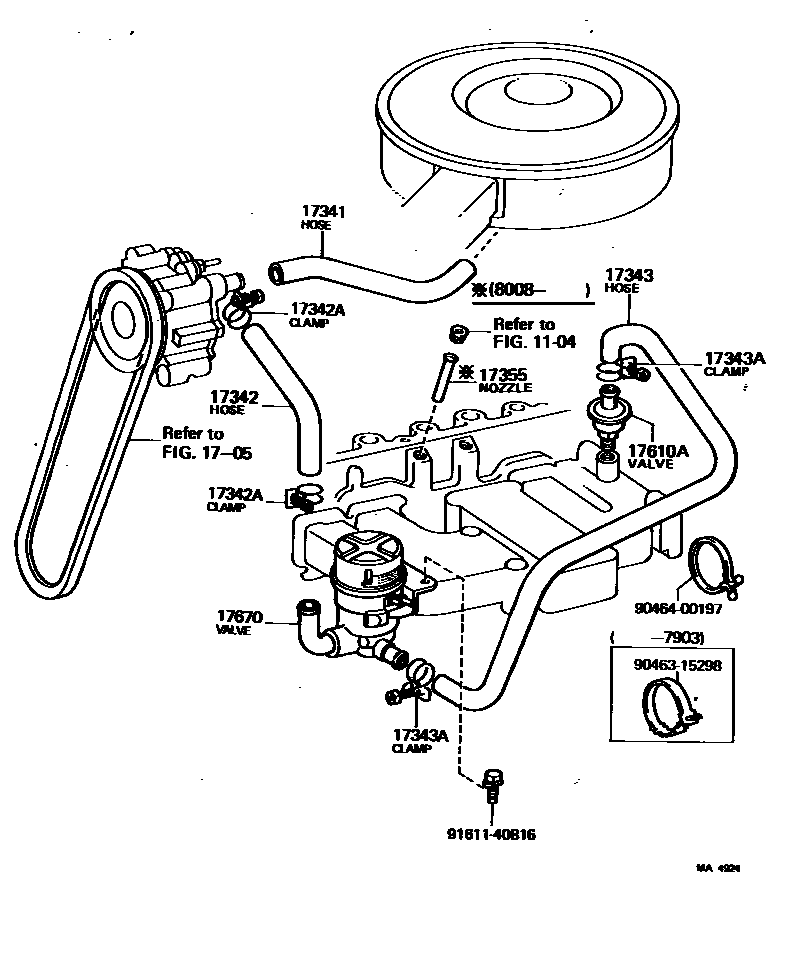

MANIFOLD AIR INJECTION SYSTEM
1104
1705
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17355NOZZLE, AIR INJECTION
17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)
17670VALVE ASSY, AIR BY-PASS
9046315298
main90463-15298
9046400197
main90464-00197
9161140816
main91611-40816
13 parts on this diagram · 2 diagrams in section
