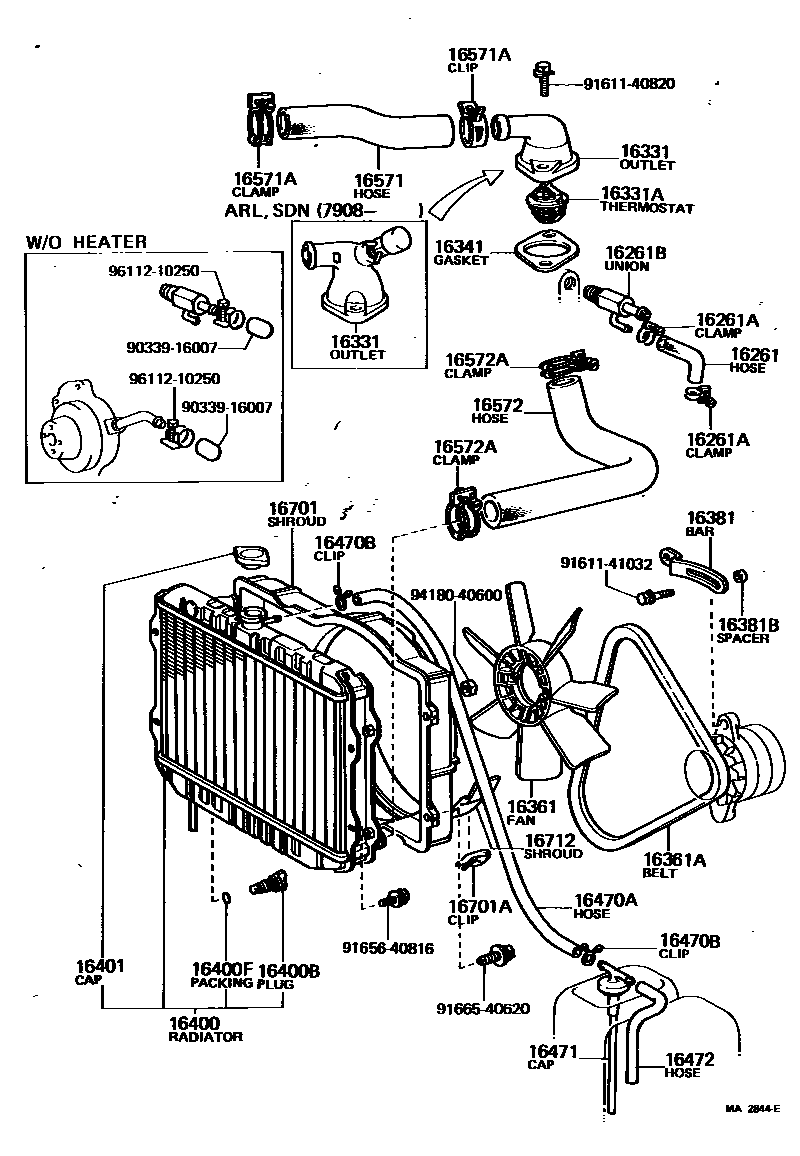

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261BUNION(FOR WATER BY-PASS HOSE)
16331ATHERMOSTAT
*WAX 82-95,FUJI-THOMSON
*WAX 88-100,FUJI-THOMSON
16361FAN
4 BLADES
16361ABELT, V(FOR FAN & ALTERNATOR)
L=839
L=840
L=850
L=860
L=885
L=840
L=839
L=851
L=860
16381BAR, FAN BELT ADJUSTING
16381BSPACER, FAN BELT ADJUSTING BAR
16400RADIATOR ASSY
MIDDLE EAST SPEC
FIN PITCH=6.0
FIN PITCH=4.5
MIDDLE EAST SPEC,FIN PITCH=4.0
MIDDLE EAST SPEC,FIN PITCH=3.5
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
sub96711-19007
16401CAP SUB-ASSY, RADIATOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600(*H,L=550)
L=900
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
RADIATOR SIDE
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
RADIATOR OUTLET SIDE
WATER PUMP INLET SIDE
RADIATOR SIDE,ID=45
RADIATOR SIDE,ID=46
ENGINE SIDE,ID=48
ENGINE SIDE,ID=49
16701ACLIP(FOR FAN SHROUD)
W/COOLER
W/COOLER
W/COOLER
16712SHROUD, FAN, NO.2
W/COOLER
W/COOLER
W/COOLER
W/COOLER
W/COOLER
9033916007
main90339-16007
9161140820
main91611-40820
9161141032
main91611-41032
9165640816
main91656-40816
9166540620
main91665-40620
9418040600
main94180-40600
9611210250
main96112-10250
33 parts on this diagram · 6 diagrams in section
