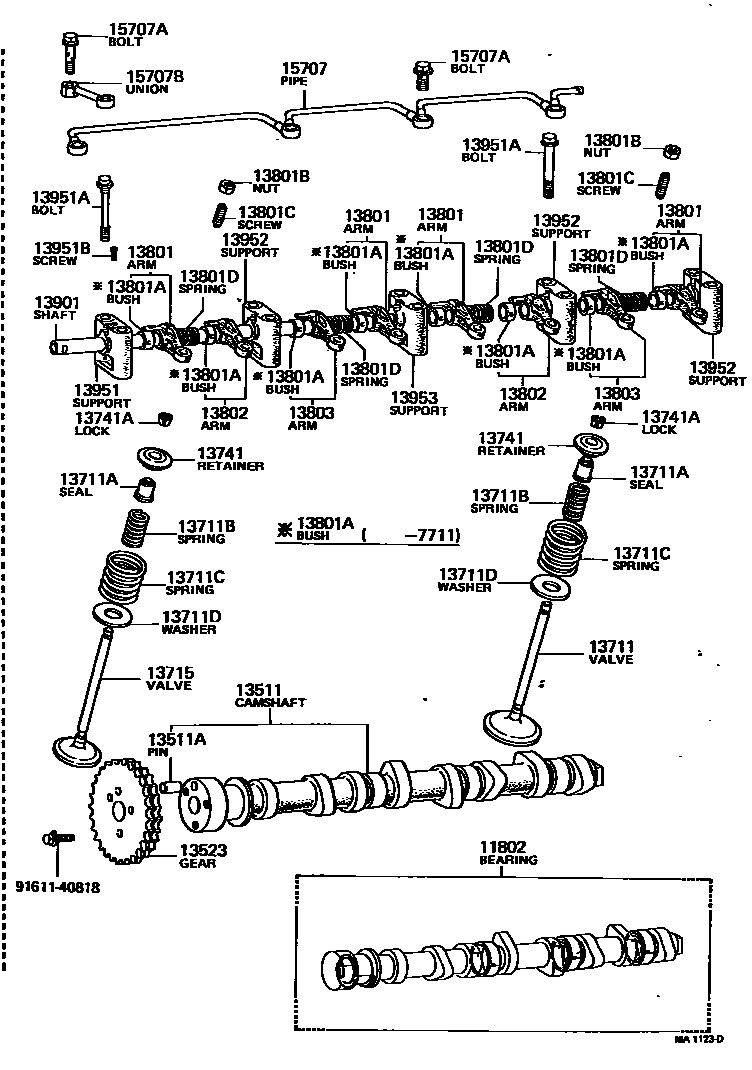

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
STD,STD
U/S 0.125
U/S 0.250
U/S 0.25,U/S 0.125
U/S 0.50,U/S 0.250
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
N=36
N=24
N=24
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
WD=2.6,CW=7.75
WD=2.6,CW=7.7
WD=4.7,CW=5.75
13711CSPRING, COMPRESSION(FOR OUTER)
WD=4.5,CW=5.55
WD=4.5,CW=6.5
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13801ABUSH, BIMETAL FORMED(FOR ROCKER ARM)
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
*8-1.25PX65-16
*8-1.25PX75-16
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
13953SUPPORT, VALVE ROCKER, NO.3
15707PIPE SUB-ASSY, OIL
15707ABOLT, UNION(FOR OIL PIPE)
L=37
L=19
15707BUNION(FOR OIL PIPE)
9161140818
main91611-40818
29 parts on this diagram · 4 diagrams in section
