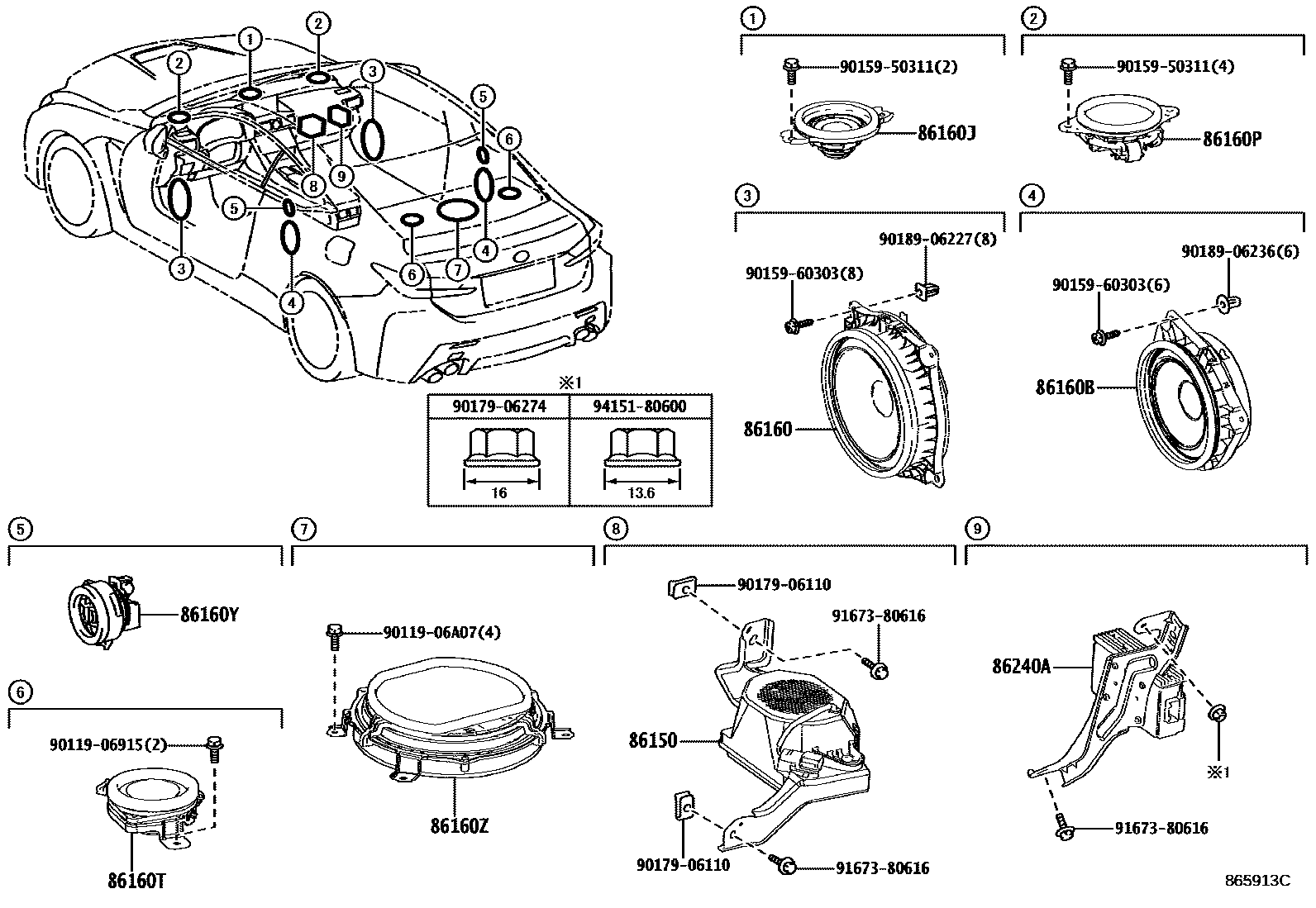

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-24250iUSC10..GCC,GEN201409-201902

main86150-24260iUSC10..ARL¥14,200201409-202412

86160SPEAKER ASSY, FRONT NO.1

main86160-0WX70iUSC10..ARL¥25,000201409-202412

main86160-53370iUSC10..ARL,GCC,GEN¥6,300201409-202111

86160BSPEAKER ASSY, REAR

main86160-0WW30iUSC10..CHI¥20,000201409-202412

main86160-33820iUSC10..LHD¥6,300201409-202111

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WV80iUSC10..CHI¥16,300201409-202301

main86160-33790iUSC10..ARL¥5,700201409-202301

main86160-33A50iUSC10..LHD¥6,300202301

main86160-78090iUSC10..ARL¥17,400202301-202412

86160PSPEAKER ASSY, FRONT NO.2

main86150-53050iUSC10..LHD¥8,400202009-202110

sub86160-33A40¥6,300

main86160-0WV80iUSC10..ARL¥16,300201409-202301

main86160-30D90iUSC10..ARL,GCC,GEN¥21,900201409-201609

main86160-33A40iUSC10..LHD¥6,300202111

main86160-48380iUSC10..ARL¥7,000201609-202111

main86160-78090iUSC10..ARL¥17,400202301-202412

86160TSPEAKER ASSY, REAR HEADER

main86150-0W190iUSC10..CHI¥16,300201409-202301

main86150-24230iUSC10..ARL¥17,100202301-202412

86160YSPEAKER ASSY, REAR NO.2

main86160-0WX20iUSC10..CHI¥9,300201409-202412

86160ZSPEAKER ASSY, REAR NO.3

main86160-0WW40iUSC10..CHI¥29,600201409-202412

main86160-30E50iUSC10..ARL¥14,200201409-202111

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-24020iUSC10..ARL¥37,800201409-201712

main86240-24030iUSC10..LHD201409-201711

sub86240-24031

main86240-24130iUSC10..ARL¥28,600201712-202412

main86240-24140iUSC10..LHD201711-201902

9011906915

main90119-06915¥60

9011906A07

main90119-06A07¥60

9015950311

main90159-50311¥70

9015960303

main90159-60303¥70

9017906110

main90179-06110¥90

9017906274

main90179-06274¥70

9018906227

main90189-06227¥70

9018906236

main90189-06236¥100

9167380616

main91673-80616¥60

9415180600

main94151-80600¥60

19 parts on this diagram · 2 diagrams in section
