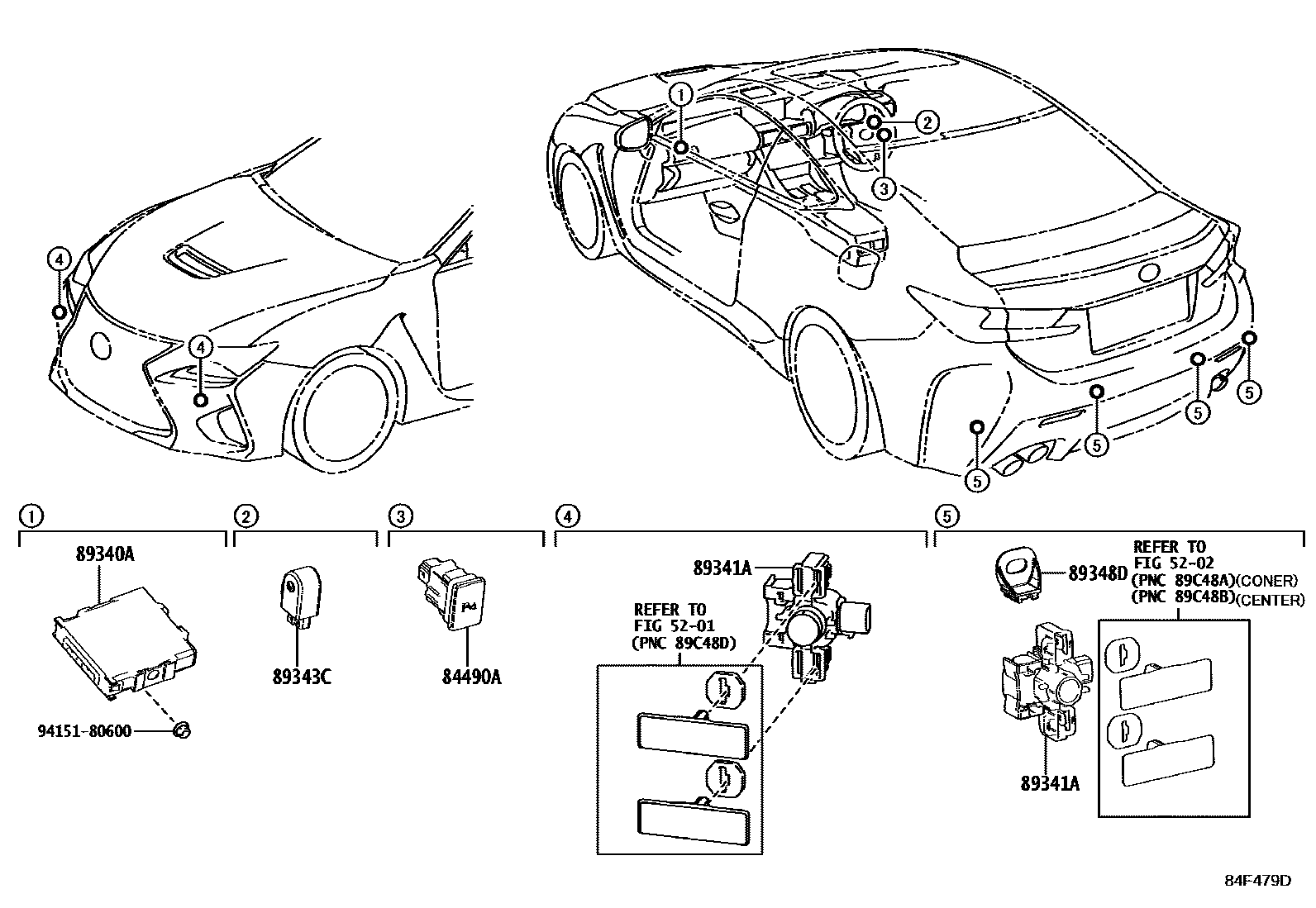

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1 0004 1

5201

5202

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-24010iUSC10..ARL202301-202412

main84490-53010iUSC10201409-201412

main84490-53011iUSC10..CHI201501-201711

main84490-53012iUSC10201907-202301

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-24030iUSC10..ARL201409-201711

main89340-24040iUSC10..LHD201409-201711

main89340-24070iUSC10..ARL201711-201902

main89340-24080iUSC10..LHD201711-201902

main89340-24110iUSC10..ARL201903-202301

main89340-24120iUSC10..LHD201903-202301

main89340-24190iUSC10..ARL202301-202412

main89340-24200iUSC10..LHD202301

89341ASENSOR, ULTRASONIC, NO.1

main89341-53010-A1×6iUSC10201409-201609

WHITE NOVA GF.,083

main89341-53010-B0×6iUSC10201409-201609

MERCURY GRAY MC.,1H9

main89341-53010-B3×6iUSC10201409-201609

SONIC SILVER,1J2

main89341-53010-C0×6iUSC10201409-201609

BLACK,212

main89341-53010-C1×6iUSC10201409-201609

STARLIGHT BLACK GF.,217

main89341-53010-D2×6iUSC10201409-201609

RED,3T5

main89341-53010-E2×6iUSC10201409-201609

ORANGE,4W7

main89341-53010-J3×6iUSC10201409-201609

BLUE,8X1

main89341-78010-A0×6iUSC10202009-202111

SONIC QUARTZ,091

main89341-78010-A1×6iUSC10..LHD201903

WHITE NOVA GF.,083

main89341-78010-B0×6iUSC10..ARL201609-201902

MERCURY GRAY MC.,1H9 ,1K7

main89341-78010-B2×6iUSC10201903-202009

SONIC TITANIUM,1J7

main89341-78010-B3×6iUSC10201609-201711

SONIC SILVER,1J2

main89341-78010-C1×6iUSC10201609-201711

BLACK,212

main89341-78010-C3×6iUSC10..CHI201609-201711

GRAPHITE BLACK GF.,223

main89341-78010-D1×6iUSC10..CHI201609-201711

RADIANT RED CONTRAST LAYE,3T5

main89341-78010-E3×6iUSC10..ARL,GCC,GEN201609-201902

LAVA ORANGE CS.,4W7

main89341-78010-F1×6iUSC10..ARL201903-202412

NAPLES YELLOW,5C1

main89341-78010-J3×6iUSC10..ARL,GCC,GEN201609-201902

HEAT BLUE CONTRAST LAYERI,8X1

main89341-78010-P1×6iUSC10..LHD202009

SONIC CHROME,1L1

main89341-78010-P6×6iUSC10..ARL202301-202412

TITANIUM CARBIDE GRAY,1L8

main89341-78010-P7×6iUSC10..LHD202501

SONIC IRIDIUM,1L2

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iUSC10..LHD202301

main89343-72010iUSC10..CHI201409-201711

89348DCLIP, ULTRASONIC SENSOR

main89348-35030×2iUSC10..LHD201903

9415180600

main94151-80600

8 parts on this diagram · 4 diagrams in section
