SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 1/2 0009 1INSTRUMENT PANEL 1/2 0010 1INSTRUMENT PANEL 1/2 0011 1INSTRUMENT PANEL 1/2 0012 1INSTRUMENT PANEL 2/2 0013 1INSTRUMENT PANEL 2/2 0014 1STEERING 0015 1SEAT 0016 1DOOR & ROOF 0017 1DOOR & ROOF 0018 1FLOOR & LUGGAGE

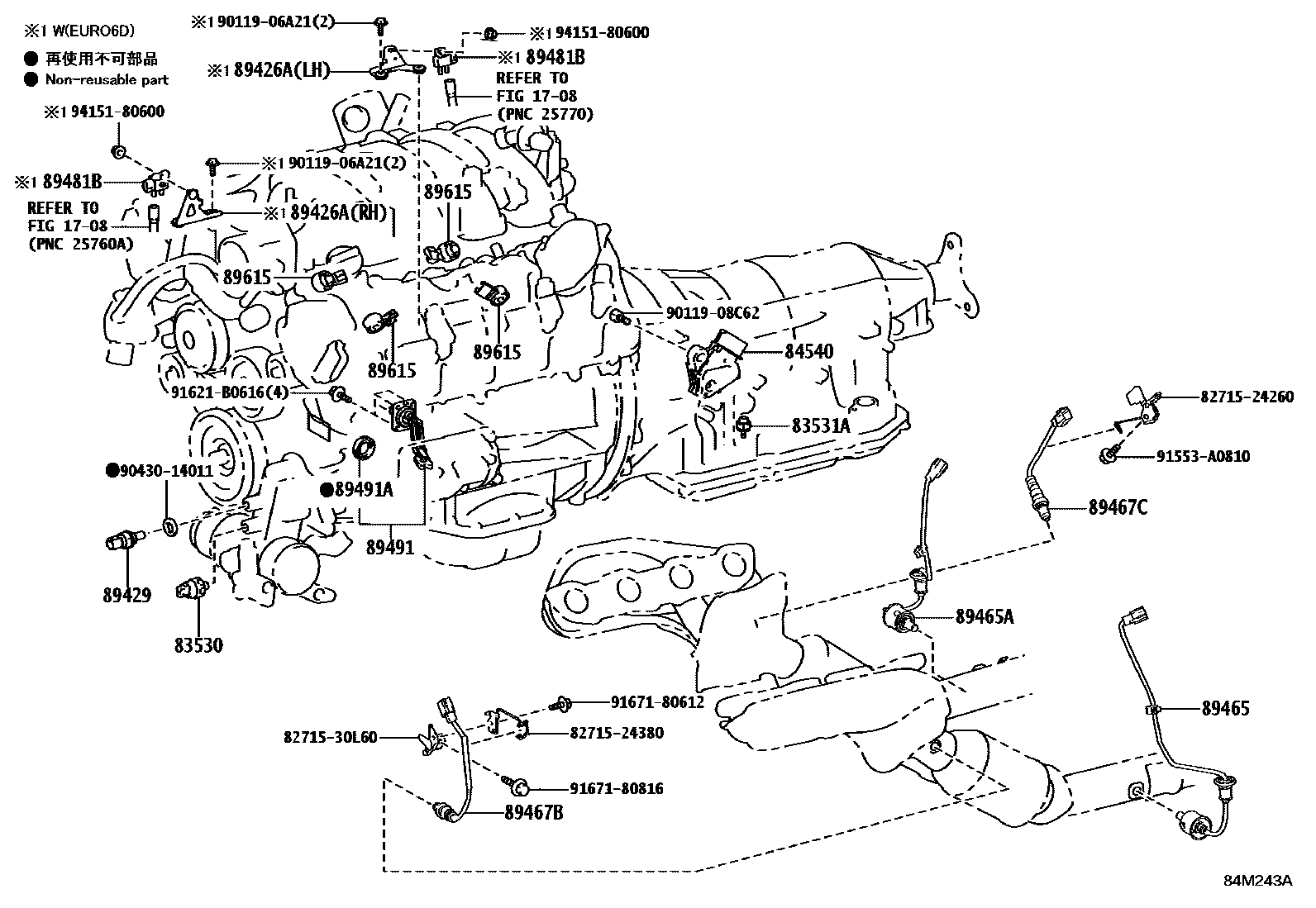

1708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUSC10201409-202412

DENSO,*369

main83530-60020iUSC10201409-202412

YAZAKI,*369

83531ASWITCH, OIL PRESSURE

main83531-50010iUSC10..CHI201409-202501

84540SWITCH ASSY, NEUTRAL START

main84540-71010iUSC10..CHI201409-202412

89426ABRACKET, VACUUM SENSOR

main89426-24020iUSC10..GEN202301

EXHAUST EMISSION CONTROL-EURO6 WITH(ON BOARD DIAGNOSIS) R51-03,RH

main89426-24020iUSC10..GEN202301

RH

main89426-24030iUSC10..GEN202301

LH

89429SENSOR, OIL TEMPERATURE

main89429-53010iUSC10..LHD201409-202412

89465SENSOR, OXYGEN

main89465-53290iUSC10..ARL201409-202412

89465ASENSOR, OXYGEN NO.2

main89465-53300iUSC10..CHI201409-202412

89467BSENSOR, AIR FUEL RATIO

main89467-24010iUSC10..CHI201409-202501

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-24020iUSC10..CHI201409-202501

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iUSC10..GEN202301

89491SENSOR, ENGINE OIL LEVEL

main89491-24020iUSC10..ARL201409-202412

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUSC10..CHI201409-202412

89615SENSOR, KNOCK CONTROL

main89615-20090iUSC10..ARL,GCC,GEN201409-202412

8271524260BRACKET,WIRING HARNESS CLAMP

main82715-24260

8271524380BRACKET,WIRING HARNESS CLAMP

main82715-24380

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60

9011906A21

main90119-06A21

9011908C62

main90119-08C62

9043014011

main90430-14011

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167180612

main91671-80612

9167180816

main91671-80816

9415180600

main94151-80600

25 parts on this diagram · 18 diagrams in section
