WIRING & CLAMP

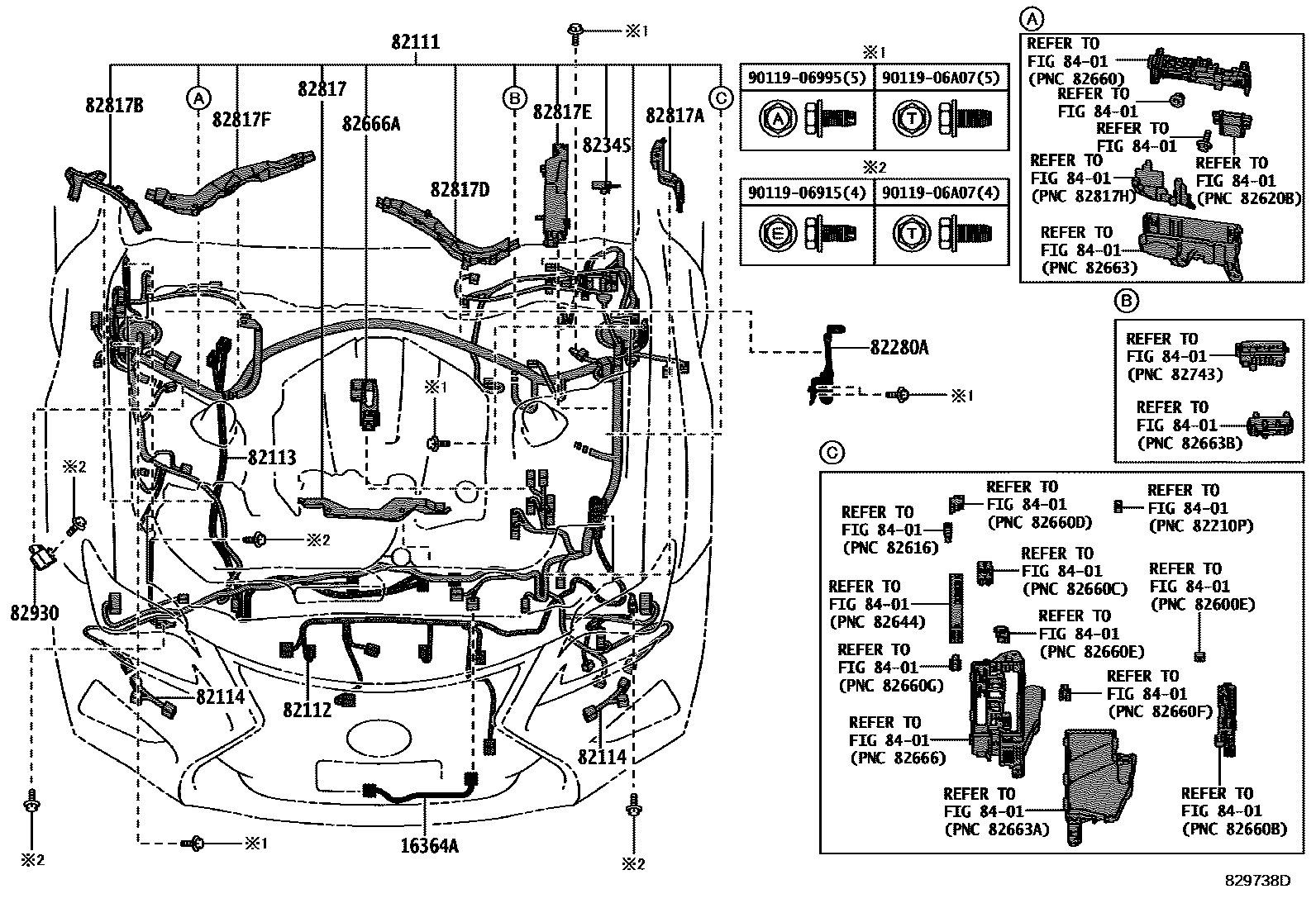

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1DOOR 0008 1FLOOR & ROOF 0009 1SEAT 0010 1CLAMP & BRACKET 0011 1CONNECTOR 1/2 0012 1CONNECTOR 2/2

16364AWIRE, COOLING FAN

main16364-38040i2URGSE..USC10..ARL¥1,290201409-202501

82111WIRE, ENGINE ROOM MAIN

main82111-24D10iUSC10..ARL¥238,000201409-201609

main82111-24D11iUSC10..ARL¥212,000201609-201711

main82111-24D12iUSC10..ARL¥212,000201711-201902

main82111-24D20iUSC10..LHD201409-201609

main82111-24D21iUSC10..LHD201609-201711

main82111-24D22iUSC10..LHD201711-201902

main82111-24U70iUSC10..ARL¥212,000201903-202009

main82111-24U71iUSC10..ARL¥176,000202009-202210

main82111-24U72iUSC10..ARL¥176,000202301-202310

main82111-24U73iUSC10..ARL¥164,000202310-202412

main82111-24U80iUSC10..LHD201903-202009

main82111-24U81iUSC10..LHD202009-202210

main82111-24U82iUSC10..LHD202301

main82111-24V00iUSC10..ARL¥176,000202210-202301

main82111-24V10iUSC10..LHD202210-202301

82112WIRE, ENGINE ROOM, NO.2

main82112-24160iUSC10..CHI¥7,600201409-201902

main82112-24350iUSC10201903-202009

main82112-24351iUSC10..ARL202009-202301

main82112-24361iUSC10..ARL¥5,700202111-202412

82113WIRE, ENGINE ROOM, NO.3

main82113-24050iUSC10..ARL¥11,700201409-202412

main82113-24060iUSC10..GCC,GEN201409-201902

82114WIRE, ENGINE ROOM, NO.4

main82114-24020iUSC10..CHI¥1,200201409-201902

main82114-24080iUSC10..ARL¥360201903-202412

82280AWIRE ASSY, BATTERY TO COWL TOP SIDE

main82280-24030iUSC10..ARL¥4,640201409-202412

main82280-24040iUSC10..CHI201409-201902

82345DIODE

main82345-32020iUSC10..CHI¥1,030201409-202412

82666AHOLDER, CONNECTOR NO.2

main82666-30A70iUSC10..CHI¥1,120201409-202412

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-24A40iUSC10..ARL¥1,170201409-202412

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-24A70iUSC10..ARL,GCC,GEN¥600201409-202412

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-30D30iUSC10..CHI¥760201409-202412

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-30B70iUSC10..GCC,GEN201409-201902

main82817-30M20iUSC10..ARL¥1,390201409-202412

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-30A90iUSC10..ARL¥990201910-202412

main82817-30M70iUSC10..GCC,GEN201409-201909

sub82817-3AK40

main82817-30Z00iUSC10..ARL¥1,190201409-201909

sub82817-30A90¥990

main82817-3AK40iUSC10..LHD201910

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-30M00iUSC10..CHI201409-201902

main82817-53280iUSC10..ARL¥1,200201409-202412

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-30030iUSC10..CHI201409-201902

main82930-30040iUSC10..ARL¥5,200201409-202412

8401

9011906915

main90119-06915¥60

9011906995

main90119-06995¥60

9011906A07

main90119-06A07¥60

19 parts on this diagram · 12 diagrams in section
