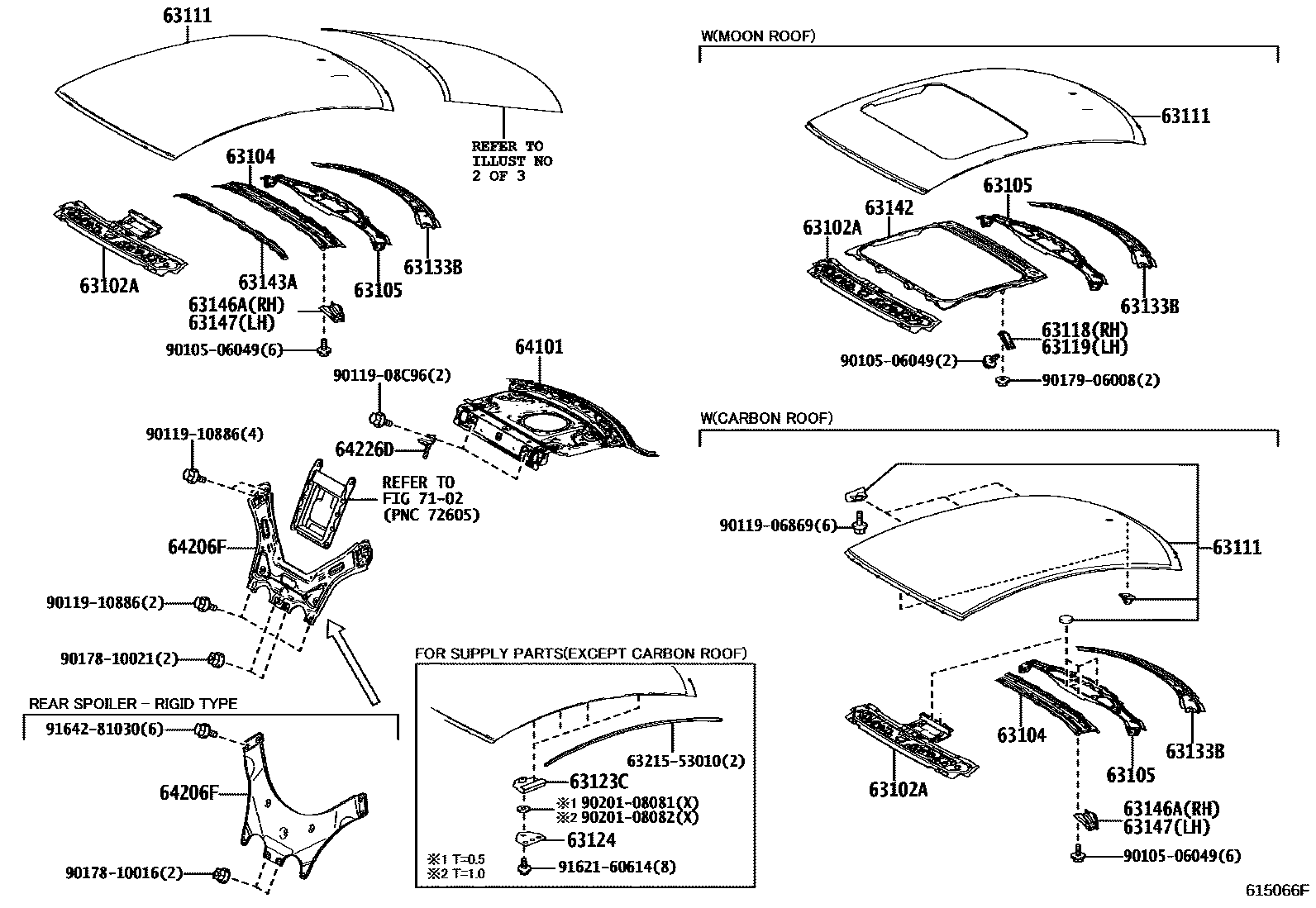

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1BACK WINDOW GLASS 0003 1SLIDING ROOF HOUSING

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-24901supersedes 63102-24900iUSC10..ARL201903-202412

MOON ROOF-WITH

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-24040iUSC10..ARL,GCC,GEN201409-201902

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63108-24010iUSC10..LHD201903

63111PANEL, ROOF

main63101-24110supersedes 63111-24090iUSC10..LHD201903-202501

BODY SHELL ASSY-CARBON ROOF & CARBON HOOD

main63111-24080supersedes 63111-24090iUSC10..LHD201903-202501

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-24060iUSC10..ARL201903-202412

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-24060iUSC10..ARL,GCC,GEN201409-201902

MOON ROOF-WITH

63123CREINFORCEMENT, ROOF PANEL

main63123-24010×8iUSC10..LHD201903

63124REINFORCEMENT, ROOF PANEL, NO.1

main63124-24010×8iUSC10..LHD201903

63133BFRAME, BACK WINDOW

main63133-24050iUSC10..ARL201903-202412

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-24050iUSC10..ARL,GCC,GEN201409-201902

MOON ROOF-WITH

63143AREINFORCEMENT, ROOF PANEL

main63143-24010iUSC10..CHI201409-201711

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-24010iUSC10..ARL201903-202412

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-24020iUSC10..ARL,GCC,GEN201409-201902

64101PANEL SUB-ASSY, UPPER BACK

main64101-24050iUSC10..LHD201903

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-24020iUSC10..CHI201409-201711

main64241-24050supersedes 64206-24020iUSC10..ARL201903-202412

"PERFORMANCE PACKAGE"*(H)

64226DHANGER, REAR SEAT CUSHION SUPPORT, NO.2

main64226-53010×2iUSC10..ARL201903-202412

7102

6321553010GARNISH, SLIDE ROOF RAIN CHANNEL, LH

main63215-53010

9010506049

main90105-06049

9011906869

main90119-06869

9011908C96

main90119-08C96

9011910886

main90119-10886

9017810016

main90178-10016

9017810021

main90178-10021

9017906008

main90179-06008

9020108081

main90201-08081

9020108082

main90201-08082

9162160614

main91621-60614

9164281030

main91642-81030

29 parts on this diagram · 3 diagrams in section
