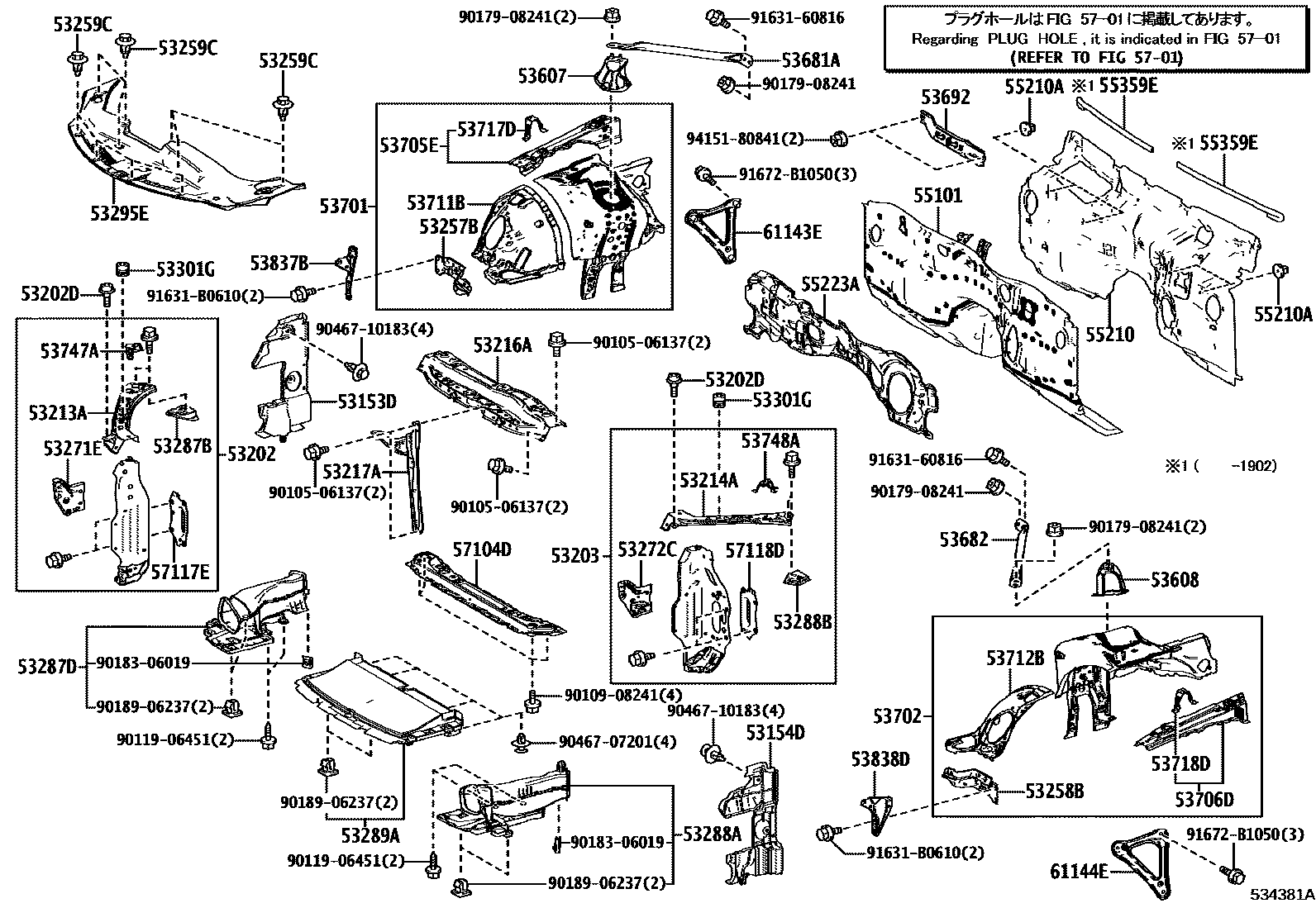

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-24040iUSC10..CHI201409-201902

main53153-24050iUSC10..ARL201903-202412

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-24040iUSC10..CHI201409-201902

main53154-24060iUSC10..ARL201903-202412

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-24902iUSC10..CHI201409-202010

sub53202-24903

main53202-24903iUSC10..ARL202010-202412

53202DCUSHION, RADIATOR SUPPORT

main53119-53021iUSC10..CHI201409-202412

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-24903iUSC10..CHI201409-202010

sub53203-24904

main53203-24904iUSC10..ARL202010-202412

53213ASUPPORT, RADIATOR, UPPER RH

main53213-24040iUSC10..CHI201409-202412

53214ASUPPORT, RADIATOR, UPPER LH

main53214-24040iUSC10..CHI201409-202412

53216ASUPPORT, RADIATOR, UPPER

main53216-24060iUSC10..CHI201409-202412

53217ABRACE, HOOD LOCK SUPPORT

main53217-30905iUSC10..CHI201409-201909

main53217-30908iUSC10..ARL201909-202412

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-24020iUSC10..CHI201409-202412

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-24020iUSC10..CHI201409-202412

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07217iUSC10..CHI201409-202412

53271EBRACKET, HEADLAMP MOUNTING, RH

main53245-24020iUSC10..CHI201409-202412

53272CBRACKET, HEADLAMP MOUNTING, LH

main53246-24020iUSC10..CHI201409-202412

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-24010iUSC10..CHI201409-202412

53287DDUCT, COOL AIR INTAKE

main53207-24040iUSC10..CHI201409-201902

main53207-24050iUSC10..ARL201903-202412

53288ADUCT, COOL AIR INTAKE

main53208-24060iUSC10..CHI201409-201902

main53208-24110iUSC10..ARL201903-202412

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-24010iUSC10..CHI201409-202412

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-24020iUSC10..CHI201409-201902

main53289-24050iUSC10..ARL201903-202412

53295ESEAL, COOL AIR INTAKE DUCT

main53295-24020iUSC10..CHI201409-201806

sub53295-24021

main53295-24021iUSC10201807-201902

main53295-24040iUSC10..ARL201903-202412

53301GCUSHION, HOOD BUMPER

main90541-15034iUSC10..CHI201409-202412

53607BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH

main53607-24010iUSC10201409-201609

main53683-24020iUSC10..CHI201609-202301

53608BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH

main53608-24010iUSC10201409-201609

main53684-24020iUSC10..CHI201609-202301

53681ABRACE, FRONT SUSPENSION UPPER TO COWL, RH

main53681-24010iUSC10..CHI201409-202301

53682BRACE, FRONT SUSPENSION UPPER TO COWL, LH

main53682-24010iUSC10..CHI201409-202301

53692BRACKET, FRONT SUSPENSION UPPER BRACE

main53692-24010iUSC10..ARL201409-202412

main53692-24020iUSC10..GCC,GEN201409-202301

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-24180iUSC10..CHI201409-202412

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-24160iUSC10..CHI201409-202412

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-24020iUSC10..CHI201409-202412

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-24020iUSC10..CHI201409-202412

53711BAPRON, FRONT FENDER, FRONT RH

main53711-24050iUSC10..CHI201409-202412

53712BAPRON, FRONT FENDER, FRONT LH

main53712-24060iUSC10..CHI201409-202412

53717DGUSSET, FENDER APRON, RH

main53717-24031iUSC10..CHI201409-202412

53718DGUSSET, FENDER APRON, LH

main53717-24031iUSC10..CHI201409-202412

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-24030iUSC10..CHI201409-202412

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-24030iUSC10..CHI201409-202412

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-24020iUSC10..CHI201409-202412

53838DBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-24050iUSC10..CHI201409-202412

55101PANEL SUB-ASSY, DASH

main55101-24150iUSC10..ARL201903-202301

main55101-24160iUSC10..LHD201903

main55101-24170iUSC10..ARL202301-202412

main55101-53190iUSC10..ARL201409-201902

main55101-53260iUSC10..CHI201409-201902

55210INSULATOR ASSY, DASH PANEL

main55210-53100iUSC10..ARL201409-202412

main55210-53110iUSC10..LHD201409-201511

sub55210-53111

main55210-53111iUSC10..GCC,GEN201512-201902

55210ACLIP

main90904-67034iUSC10..LHD201409-202412

55223AINSULATOR, DASH PANEL, OUTER

main55223-24063iUSC10..LHD202301

main55223-24070iUSC10..ARL201409-202207

sub55223-24071

main55223-24071iUSC10..ARL202208-202412

main55223-24080iUSC10..LHD201409-201512

sub55223-24081

main55223-24081iUSC10..LHD201601-202010

sub55223-24082

main55223-24082iUSC10..LHD202011-202301

55359ECUSHION, INSTRUMENT PANEL, NO.5

main55355-30100iUSC10..CHI201409-201902

5701

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-30090iUSC10..CHI201409-202105

sub57104-30091

main57104-30091iUSC10..ARL202106-202412

57117ERETAINER, FRONT BUMPER ARM, RH

main57117-30050iUSC10..CHI201409-202412

57118DRETAINER, FRONT BUMPER ARM, LH

main57118-30050iUSC10..CHI201409-202412

61143EGUSSET, FRONT BODY PILLAR DOOR OPENING, UPPER RH

main61143-24010iUSC10..CHI201409-202412

61144EGUSSET, FRONT BODY PILLAR DOOR OPENING, UPPER LH

main61144-24010iUSC10..CHI201409-202412

9010506137

main90105-06137

9010908241

main90109-08241

9011906451

main90119-06451

9017908241

main90179-08241

9018306019

main90183-06019

9018906237

main90189-06237

9046707201

main90467-07201

9046710183

main90467-10183

9163160816

main91631-60816

91631B0610

main91631-B0610

91672B1050

main91672-B1050

9415180841

main94151-80841

61 parts on this diagram · 2 diagrams in section
