REAR SPRING & SHOCK ABSORBER
4102
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
45520AROD SET, REAR STEERING TIE, RH
45520BROD SET, REAR STEERING TIE, LH
45520CNUT, REAR STEERING TIE, RH
45520DNUT, REAR STEERING TIE, LH
48070ABRACKET ASSY, REAR SUSPENSION ARM
48231ASPRING, COIL, REAR RH
TAIWAN SPEC
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
BRUNEI SPEC
BRUNEI SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
INDONESIA SPEC
INDONESIA SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
SINGAPORE SPEC
SINGAPORE SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
MALAYSIA SPEC
MALAYSIA SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
TAIWAN SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
TAIWAN SPEC
BRUNEI SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
INDONESIA SPEC
INDONESIA SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
MALAYSIA SPEC
MALAYSIA SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
TAIWAN SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
MACAU SPEC
MACAU SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
BRUNEI SPEC
TAIWAN SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL 2.937
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL 2.937
BRUNEI SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL 2.937
INDONESIA SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL 2.937
48231BSPRING, COIL, REAR LH
TAIWAN SPEC
BRUNEI SPEC
BRUNEI SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
INDONESIA SPEC
INDONESIA SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
SINGAPORE SPEC
SINGAPORE SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
MALAYSIA SPEC
MALAYSIA SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
TAIWAN SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
TAIWAN SPEC
BRUNEI SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
INDONESIA SPEC
INDONESIA SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
MALAYSIA SPEC
MALAYSIA SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
TAIWAN SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
MACAU SPEC
MACAU SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL
BRUNEI SPEC
TAIWAN SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL 2.937
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL 2.937
BRUNEI SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL 2.937
INDONESIA SPEC&REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL 2.937
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48481BSEAT, REAR SPRING, UPPER RH
48482SEAT, REAR SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-24290
MARK 48530-24400
MARK 48530-24520
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48539BRACKET, ACTUATOR SUPPORT, RR
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-24290
MARK 48530-24400
MARK 48530-24520
48595BCLAMP, ACTUATOR HARNESS
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48790EARM ASSY, UPPER CONTROL, REAR RH NO.2
48790FARM ASSY, UPPER CONTROL, REAR LH NO.2
48805BAR SUB-ASSY, REAR STABILIZER
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
48840ALINK ASSY, REAR STABILIZER, LH
9010514200
main90105-14200
9010516087
main90105-16087
9011910940
main90119-10940
9011914129
main90119-14129
9011914131
main90119-14131
9017712001
main90177-12001
9017810014
main90178-10014
9017812009
main90178-12009
9017910212
main90179-10212
9017914045
main90179-14045
91556C1470
main91556-C1470
91672G1275
main91672-G1275
91672G1485
main91672-G1485
91672K1235
main91672-K1235
91672K1250
main91672-K1250
91673A0616
main91673-A0616
91673L1030
main91673-L1030
9415121401
main94151-21401
9415121601
main94151-21601
9462241600
main94622-41600
9462251400
main94622-51400

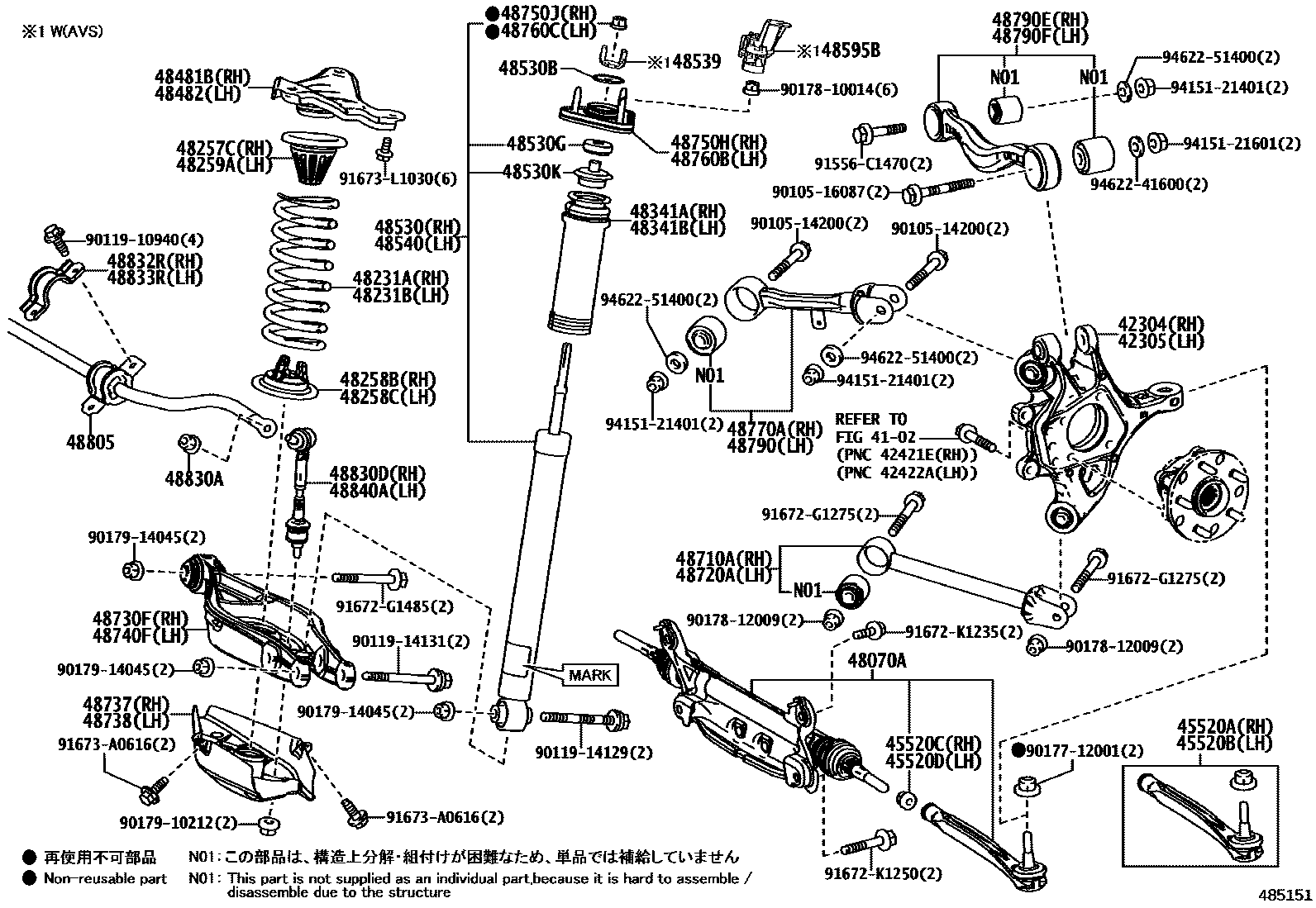

66 parts on this diagram · 2 diagrams in section
