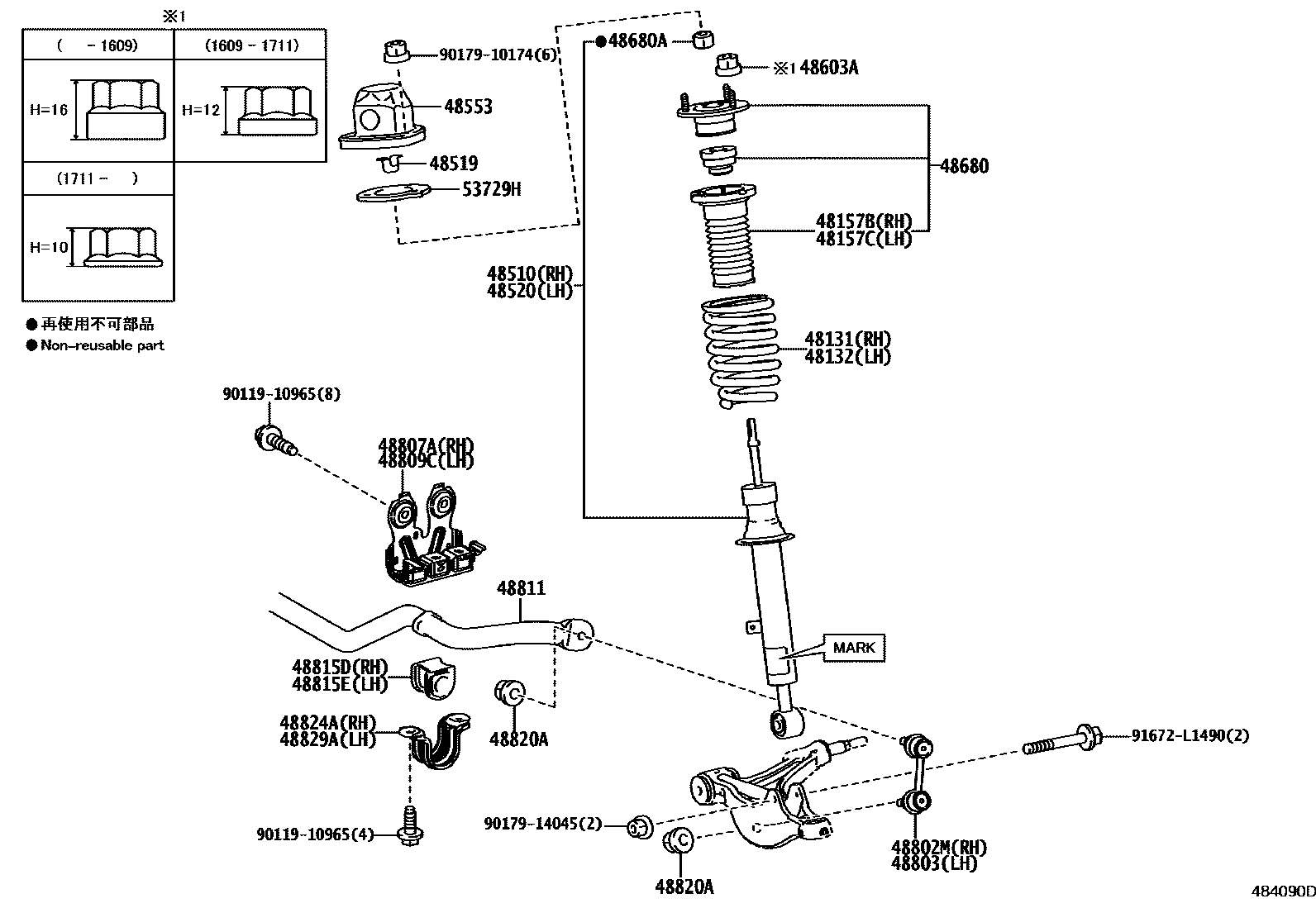

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
"PERFORMANCE PACKAGE"*(H)
48132SPRING, FRONT COIL, LH
"PERFORMANCE PACKAGE"*(H)
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-24420
MARK 48510-24440
MARK 48510-24550
48519BRACKET, ACTUATOR SUPPORT, FRONT
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-24150
MARK 48520-24170
MARK 48520-24280
48553CAP, SHOCK ABSORBER, UPPER
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48680SUPPORT ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48802MLINK SUB-ASSY, FRONT STABILIZER, RH
48803LINK SUB-ASSY, FRONT STABILIZER, LH
48807ABRACKET, FRONT STABILIZER, RH
48809CBRACKET, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
9011910965
main90119-10965
9017910174
main90179-10174
9017914045
main90179-14045
91672L1490
main91672-L1490
26 parts on this diagram · 1 diagram in section
