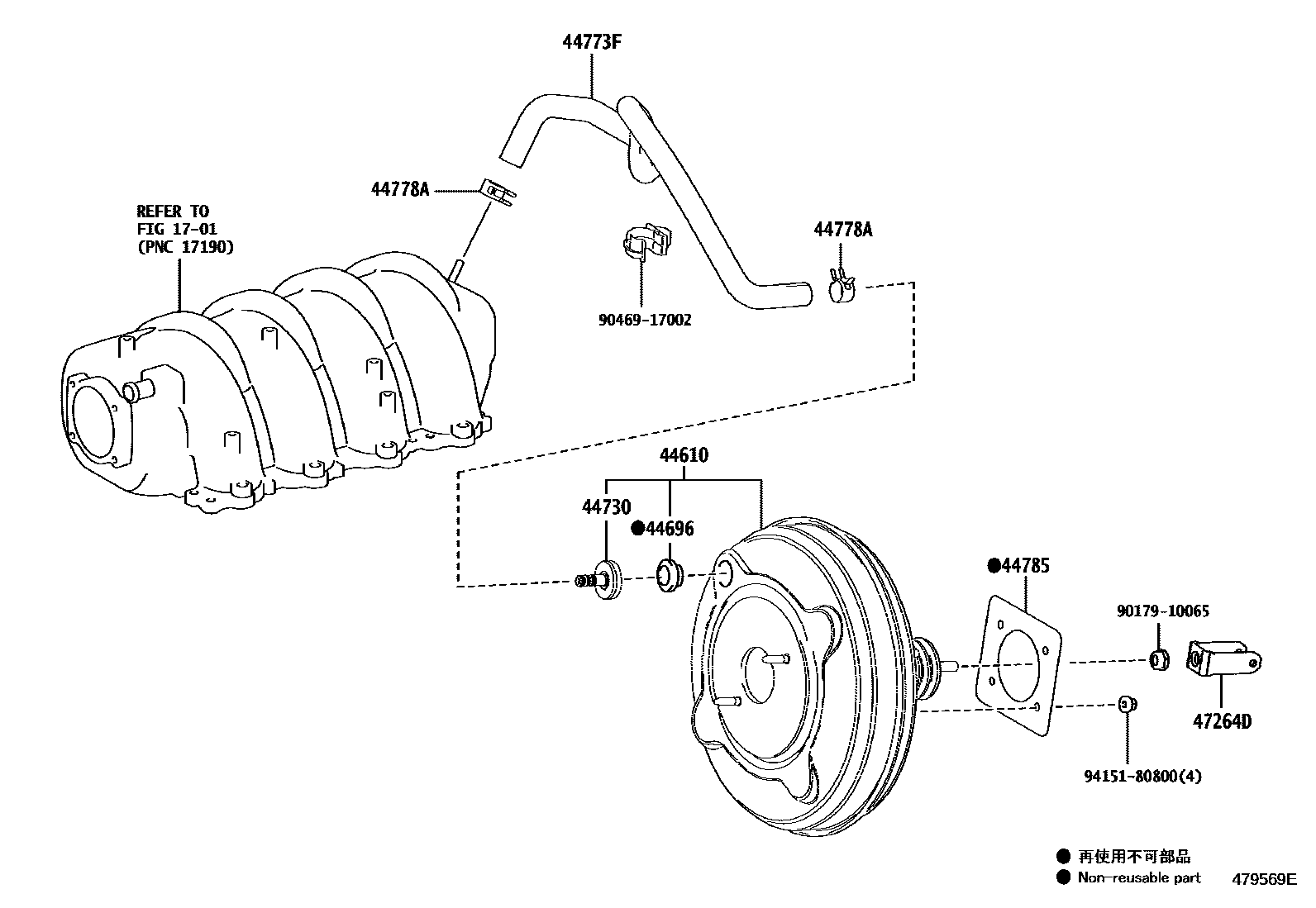

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-24140iUSC10..ARL¥41,800201409-201902

main44610-24150iUSC10..CHI201409-201902

main44610-24260iUSC10..ARL¥31,600201903-202412

main44610-24270iUSC10..LHD201903

44696GROMMET, CHECK VALVE

main90480-24015iUSC10..LHD¥130201409-202412

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iUSC10..CHI¥1,360201409-202412

44773FHOSE, UNION TO CHECK VALVE

main44773-24050iUSC10..ARL¥1,550201409-202412

main44773-24070iUSC10..LHD201409-202301

44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

main90467-16014iUSC10..CHI¥230201409-202412

44785GASKET, BRAKE BOOSTER

main44785-47010iUSC10..CHI¥250201409-202412

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iUSC10..CHI¥320201409-201902

main47264-33030iUSC10..ARL¥320201903-202412

9017910065

main90179-10065¥90

9046917002

main90469-17002¥180

9415180800

main94151-80800¥80

11 parts on this diagram · 3 diagrams in section
