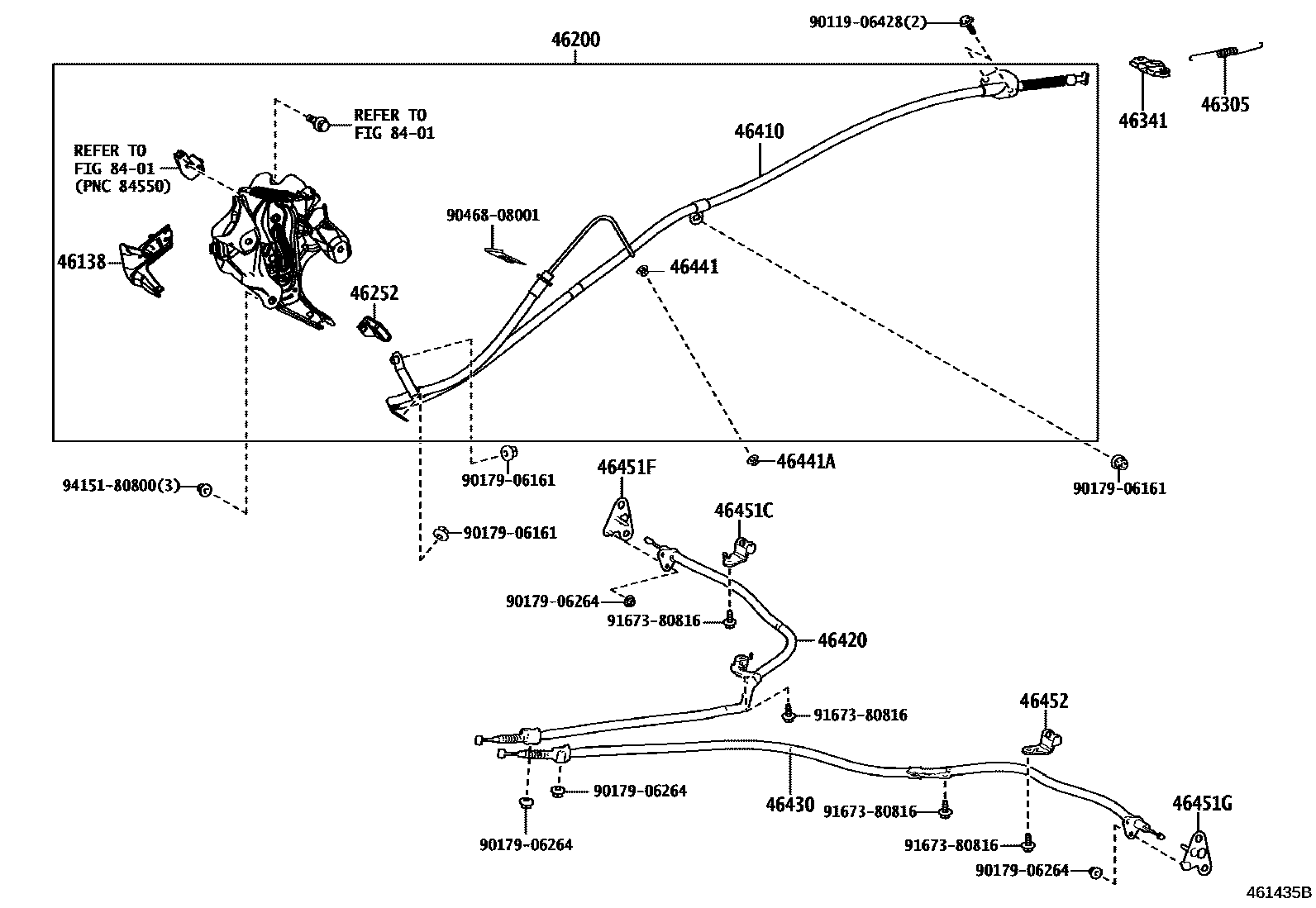

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46138PROTECTOR, PARKING BRAKE PEDAL BRACKET

main46138-53010iUSC10..CHI201409-202301

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-53010iUSC10..ARL¥15,700201409-202301

main46200-53060iUSC10..GCC,GEN201409-202301

46252PAD, PARKING PEDAL

main46252-47010iUSC10¥530201409-202301

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-53010iUSC10..ARL,GCC,GEN¥220201409-202301

46341EQUALIZER, PARKING BRAKE

main46341-22060iUSC10..CHI¥460201409-202301

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-53030iUSC10..ARL¥3,200201409-202301

main46410-53040iUSC10..GCC,GEN201409-202301

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-24110iUSC10¥3,080201409-202301

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-24110iUSC10..ARL,GCC,GEN¥3,080201409-202301

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iUSC10..CHI¥160201409-202301

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iUSC10..CHI¥70201409-202301

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-24010iUSC10..CHI¥310201409-202412

46451FBRACKET, CABLE SUPPORT

main46451-24030iUSC10..CHI¥430201409-202301

46451GBRACKET, CABLE SUPPORT

main46451-24030iUSC10..CHI¥430201409-202301

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-24020iUSC10..CHI¥310201409-202412

8401

9011906428

main90119-06428¥80

9017906161

main90179-06161¥70

9017906264

main90179-06264¥100

9046808001

main90468-08001¥210

9167380816

main91673-80816¥80

9415180800

main94151-80800¥80

21 parts on this diagram · 4 diagrams in section
