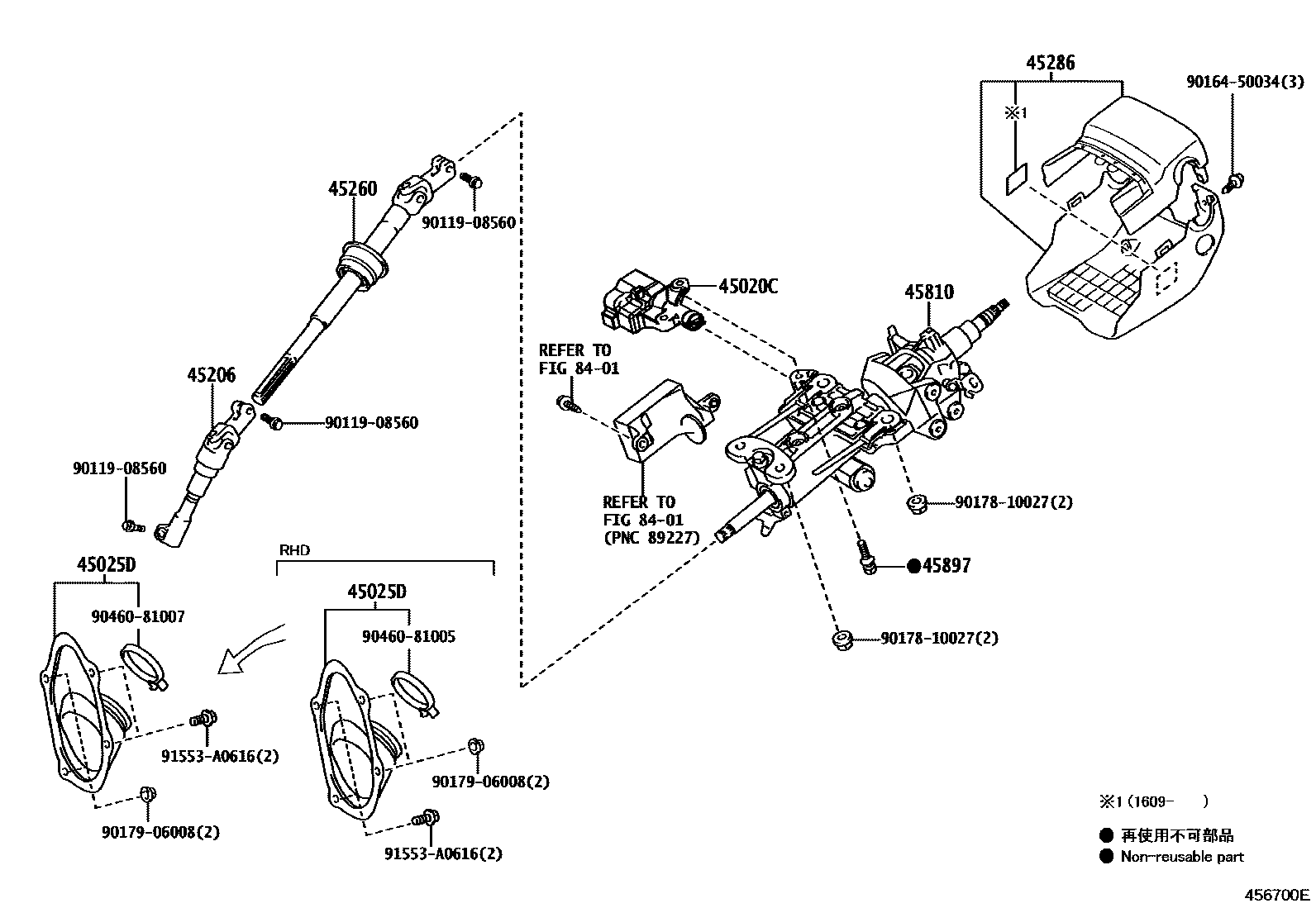

STEERING COLUMN & SHAFT

0001 1POWER TILT & TELESCOPIC 0002 1MANUAL TILT & TELESCOPIC

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B10iUSC10..ARL,GCC201409-202301

main45020-53040iUSC10..ARL,GCC201805-201902

MIDDLE & SOUTH AMERICA SPEC

main45020-53040iUSC10..GEN201805-201902

TAIWAN SPEC

main45020-53040iUSC10..GEN201805-201902

CHILE SPEC

main45020-53040iUSC10..ARL201903-202412

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iUSC10..ARL201409-202412

main45025-30390iUSC10..GCC,GEN201409-201902

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-24010iUSC10..ARL201409-202412

main45206-30200iUSC10..GCC,GEN201409-201902

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30220iUSC10..CHI201409-202412

45286COVER, STEERING COLUMN

main45286-53916-C0iUSC10..GCC201409-201609

BLACK,TRIM0#,2#,3#

main45286-53916-C0iUSC10..ARL,CHI,GEN201409-201609

BLACK,TRIM0#,1#,2#,3#

main45286-53925-C0iUSC10..CHI201609-201902

BLACK,TRIM0#,1#,2#,3#

main45286-53925-C0iUSC10..GCC201609-201902

BLACK,TRIM0#,2#,3#,4#

main45286-53925-C0iUSC10..GCC201609-201902

BLACK,TRIM0#,1#,2#,3#,8#

main45286-53925-C0iUSC10..ARL201903-202412

BLACK,TRIM0#,2#,3#

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-30230iUSC10..CHI201409-202412

45897BOLT, STEERING LOCK SET

main45897-12020iUSC10..CHI201409-202412

8401

9011908560

main90119-08560

9016450034

main90164-50034

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

9046081007

main90460-81007

91553A0616

main91553-A0616

15 parts on this diagram · 2 diagrams in section
