TELEPHONE & MAYDAY
86719ABRACKET, TELEPHONE NO.1
CHINA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
CHINA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
AUDIO-AM/FM DVD 12SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
AUDIO-AM/FM DVD 8SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
86719BBRACKET, TELEPHONE NO.2
CHINA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
CHINA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
AUDIO-AM/FM DVD 12SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
AUDIO-AM/FM DVD 8SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
86741ATRANSCEIVER, TELEMATICS
AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
sub86741-30071
CHINA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
sub86741-30071
CHINA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
sub86741-30071
AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
sub86741-30071
AUDIO-AM/FM DVD 12SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
sub86741-30071
AUDIO-AM/FM DVD 8SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
sub86741-30071
AUDIO-AM/FM DVD 8SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
AUDIO-AM/FM DVD 12SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION
86760ANTENNA ASSY, TELEPHONE
CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION,WHITE PEARL CS.,077
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,WHITE PEARL CS.,077
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,DK.GRAY MC.,1G0
CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION,DK.GRAY MC.,1G0
CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION,SILVER M.M.,1G1
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,SILVER M.M.,1G1
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,MERCURY GRAY MC.,1H9
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,PLATINUM SILVER ME.,1J4
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,BLACK,212
CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION,BLACK,212
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,STARLIGHT BLACK GF.,217
CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION,RED MC.CS.,3R1
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,RED MC.CS.,3R1
CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION,DK.BLUE MC. CC.,8U0
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,BLUE ME.,8U1
CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION,BLUE ME.,8U1
CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION,SILVERY BLUE ME.,8U9
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,SILVERY BLUE ME.,8U9
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,LAPIS LAZULI MC.,8V3
EMV & NAVIGATION SYSTEM-HDD NAVIGATION,CATTLEYA M.M.,9AL
CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION,CATTLEYA M.M.,9AL
8639647010NUT, ANTENNA
main86396-47010
9010506258
main90105-06258
9014850007
main90148-50007
9415180600
main94151-80600

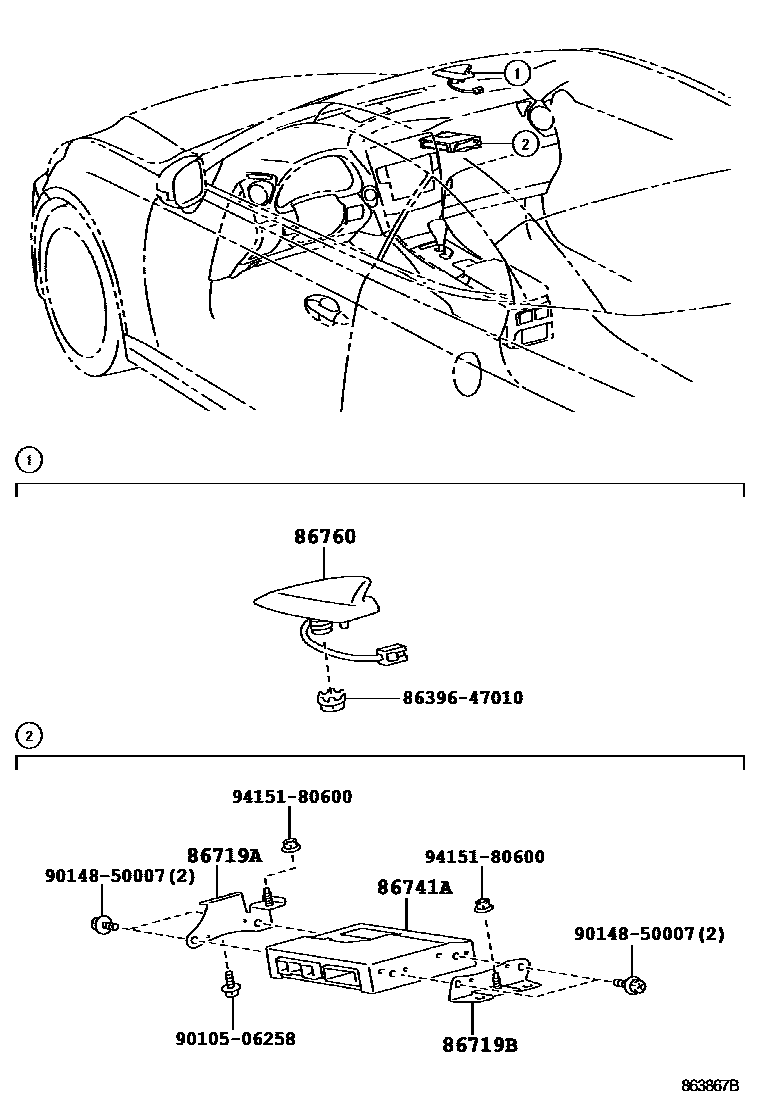

8 parts on this diagram · 1 diagram in section
