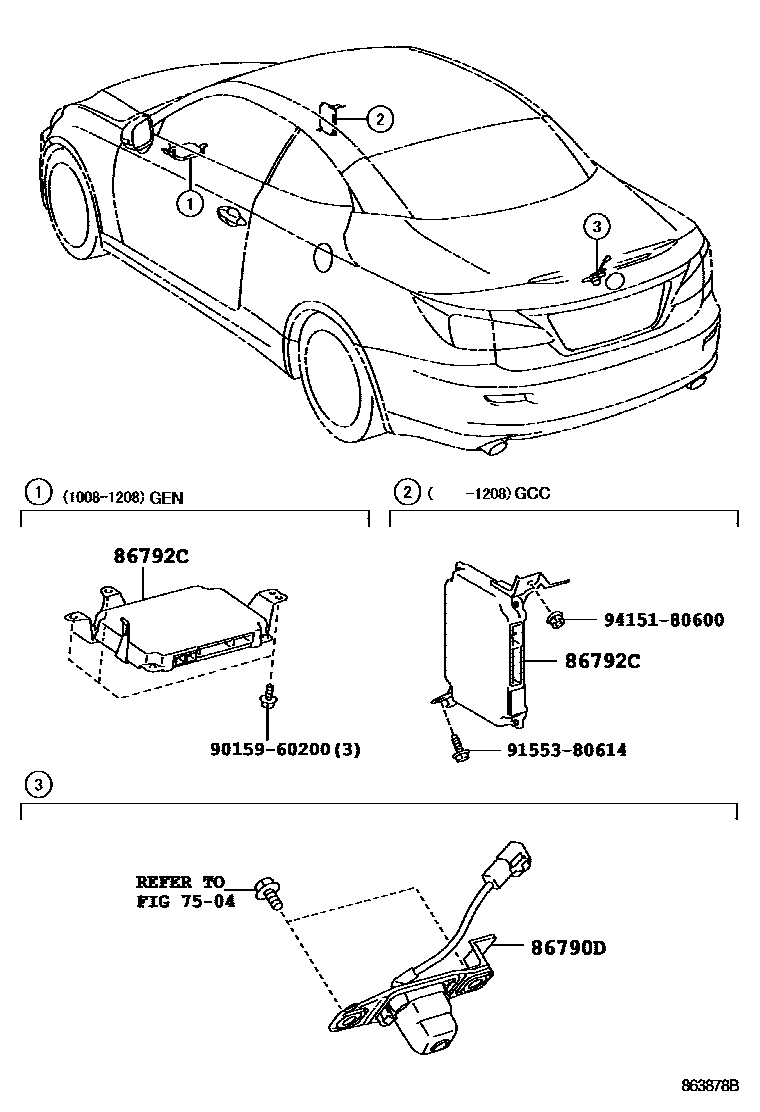

CAMERA & REAR MONITOR DISPLAY

7504

86790DCAMERA ASSY, TELEVISION, RR

main86790-53020iGSE22..GCC200904-201008

CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION

main86790-53021iGSE22..GCC201009-201208

BLUNEI SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

86792CCOMPUTER, PARKING ASSIST

main86792-53060iGSE22..GCC200904-201008

CHINA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION

main86792-53120iGSE22..GEN201008-201208

BLUNEI SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

main86792-53130iGSE22..GCC201008-201208

PHILIPPINE SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

9015960200

main90159-60200

9155380614

main91553-80614

9415180600

main94151-80600

6 parts on this diagram · 1 diagram in section
