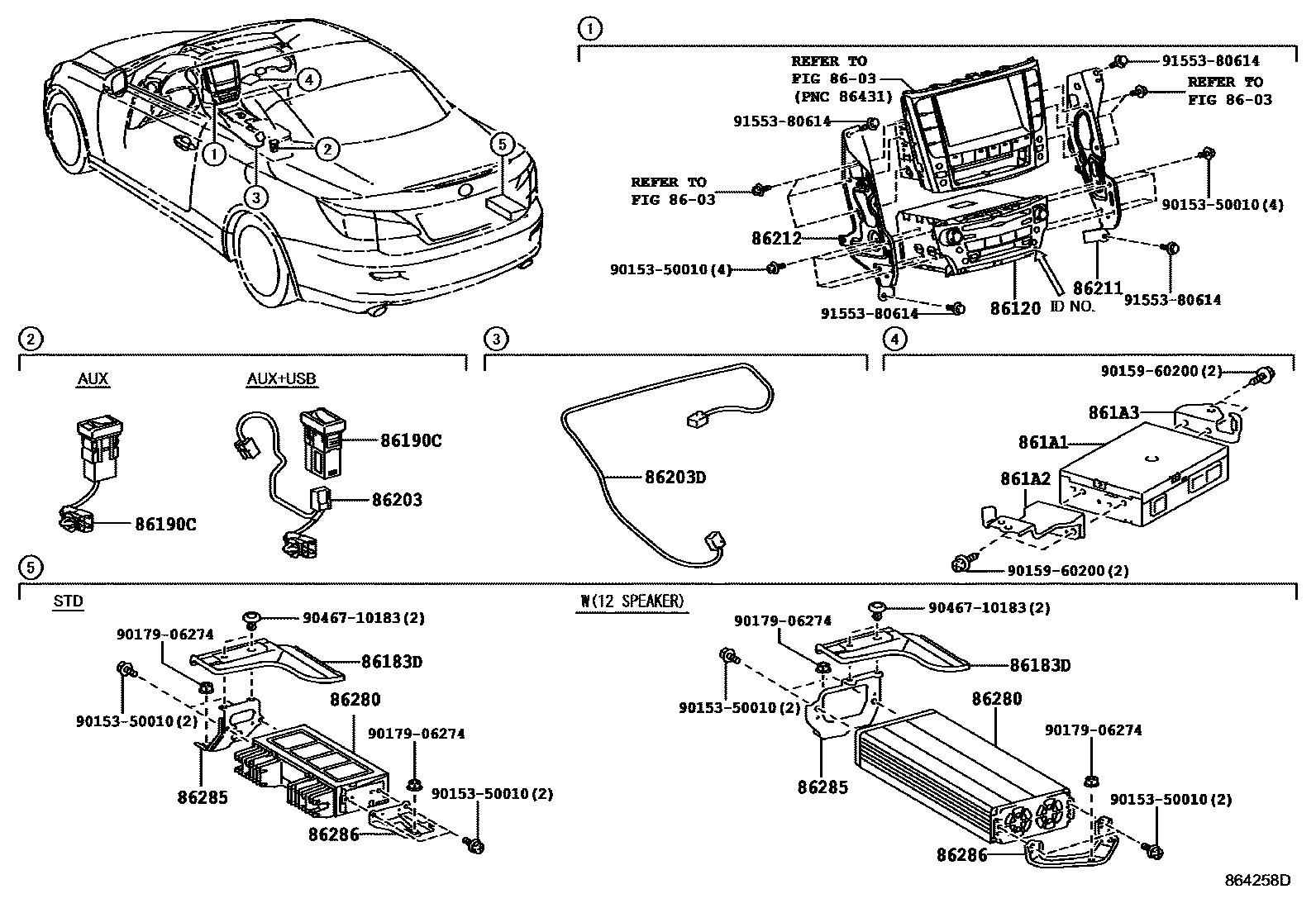

86120RECEIVER ASSY, RADIO

main86120-53560iGSE20201109-201507

PIONEER, ID=P10125

sub86120-53561

main86120-53670iGSE22..GCC201109-201507

PIONEER, ID=P10127

sub86120-53671

main86120-53A30iGSE22..GCC200904-201109

PIONEER, ID=P2876

sub86120-53A31

main86120-53B50iGSE20201008-201109

PIONEER, ID=P2881

main86120-53B80iGSE22..GEN200904-201109

PIONEER, ID=P2878

main86120-53F30iGSE22..GEN201109-201408

PIONEER, ID=P10124

sub86120-53F31

86183DCOVER, AUDIO AMPLIFIER

main86183-53010iGSE2#200904

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-53030iGSE22200904-200908

main86190-53040iGSE2#200908-201507

861A1COMPUTER, MULTI-MEDIA INTERFACE

main861A0-48030iGSE2#200908-201107

sub861A0-48031

861A2BRACKET, MULTI-MEDIA INTERFACE, NO.1

main861A2-53010iGSE2#..GCC200908

main861A2-53020iGSE22..GEN200908-201408

861A3BRACKET, MULTI-MEDIA INTERFACE, NO.2

main861A3-53010iGSE2#..GCC200908

main861A3-53020iGSE22..GEN200908-201408

86203WIRE, RADIO

main86203-53010iGSE2#200908-201507

86203DWIRE, STEREO COMPONENT, NO.1

main86203-53020iGSE2#..GCC200908-201507

main86203-53050iGSE22..GEN200908-201408

86211BRACKET, RADIO, NO.1

main86211-53030iGSE2#200904-201507

86212BRACKET, RADIO, NO.2

main86212-53030iGSE2#200904-201507

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-53120iGSE2#200904

sub86280-53121

86285BRACKET, AMPLIFIER, NO.1

main86285-53060iGSE2#200904

86286BRACKET, AMPLIFIER, NO.2

main86286-53060iGSE2#200904

9015350010

main90153-50010

9015960200

main90159-60200

9017906274

main90179-06274

9046710183

main90467-10183

9155380614

main91553-80614
