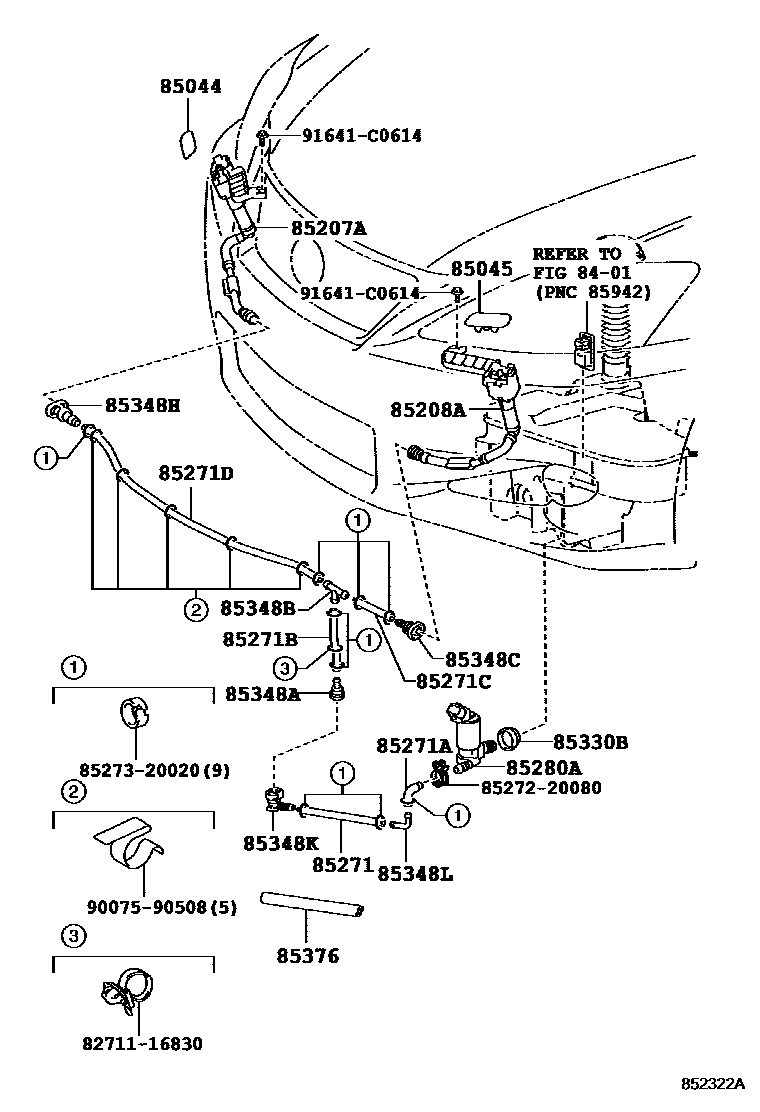

HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
WHITE PEARL CS.,077
DK.GRAY MC.,1G0
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
DK.BLUE MC. CC.,8U0
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
CATTLEYA M.M.,9AL
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
WHITE PEARL CS.,077
DK.GRAY MC.,1G0
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
DK.BLUE MC. CC.,8U0
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
CATTLEYA M.M.,9AL
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
F SPORT
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
F SPORT
85271HOSE, HEADLAMP CLEANER, NO.1
F SPORT
L=220
85271AHOSE, HEADLAMP CLEANER, NO.2
F SPORT
85271BHOSE, HEADLAMP CLEANER, NO.3
L=360,F SPORT
85271CHOSE, HEADLAMP CLEANER, NO.4
L=60
L=200,F SPORT
85271DHOSE, HEADLAMP CLEANER, NO.5
L=1200,F SPORT
L=1320(*H,L=815)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
F SPORT
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
F SPORT
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
F SPORT
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
F SPORT
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
F SPORT
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
F SPORT
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
9007590508
main90075-90508
91641C0614
main91641-C0614
24 parts on this diagram · 2 diagrams in section
