ABS & VSC

0001 1 0002 1

8401

86650KBUZZER ASSY, SKID CONTROL

main86652-50010iGSE22200904-201008

88263PRELAY, STOP LAMP CONTROL

main90987-04004iGSE2#200904-201507

89183ASENSOR, YAWRATE

main89180-53030iGSE2#200904

89516WIRE, SKID CONTROL SENSOR

main89516-30020iGSE2#200904-201203

RH

main89516-30030iGSE2#200904

LH

main89516-30150iGSE2#201204-201302

RH

main89516-53060iGSE2#201303

RH

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-53010iGSE2#200904

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-53020iGSE2#200904

89545SENSOR, SPEED, REAR RH

main89545-30070iGSE2#200904-201507

89546SENSOR, SPEED, REAR LH

main89546-30070iGSE2#200904-201507

9017906264

main90179-06264

9155180610

main91551-80610

91551A0616

main91551-A0616

9155380812

main91553-80812

91554A0612

main91554-A0612

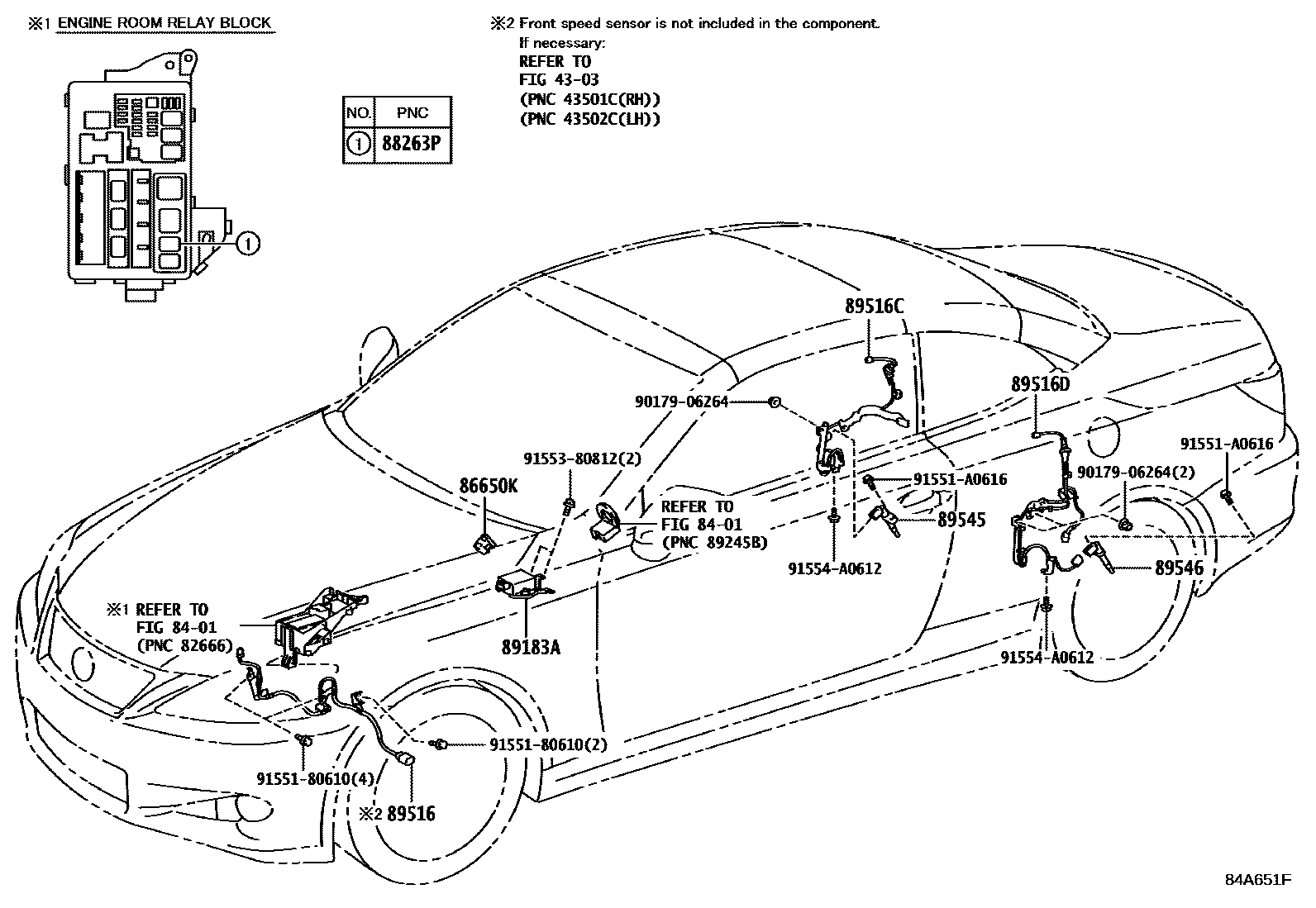

14 parts on this diagram · 2 diagrams in section
