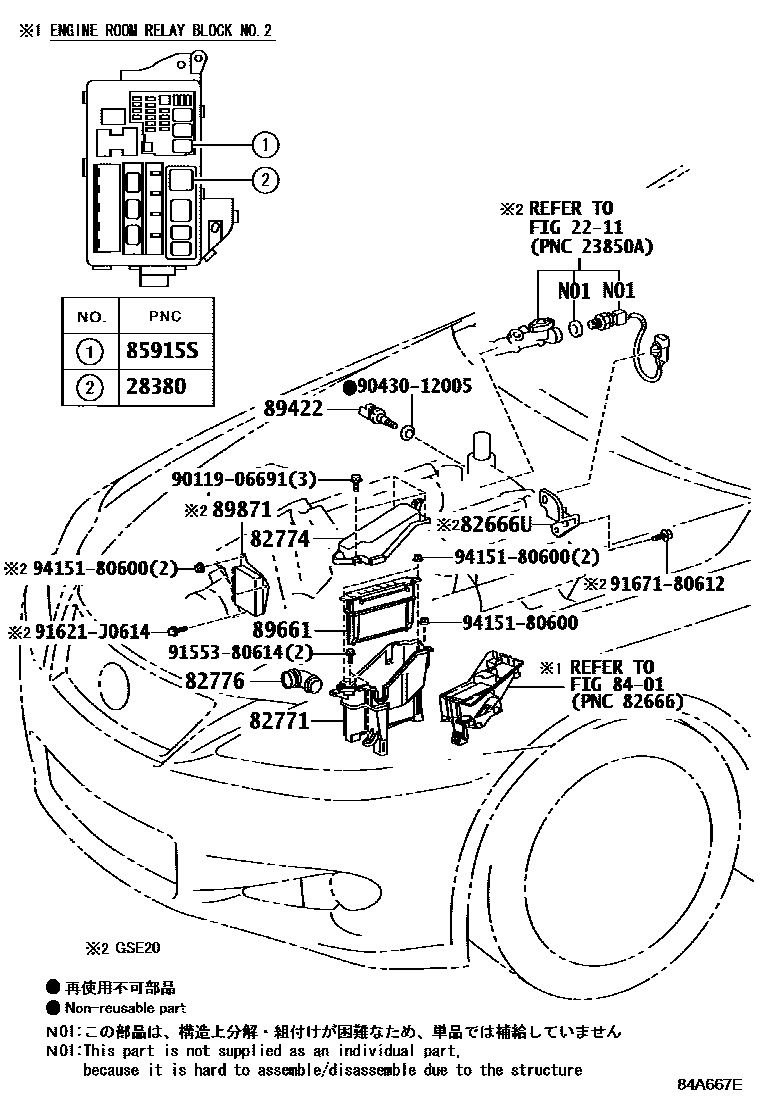

ELECTRONIC FUEL INJECTION SYSTEM

2211

28380RELAY ASSY, FUEL PUMP

main90987-03003i3GRFE,4GRFSE..GSE2#200904-201507

82666UHOLDER, CONNECTOR

main82666-30780iGSE20201008

82771BOX, ENGINE ROOM ECU

main82771-30040iGSE2#200904-201507

82774COVER, ENGINE ROOM ECU

main82774-30050iGSE2#200904

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-53040iGSE2#200904

8401

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGSE2#200904-201507

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSE2#200904

89661COMPUTER, ENGINE CONTROL

main89661-53E00iGSE22200904-201008

main89661-53K60iGSE20201008-201205

main89661-53L50iGSE22201008

main89661-53M90iGSE20201205-201405

sub89661-53M91

main89661-53M91iGSE20201406

89871DRIVER, INJECTOR

main89871-30030iGSE20201008-201110

sub89871-30031

main89871-30031iGSE20201111-201507

9011906691

main90119-06691

9043012005

main90430-12005

9155380614

main91553-80614

91621J0614

main91621-J0614

9167180612

main91671-80612

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
