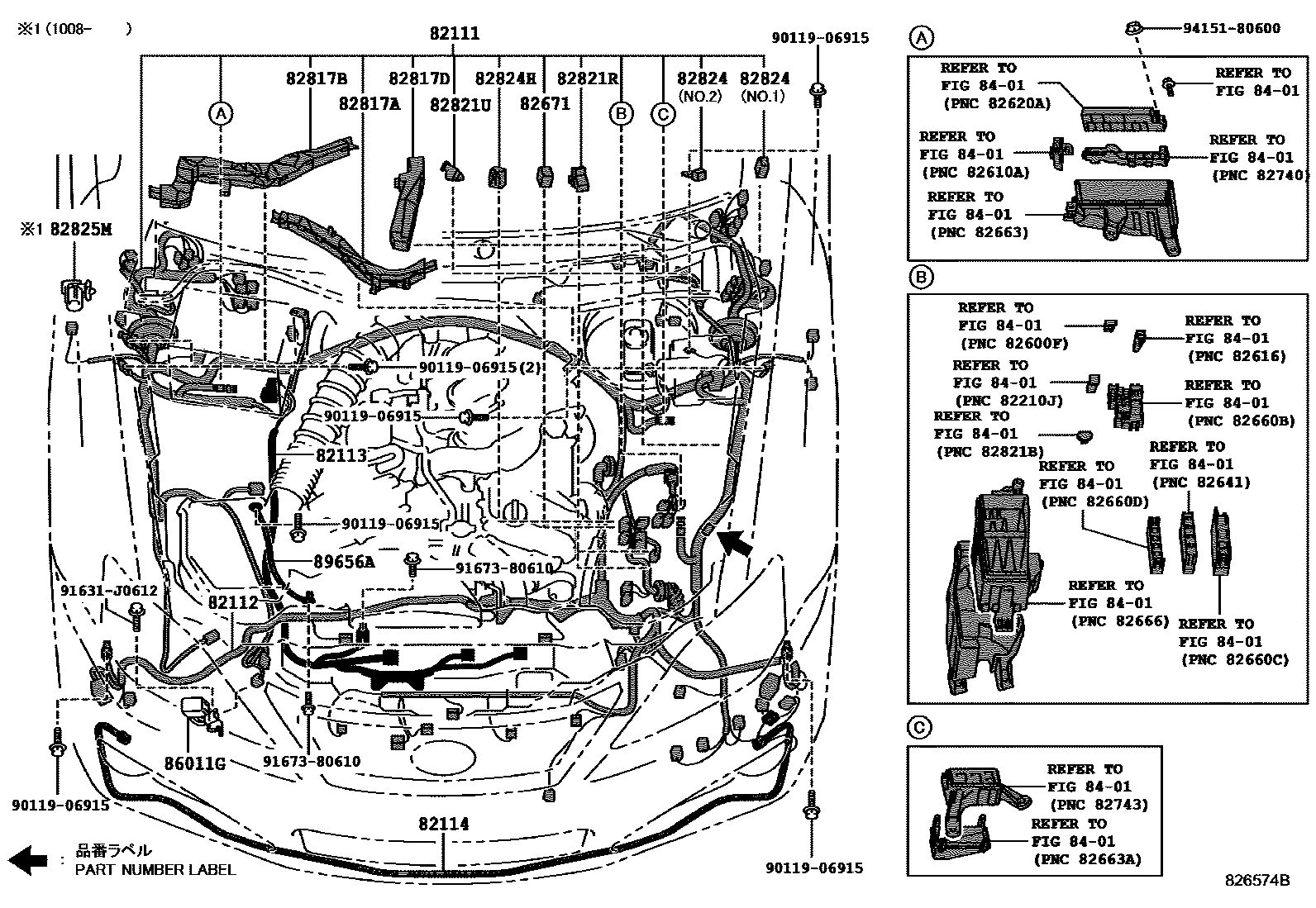

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0007 1ENGINE 0008 1ENGINE 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1DOOR,FLOOR & ROOF 0012 1SEAT 0013 1CLAMP & BRACKET 0014 1CABLE BOND 0015 1CONNECTOR 1/2 0016 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-53E01iGSE20201008-201208

main82111-53E02iGSE20201208

main82111-53E50iGSE22..GCC200904-201008

main82111-53E51iGSE22..GCC201008-201208

main82111-53E52iGSE22..GCC201208

main82111-53E60iGSE22..GCC200904-201008

ARGENTINE SPEC

main82111-53E60iGSE22..GCC200904-201008

PHILIPPINE SPEC

main82111-53E60iGSE22..GCC200904-201008

CHINA SPEC

main82111-53E61iGSE22..GCC201008-201208

PHILIPPINE SPEC

main82111-53E62iGSE22..GCC201208

PHILIPPINE SPEC

main82111-53F10iGSE22..GEN200904-201008

main82111-53F11iGSE22..GEN201008-201208

main82111-53F12iGSE22..GEN201208-201408

82112WIRE, ENGINE ROOM, NO.2

main82112-53200iGSE22¥47,800200904-201008

main82112-53201iGSE20¥42,500201008

main82112-53240iGSE22201008

82113WIRE, ENGINE ROOM, NO.3

main82113-53010iGSE22..GEN¥16,100200904-201408

main82113-53020iGSE2#..GCC200904

82114WIRE, ENGINE ROOM, NO.4

main82114-53050iGSE2#¥3,410200904-201507

82671BLOCK, JUNCTION

main82671-30340iGSE2#¥570200904

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-30B70iGSE2#..GCC200904

main82817-53150iGSE22..GEN¥2,550200904-201408

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-30A20iGSE22..GEN¥1,530200904-201408

main82817-53130iGSE2#..GCC200904

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-53190iGSE22..GEN¥1,320200904-201408

main82817-53200iGSE2#..GCC200904

82821RCOVER, CONNECTOR

main82821-30600iGSE2#¥60200904

82821UCOVER, CONNECTOR

main82821-22120iGSE20¥190201008

82824CONNECTOR, WIRING HARNESS

main82824-30130iGSE2#¥180200904

NO.1

main82824-48020iGSE2#¥1,990200904

NO.2

82824HCONNECTOR, WIRING HARNESS

main82824-28180iGSE2#¥530200904

82825MCONNECTOR, WIRING HARNESS

main89776-53020iGSE20201008

8401

86011GCONDENSER

main86516-53010iGSE2#¥7,400200904

89656AWIRE, POWER STEERING EARTH

main89656-30010iGSE2#¥1,420200904

9011906915

main90119-06915¥60

91631J0612

main91631-J0612¥110

9167380610

main91673-80610¥70

9415180600

main94151-80600¥60

20 parts on this diagram · 16 diagrams in section
