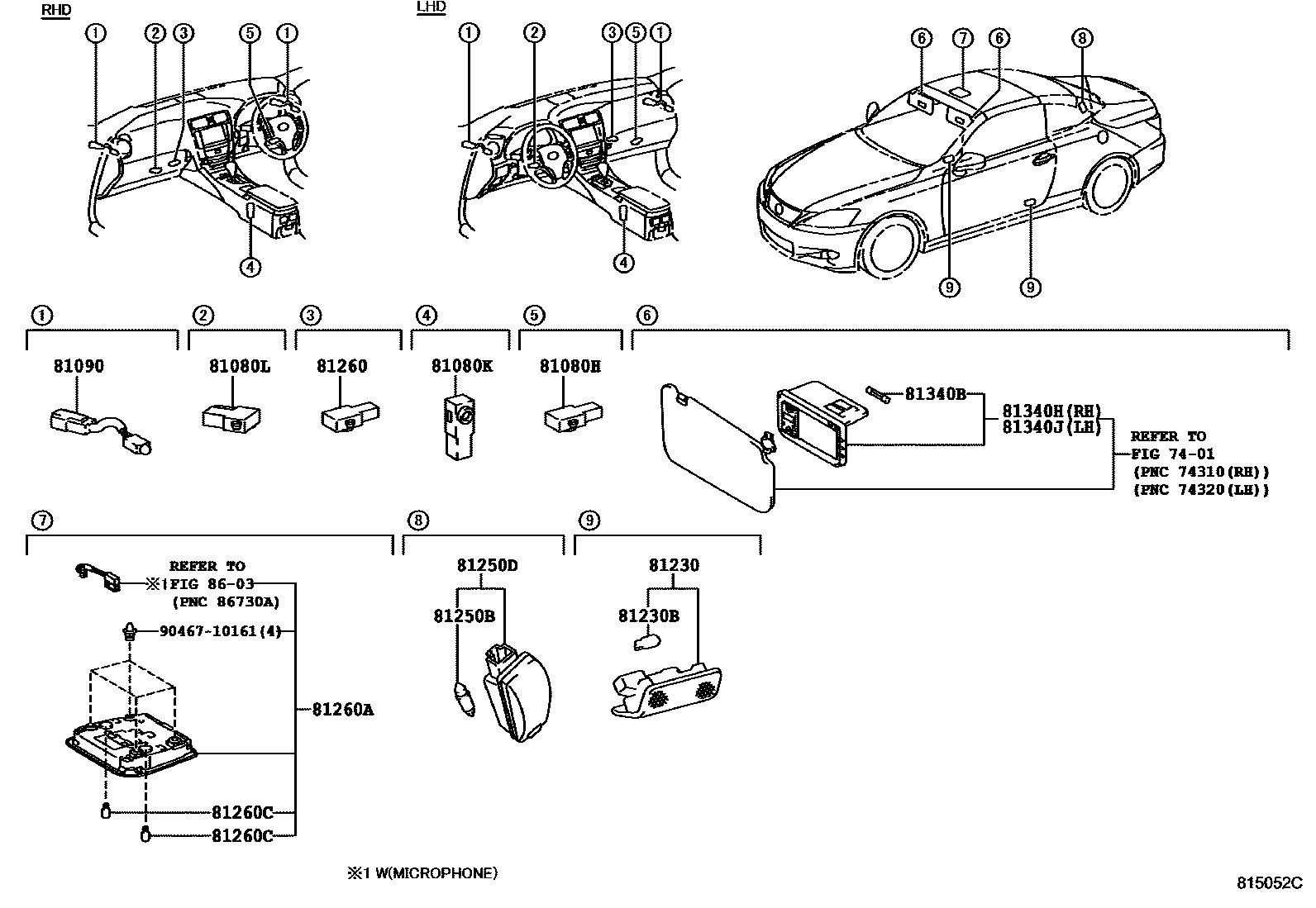

INTERIOR LAMP
7401
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81250BBULB, ROOM LAMP, NO.2
12V 5W
81250DLAMP ASSY, REAR ROOM, RH
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
LT.GRAY,TRIM1#,20,21,22,3#,4#
BLACK,TRIM23,39
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
81260CBULB(FOR MAP LAMP)
12V 5W
81340BBULB (FOR VANITY LAMP)
12V 1.5W
81340HLAMP ASSY, VANITY, RH
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
81340JLAMP ASSY, VANITY, LH
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
8603
9046710161
17 parts on this diagram · 1 diagram in section
