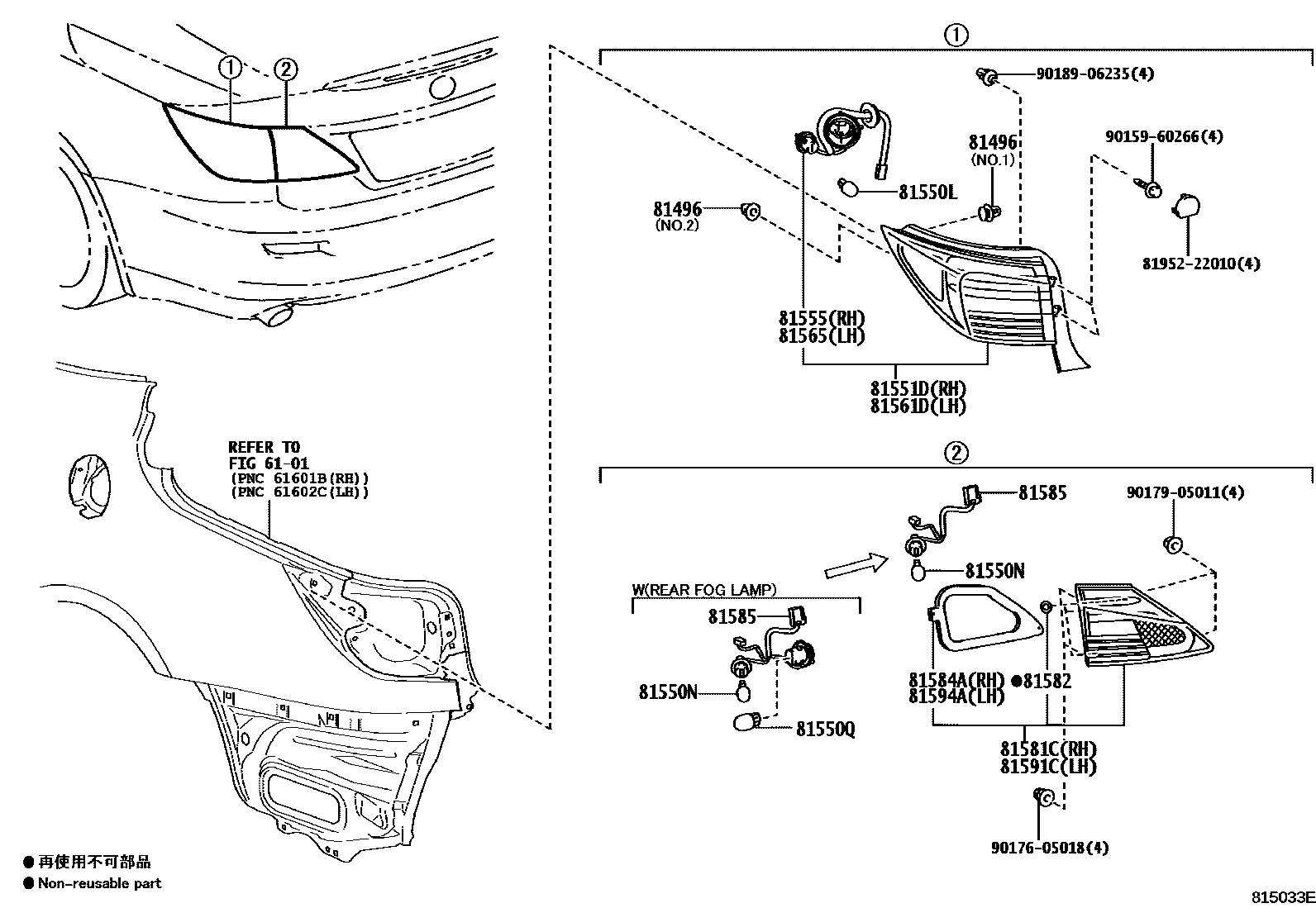

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-53010iGSE2#200904

NO.2

main81496-60010iGSE2#200904

NO.1

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iGSE2#200904-201507

81550NBULB, BACK UP LAMP

main90981-11059iGSE2#200904-201507

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iGSE20201008-201507

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-53230iGSE2#200904

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-53230iGSE2#200904

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-53200iGSE2#200904

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-53230iGSE2#200904

81581CLENS AND BODY, REAR LAMP, RH

main81581-53100iGSE20201008

main81581-53110iGSE22200904

81582GASKET, REAR LAMP

main81584-22040iGSE2#200904-201507

81584AGASKET, REAR LAMP RH

main81584-53110iGSE2#200904-201507

81585SOCKET & WIRE, REAR LAMP

main81585-53100iGSE20201008

main81585-53110iGSE22200904

81591CLENS, REAR LAMP, LH

main81591-53100iGSE20201008

main81591-53110iGSE22200904

81594AGASKET, REAR LAMP LH

main81594-53110iGSE2#200904-201507

8195222010SOCKET, FAILURE INDICATOR LAMP BULB

main81952-22010

9015960266

main90159-60266

9017605018

main90176-05018

9017905011

main90179-05011

9018906235

main90189-06235

20 parts on this diagram · 1 diagram in section
