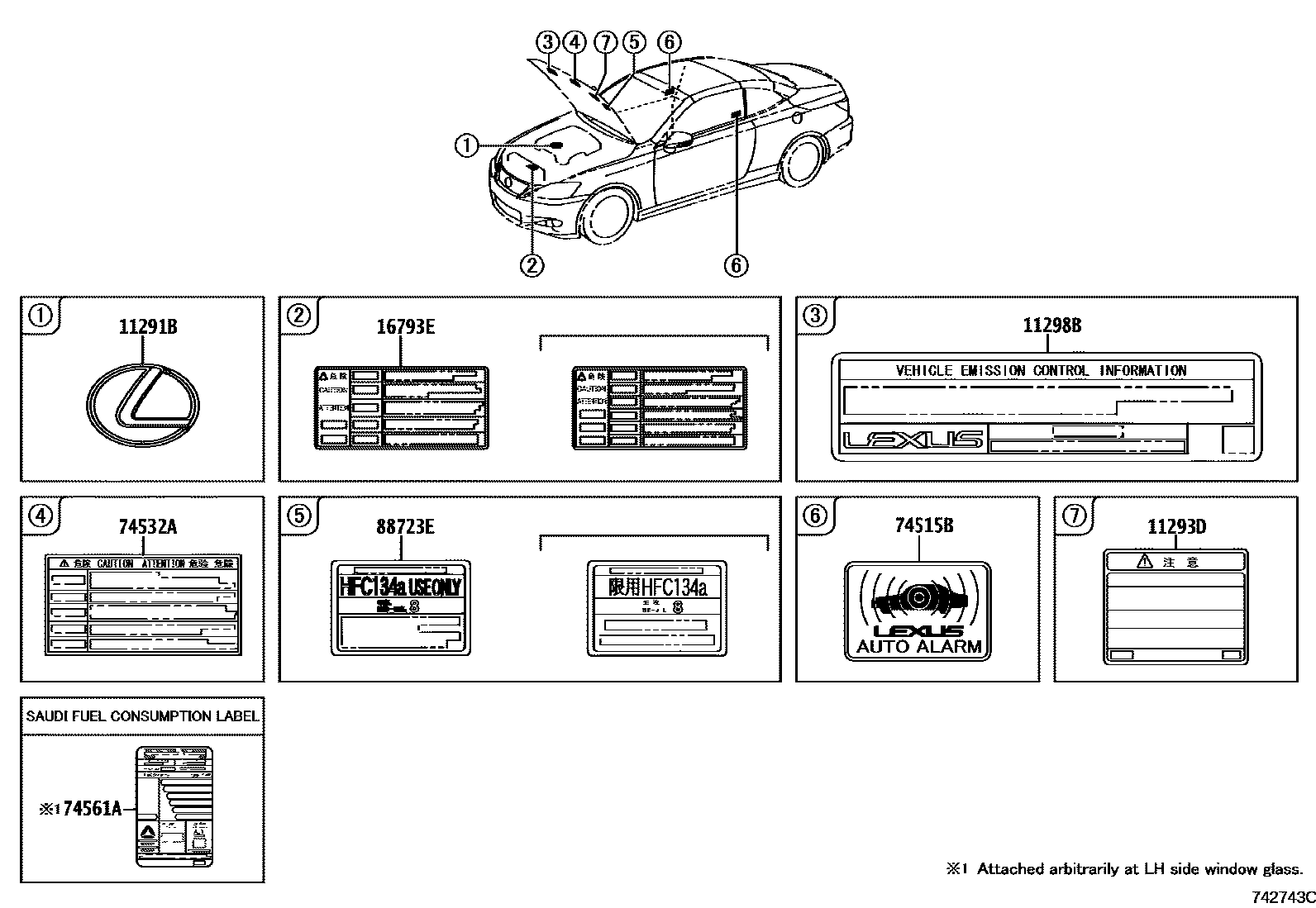

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11291BPLATE, ENGINE NAME

main11291-31040i3GRFE,4GRFSE..GSE2#200904-201507

11293DLABEL, ENGINE CAUTION

main11293-38060i4GRFSE..GSE20201008

11298BLABEL, EMISSION CONTROL INFORMATION

16793ELABEL, COOLING FAN CAUTION

main16793-28020i3GRFE,4GRFSE..GSE2#200904-201208

sub16793-36040

main16793-38010i3GRFE,4GRFSE..GSE2#201208-201507

sub16793-31070

74515BPLATE, THEFT WARNING

main74515-30040iGSE2#200904-201308

74532APLATE, CAUTION

main16793-28040iGSE22..GEN200904-201408

74561ALABEL, FUEL CONSUMPTION INFORMATION

88723ELABEL, COOLER SERVICE CAUTION

main88723-28220iGSE22200904

main88723-48070iGSE20201008

8 parts on this diagram · 2 diagrams in section
