EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

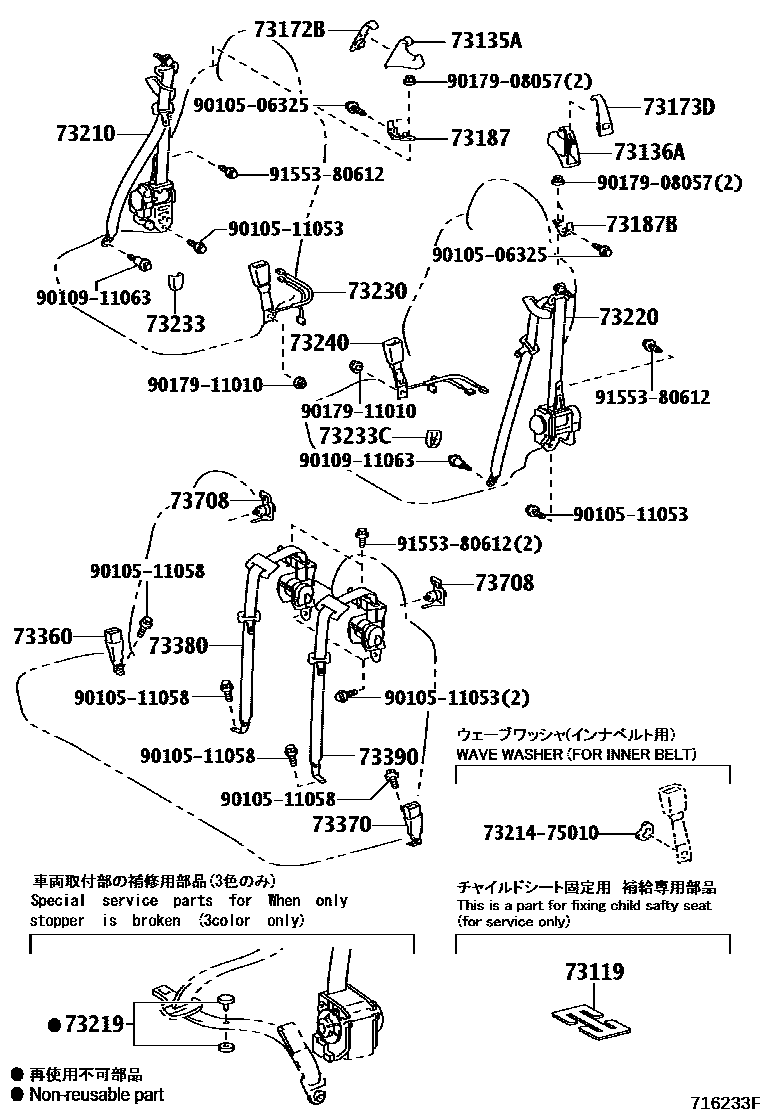

Parts diagram
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i201008
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73135-53040-A0i200904-201507
MELLOW WHITE,TRIM00,01,02,03,06,07
main73135-53040-A0i201008-201507
MELLOW WHITE,TRIM0#
main73135-53040-C0i201008-201507
BLACK,TRIM1#,2#,3#,4#
main73135-53040-C0i200904-201507
BLACK,TRIM04,05,08,1#,2#,3#,4#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73136-53030-A0i200904-201507
MELLOW WHITE,TRIM00,01,02,03,06,07
main73136-53030-A0i201008-201507
MELLOW WHITE,TRIM0#
main73136-53030-C0i200904-201507
BLACK,TRIM04,05,08,1#,2#,3#,4#
main73136-53030-C0i201008-201507
BLACK,TRIM1#,2#,3#,4#
73172BCAP, FRONT SHOULDER BELT HANGER, RH
main73172-53020i200908-201507
main73172-53020-A0i200904-200908
MELLOW WHITE,TRIM00,01,02,03,06,07
sub73172-53020
main73172-53020-C0i200904-200908
BLACK,TRIM04,05,08,2#
sub73172-53020
73173DCAP, FRONT SHOULDER BELT HANGER, LH
main73173-53020i200908-201507
main73173-53020-A0i200904-200908
MELLOW WHITE,TRIM00,01,02,03,06,07
sub73173-53020
main73173-53020-C0i200904-200908
BLACK,TRIM04,05,08,2#
sub73173-53020
73187GUIDE, FRONT SEAT SHOULDER BELT
main73187-53010i200908-201507
main73187-53010-A0i200904-200908
MELLOW WHITE,TRIM00,01,02,03,06,07
sub73187-53010
main73187-53010-C0i200904-200908
BLACK,TRIM04,05,08,2#
sub73187-53010
73187BGUIDE, FRONT SEAT SHOULDER BELT
main73187-53020i200908-201507
main73187-53020-A0i200904-200908
MELLOW WHITE,TRIM00,01,02,03,06,07
sub73187-53020
main73187-53020-C0i200904-200908
BLACK,TRIM04,05,08,2#
sub73187-53020
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-53260-A0i200904-201007
PHILIPPINE SPEC,MELLOW WHITE,TRIM0#
sub73210-53263
main73210-53260-A0i200904-201007
MELLOW WHITE,TRIM0#
sub73210-53263
main73210-53260-A0i200908-201007
MOROCCO SPEC,MELLOW WHITE,TRIM0#
sub73210-53263
main73210-53260-A0i200904-201007
ARGENTINE SPEC,MELLOW WHITE,TRIM0#
sub73210-53263
main73210-53260-C0i200904-201007
BLACK,TRIM1#,2#,3#,4#
sub73210-53263
main73210-53260-C0i200904-201007
PHILIPPINE SPEC,BLACK,TRIM1#,2#,3#,4#
sub73210-53263
main73210-53260-C0i200904-201007
ARGENTINE SPEC,BLACK,TRIM1#,2#,3#,4#
sub73210-53263
main73210-53260-C0i200908-201007
MOROCCO SPEC,BLACK,TRIM1#,2#,3#,4#
sub73210-53263
main73210-53261-A0i201008-201302
PHILIPPINE SPEC,MELLOW WHITE,TRIM0#
sub73210-53262
main73210-53261-A0i201008-201302
MELLOW WHITE,TRIM0#
sub73210-53262
main73210-53261-A0i201008-201208
MOROCCO SPEC,MELLOW WHITE,TRIM0#
sub73210-53262
main73210-53261-C0i201008-201302
BLACK,TRIM1#,2#,3#,4#
sub73210-53262
main73210-53261-C0i201008-201302
PHILIPPINE SPEC,BLACK,TRIM1#,2#,3#,4#
sub73210-53262
main73210-53261-C0i201008-201208
MOROCCO SPEC,BLACK,TRIM1#,2#,3#,4#
sub73210-53262
main73210-53262-A0i201303-201307
MELLOW WHITE,TRIM0#
sub73210-53263
main73210-53262-A0i201303-201307
PHILIPPINE SPEC,MELLOW WHITE,TRIM0#
sub73210-53263
main73210-53262-C0i201303-201307
PHILIPPINE SPEC,BLACK,TRIM1#,2#,3#,4#
sub73210-53263
main73210-53262-C0i201303-201307
BLACK,TRIM1#,2#,3#,4#
sub73210-53263
main73210-53263-A0i201308-201408
MELLOW WHITE,TRIM0#
main73210-53263-A0i201308-201507
PHILIPPINE SPEC,MELLOW WHITE,TRIM0#
main73210-53263-C0i201308-201507
PHILIPPINE SPEC,BLACK,TRIM1#,2#,3#,4#
main73210-53263-C0i201308-201408
BLACK,TRIM1#,2#,3#,4#
main73210-53300-A0i200904-201507
MELLOW WHITE,TRIM0#
main73210-53300-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
main73210-53320-A0i200904-201008
CHINA SPEC,MELLOW WHITE,TRIM0#
main73210-53320-A0i201008-201507
MELLOW WHITE,TRIM0#
main73210-53320-C0i201008-201507
BLACK,TRIM1#,2#,3#,4#
main73210-53320-C0i200904-201008
CHINA SPEC,BLACK,TRIM2#
main73210-53330-A0i201008-201507
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),MELLOW WHITE,TRIM0#
main73210-53330-A0i200904-201008
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),MELLOW WHITE,TRIM0#
main73210-53330-C0i201008-201507
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),BLACK,TRIM1#,2#,3#,4#
main73210-53330-C0i200904-201008
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),BLACK,TRIM2#
main73210-53340-A0i200904-201507
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),MELLOW WHITE,TRIM0#
main73210-53340-C0i200904-201507
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),BLACK,TRIM1#,2#,3#,4#
73219STOPPER, TONGUE PLATE
main73219-33010i200904
BLACK
main73219-33020i200904
GRAY
main73219-33030i200904
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-53190-A0i200904-201007
PHILIPPINE SPEC,MELLOW WHITE,TRIM0#
sub73220-53193
main73220-53190-A0i200904-201007
ARGENTINE SPEC,MELLOW WHITE,TRIM0#
sub73220-53193
main73220-53190-A0i200904-201007
MELLOW WHITE,TRIM0#
sub73220-53193
main73220-53190-A0i200908-201007
MOROCCO SPEC,MELLOW WHITE,TRIM0#
sub73220-53193
main73220-53190-C0i200904-201007
ARGENTINE SPEC,BLACK,TRIM1#,2#,3#,4#
sub73220-53193
main73220-53190-C0i200904-201007
BLACK,TRIM1#,2#,3#,4#
sub73220-53193
main73220-53190-C0i200904-201007
PHILIPPINE SPEC,BLACK,TRIM1#,2#,3#,4#
sub73220-53193
main73220-53190-C0i200908-201007
MOROCCO SPEC,BLACK,TRIM1#,2#,3#,4#
sub73220-53193
main73220-53191-A0i201008-201302
PHILIPPINE SPEC,MELLOW WHITE,TRIM0#
sub73220-53192
main73220-53191-A0i201008-201302
MELLOW WHITE,TRIM0#
sub73220-53192
main73220-53191-A0i201008-201208
MOROCCO SPEC,MELLOW WHITE,TRIM0#
sub73220-53192
main73220-53191-C0i201008-201302
PHILIPPINE SPEC,BLACK,TRIM1#,2#,3#,4#
sub73220-53192
main73220-53191-C0i201008-201302
BLACK,TRIM1#,2#,3#,4#
sub73220-53192
main73220-53191-C0i201008-201208
MOROCCO SPEC,BLACK,TRIM1#,2#,3#,4#
sub73220-53192
main73220-53192-A0i201303-201307
PHILIPPINE SPEC,MELLOW WHITE,TRIM0#
sub73220-53193
main73220-53192-A0i201303-201307
MELLOW WHITE,TRIM0#
sub73220-53193
main73220-53192-C0i201303-201307
BLACK,TRIM1#,2#,3#,4#
sub73220-53193
main73220-53192-C0i201303-201307
PHILIPPINE SPEC,BLACK,TRIM1#,2#,3#,4#
sub73220-53193
main73220-53193-A0i201308-201507
PHILIPPINE SPEC,MELLOW WHITE,TRIM0#
main73220-53193-A0i201308-201408
MELLOW WHITE,TRIM0#
main73220-53193-C0i201308-201408
BLACK,TRIM1#,2#,3#,4#
main73220-53193-C0i201308-201507
PHILIPPINE SPEC,BLACK,TRIM1#,2#,3#,4#
main73220-53230-A0i200904-201507
MELLOW WHITE,TRIM0#
main73220-53230-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
main73220-53240-A0i200904-201008
CHINA SPEC,MELLOW WHITE,TRIM0#
main73220-53240-A0i201008-201507
MELLOW WHITE,TRIM0#
main73220-53240-C0i201008-201507
BLACK,TRIM1#,2#,3#,4#
main73220-53240-C0i200904-201008
CHINA SPEC,BLACK,TRIM2#
main73220-53250-A0i201008-201507
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),MELLOW WHITE,TRIM0#
main73220-53250-A0i200904-201008
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),MELLOW WHITE,TRIM0#
main73220-53250-C0i201008-201507
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),BLACK,TRIM1#,2#,3#,4#
main73220-53250-C0i200904-201008
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),BLACK,TRIM2#
main73220-53260-A0i200904-201507
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),MELLOW WHITE,TRIM0#
main73220-53260-C0i200904-201507
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),BLACK,TRIM1#,2#,3#,4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-53250-A2i200904-201008
ARGENTINE SPEC,MELLOW WHITE,TRIM0#
main73230-53250-A2i200904-201507
PHILIPPINE SPEC,MELLOW WHITE,TRIM0#
main73230-53250-A2i200908-201208
MOROCCO SPEC,MELLOW WHITE,TRIM0#
main73230-53250-A2i201008-201507
MELLOW WHITE,TRIM0#
main73230-53250-A2i200904-201008
CHINA SPEC,MELLOW WHITE,TRIM0#
main73230-53250-C2i200904-201008
ARGENTINE SPEC,BLACK,TRIM2#
main73230-53250-C2i200904-201008
CHINA SPEC,BLACK,TRIM2#
main73230-53250-C2i200908-201208
MOROCCO SPEC,BLACK,TRIM2#
main73230-53250-C2i200904-201507
PHILIPPINE SPEC,BLACK,TRIM2#
main73230-53250-C2i201008-201507
BLACK,TRIM2#
main73230-53260-A1i200904-201008
LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53260-A1i200904-201408
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53260-A1i201008-201108
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53260-C1i200904-201008
LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53260-C1i201008-201108
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53260-C1i200904-201408
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53270-A1i200904-201008
ARGENTINE SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53270-A1i200904-201008
PHILIPPINE SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53270-A1i200904-201008
CHINA SPEC&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53270-A1i200904-201008
CHINA SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53270-A1i200904-201008
ARGENTINE SPEC&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53270-A1i200908-201208
MOROCCO SPEC&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53270-A1i200904-201507
PHILIPPINE SPEC&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53270-A1i201008-201108
MOROCCO SPEC&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53270-A1i201008-201108
PHILIPPINE SPEC&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53270-A1i201008-201108
FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53270-A1i200908-201008
MOROCCO SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53270-A1i201008-201507
FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53270-C1i200904-201008
PHILIPPINE SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i200904-201008
CHINA SPEC&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i200904-201008
CHINA SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i200904-201008
ARGENTINE SPEC&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i200904-201008
ARGENTINE SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i200908-201008
MOROCCO SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i201008-201108
FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i201008-201108
PHILIPPINE SPEC&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i201008-201108
MOROCCO SPEC&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i200908-201208
MOROCCO SPEC&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i200904-201507
PHILIPPINE SPEC&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53270-C1i201008-201507
FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53310-A1i200904-201507
MELLOW WHITE,TRIM0#
main73230-53310-C1i200904-201507
BLACK,TRIM2#
main73230-53330-A1i201208-201507
FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),MELLOW WHITE,TRIM0#
main73230-53330-A1i200904-201507
FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53330-A1i201008-201108
FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53330-A1i200904-201008
FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53330-C1i200904-201008
FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53330-C1i201008-201108
FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53330-C1i200904-201507
FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53330-C1i201208-201507
FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK,TRIM1#,2#,3#,4#
main73230-53400-A0i200904-201408
MELLOW WHITE,TRIM0#
main73230-53400-C0i200904-201408
BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-52010-A5i200904-201507
MELLOW WHITE,TRIM0#
sub73233-60020
sub73233-0C010
main73233-52010-C0i200904-201008
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),BLACK,TRIM2#
sub73233-60020
sub73233-0C010
main73233-52010-C0i200904-201008
CHINA SPEC,BLACK,TRIM2#
sub73233-60020
sub73233-0C010
main73233-52010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
sub73233-60020
sub73233-0C010
73233CCOVER, LAP BELT OUTER ANCHOR, LH
main73233-52010-A5i200904-201507
MELLOW WHITE,TRIM0#
sub73233-60020
sub73233-0C010
main73233-52010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
sub73233-60020
sub73233-0C010
main73233-52010-C0i200904-201008
CHINA SPEC,BLACK,TRIM2#
sub73233-60020
sub73233-0C010
main73233-52010-C0i200904-201008
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),BLACK,TRIM2#
sub73233-60020
sub73233-0C010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-53250-A2i200904-201408
MELLOW WHITE,TRIM0#
main73230-53250-C2i200904-201408
BLACK,TRIM2#
main73230-53280-A1i200904-201008
ARGENTINE SPEC&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53280-A1i200904-201008
ARGENTINE SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53280-A1i200904-201008
PHILIPPINE SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53280-A1i200904-201008
CHINA SPEC&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53280-A1i200904-201008
CHINA SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53280-A1i200908-201008
MOROCCO SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53280-A1i201008-201108
FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53280-A1i201008-201108
PHILIPPINE SPEC&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53280-A1i201008-201108
MOROCCO SPEC&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53280-A1i200908-201208
MOROCCO SPEC&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53280-A1i200904-201507
PHILIPPINE SPEC&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53280-A1i201008-201507
FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53280-C1i200904-201008
CHINA SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i200904-201008
ARGENTINE SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i200904-201008
PHILIPPINE SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i200904-201008
CHINA SPEC&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i200904-201008
ARGENTINE SPEC&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i200908-201008
MOROCCO SPEC&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i201008-201108
FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i201008-201108
PHILIPPINE SPEC&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i201008-201108
MOROCCO SPEC&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i200908-201208
MOROCCO SPEC&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i200904-201507
PHILIPPINE SPEC&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53280-C1i201008-201507
FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53320-A1i201208-201507
FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),MELLOW WHITE,TRIM0#
main73230-53320-A1i200904-201008
FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53320-A1i201008-201108
FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53320-A1i200904-201507
FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53320-C1i201208-201507
FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK,TRIM1#,2#,3#,4#
main73230-53320-C1i201008-201108
FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53320-C1i200904-201008
FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53320-C1i200904-201507
FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53350-A0i200904-201008
LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53350-A0i201008-201108
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
main73230-53350-A0i200904-201408
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main73230-53350-C0i201008-201108
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53350-C0i200904-201408
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main73230-53350-C0i200904-201008
LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2#,3#,4#
main73230-53390-A0i200904-201507
MELLOW WHITE,TRIM0#
main73230-53390-C0i200904-201507
BLACK,TRIM2#
main73230-53400-A0i200904-201008
ARGENTINE SPEC,MELLOW WHITE,TRIM0#
main73230-53400-A0i200904-201008
CHINA SPEC,MELLOW WHITE,TRIM0#
main73230-53400-A0i200904-201507
PHILIPPINE SPEC,MELLOW WHITE,TRIM0#
main73230-53400-A0i201008-201507
MELLOW WHITE,TRIM0#
main73230-53400-A0i200908-201208
MOROCCO SPEC,MELLOW WHITE,TRIM0#
main73230-53400-C0i200904-201008
ARGENTINE SPEC,BLACK,TRIM2#
main73230-53400-C0i201008-201507
BLACK,TRIM2#
main73230-53400-C0i200904-201008
CHINA SPEC,BLACK,TRIM2#
main73230-53400-C0i200908-201208
MOROCCO SPEC,BLACK,TRIM2#
main73230-53400-C0i200904-201507
PHILIPPINE SPEC,BLACK,TRIM2#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73380-53040-A0i200904-201507
MELLOW WHITE,TRIM0#
main73380-53040-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73480-53030-A0i200904-201507
MELLOW WHITE,TRIM0#
main73480-53030-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73360-53110-A0i200904-201007
MELLOW WHITE,TRIM0#
sub73360-53111
main73360-53110-C0i200904-201007
BLACK,TRIM1#,2#,3#,4#
sub73360-53111
main73360-53120-A0i201008-201208
MELLOW WHITE,TRIM0#
main73360-53120-A0i200904-201008
CHINA SPEC,MELLOW WHITE,TRIM0#
main73360-53120-C0i201008-201208
BLACK,TRIM1#,2#,3#,4#
main73360-53120-C0i200904-201008
CHINA SPEC,BLACK,TRIM2#
main73360-53121-A0i201208-201507
MELLOW WHITE,TRIM0#
main73360-53121-C0i201208-201507
BLACK,TRIM1#,2#,3#,4#
main73360-53190-A0i201008-201307
MELLOW WHITE,TRIM0#
sub73360-53191
main73360-53190-C0i201008-201307
BLACK,TRIM1#,2#,3#,4#
sub73360-53191
main73360-53191-A0i201308-201507
MELLOW WHITE,TRIM0#
main73360-53191-C0i201308-201507
BLACK,TRIM1#,2#,3#,4#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73370-53030-A0i200904-201007
MELLOW WHITE,TRIM0#
sub73370-53031
main73370-53030-C0i200904-201007
BLACK,TRIM1#,2#,3#,4#
sub73370-53031
main73370-53040-A0i200904-201008
CHINA SPEC,MELLOW WHITE,TRIM0#
main73370-53040-A0i201008-201208
MELLOW WHITE,TRIM0#
main73370-53040-C0i201008-201208
BLACK,TRIM1#,2#,3#,4#
main73370-53040-C0i200904-201008
CHINA SPEC,BLACK,TRIM2#
main73370-53041-A0i201208-201507
MELLOW WHITE,TRIM0#
main73370-53041-C0i201208-201507
BLACK,TRIM1#,2#,3#,4#
main73370-53110-A0i201008-201307
MELLOW WHITE,TRIM0#
sub73370-53111
main73370-53110-C0i201008-201307
BLACK,TRIM1#,2#,3#,4#
sub73370-53111
main73370-53111-A0i201308-201507
MELLOW WHITE,TRIM0#
main73370-53111-C0i201308-201507
BLACK,TRIM1#,2#,3#,4#
73708BRACKET SET, TETHER ANCHOR
main73708-53030i200904
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010506325
main90105-06325
9010511053
main90105-11053
9010511058
main90105-11058
9010911063
main90109-11063
9017908057
main90179-08057
9017911010
main90179-11010
9155380612
main91553-80612

27 parts on this diagram · 1 diagram in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
