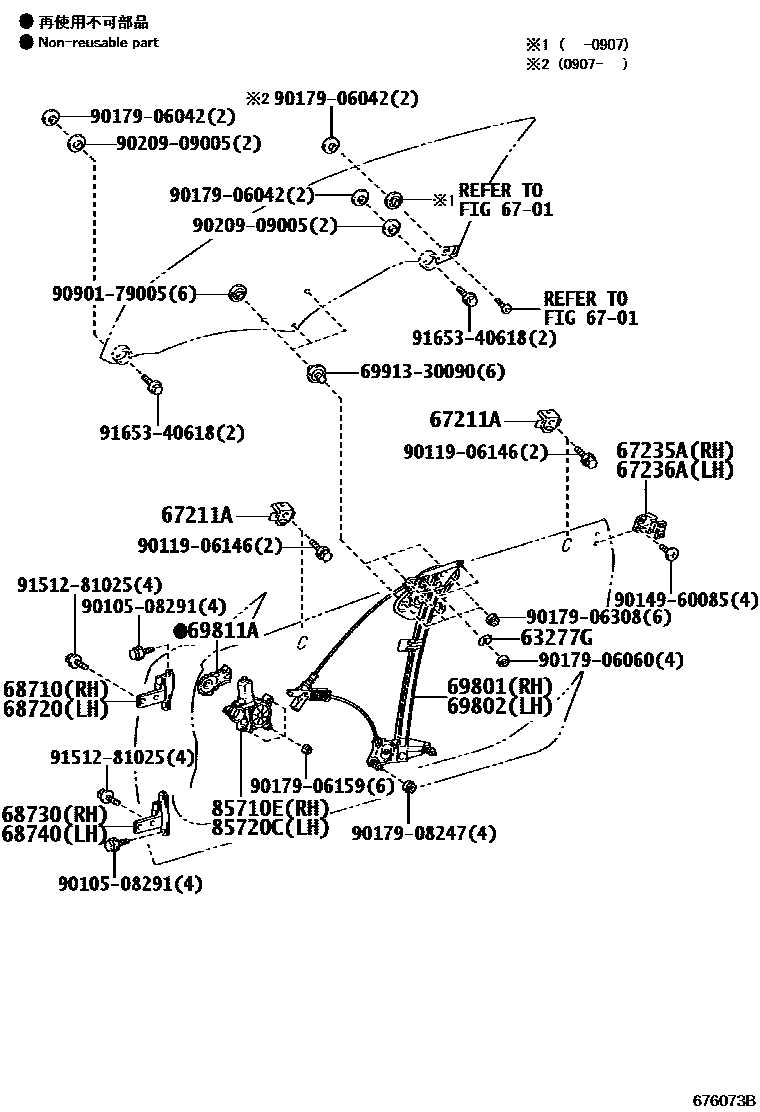

FRONT DOOR WINDOW REGULATOR & HINGE
63277GSHIM, WINDOW REGULATOR
6701
67211ASTOP, FRONT DOOR WINDOW, UPPER
sub67211-24030
67235ASTABILIZER, DOOR GLASS FEMALE, RH
67236ASTABILIZER, DOOR GLASS FEMALE, LH
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69811APLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
6991330090BOLT, FRONT DOOR GLASS SETTING
main69913-30090
9010508291
main90105-08291
9011906146
main90119-06146
9014960085
main90149-60085
9017906042
main90179-06042
9017906060
main90179-06060
9017906159
main90179-06159
9017906308
main90179-06308
9017908247
main90179-08247
9020909005
main90209-09005
9090179005
main90901-79005
9151281025
main91512-81025
9165340618
main91653-40618
27 parts on this diagram · 1 diagram in section
