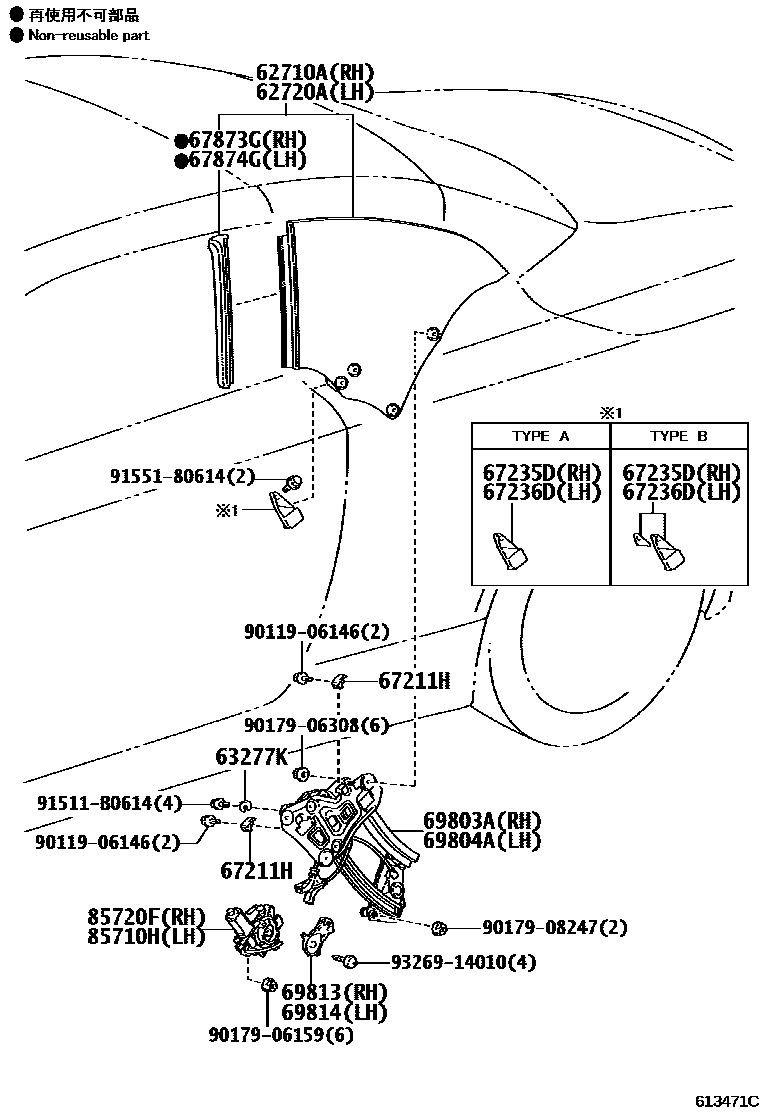

QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-53080iGSE2#200904-201404

*UVCT,T=5.0,GREEN

sub62710-53081

main62710-53081iGSE2#201405

*UVCT,T=5.0,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-53070iGSE2#200904-201404

*UVCT,T=5.0,GREEN

sub62720-53071

main62720-53071iGSE2#201405

*UVCT,T=5.0,GREEN

63277KSHIM, QUARTER WINDOW

main63277-30060iGSE2#200904

67211HSTOP, QUARTER WINDOW

main67211-24020iGSE2#200904

sub67211-24030

67235DSTABILIZER, QUARTER WINDOW GLASS FEMALE, RH

main67235-53020iGSE22200904-200906

main67235-53020iGSE2#200906

TYPE A:REFER ILLUST.

main67235-53040iGSE2#200906

TYPE B:REFER ILLUST.

67236DSTABILIZER, QUARTER WINDOW GLASS FEMALE, LH

main67236-53010iGSE22200904-200906

main67236-53010iGSE2#200906

TYPE A:REFER ILLUST.

main67236-53030iGSE2#200906

TYPE B:REFER ILLUST.

67873GWEATHERSTRIP, QUARTER WINDOW, FRONT RH

main67873-53010iGSE2#200904-201404

sub67873-53011

main67873-53011iGSE2#201405

67874GWEATHERSTRIP, QUARTER WINDOW, FRONT LH

main67874-53010iGSE2#200904-201404

main67874-53011iGSE2#201405

69803AREGULATOR SUB-ASSY, QUARTER WINDOW, RH

main69803-53030iGSE2#200904

69804AREGULATOR SUB-ASSY, QUARTER WINDOW, LH

main69804-53030iGSE2#200904

69813BRACKET, REAR QUARTER POWER REGULATOR, FRONT RH

main69813-33010iGSE2#200904

69814BRACKET, REAR QUARTER POWER REGULATOR, FRONT LH

main69813-33010iGSE2#200904

85710HMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-53080iGSE2#200904

85720FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-53080iGSE2#200904

9011906146

main90119-06146

9017906159

main90179-06159

9017906308

main90179-06308

9017908247

main90179-08247

91511B0614

main91511-B0614

9155180614

main91551-80614

9326914010

main93269-14010

21 parts on this diagram · 1 diagram in section
