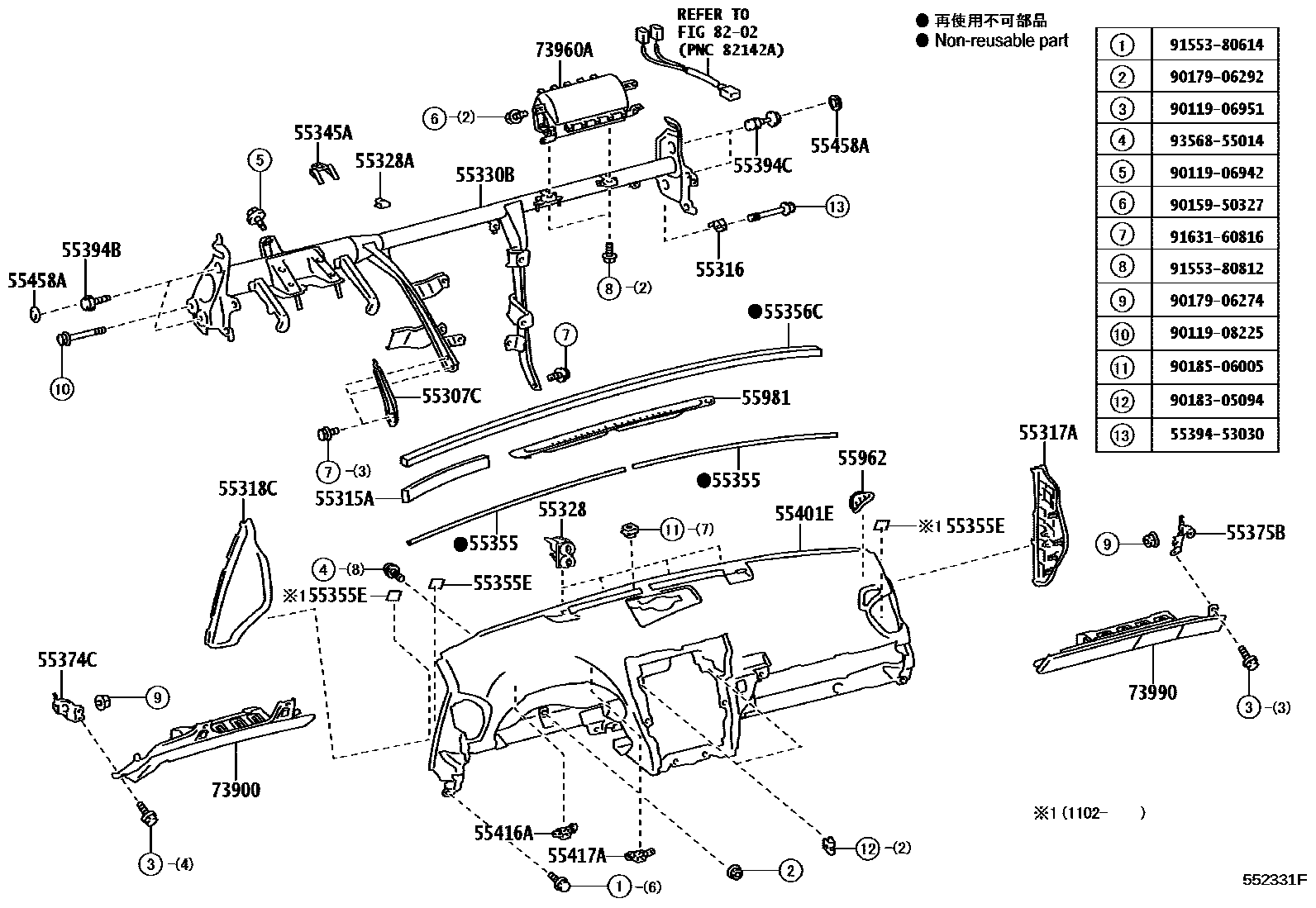

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55352-53040iGSE2#¥870200904

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53010iGSE2#¥360200904

55316SPACER, INSTRUMENT PANEL, NO.2

main55315-53040iGSE2#¥270200904-201507

55317APANEL, INSTRUMENT SIDE, RH

main55317-53070-C0iGSE2#200904-201507

BLACK,TRIM0#,1#,2#,3#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-53040-C0iGSE2#200904-201507

BLACK,TRIM0#,1#,2#,3#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-30140iGSE2#¥260200904

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-48110iGSE2#¥130201012

main55328-50170iGSE2#¥160200904-201011

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-53250iGSE22..GEN¥26,200200904-201408

main55330-53270iGSE2#..GCC200904

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-30060iGSE2#¥360200904

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30100iGSE2#¥610200904-201507

55355ECUSHION, INSTRUMENT PANEL

main55355-53050iGSE2#¥60200904-201102

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55355-53040iGSE2#¥980200904

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-53010iGSE22..GEN¥1,150200904-201408

main55374-53020iGSE2#..GCC¥1,150200904

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-53040iGSE22..GEN¥1,240200904-201408

main55375-53050iGSE2#..GCC¥1,240200904

55394BBOLT, INSTRUMENT PANEL

main55394-30021iGSE2#¥150200904

55394CBOLT, INSTRUMENT PANEL

main55394-33041iGSE2#¥230200904

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-53905iGSE22..GEN¥73,600200904-201408

main55400-53908-C0iGSE2#..GCC200904

BLACK,TRIM0#,1#,2#,3#,4#

sub55400-53100¥79,700

55416ARETAINER, METER HOOD, NO.1

main55416-30150iGSE2#¥670200904

55417ARETAINER, METER HOOD, NO.2

main55417-30070iGSE2#¥670200904

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100iGSE2#¥160200904

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-53010-C0iGSE22..GEN200904-201408

BLACK,TRIM0#,1#,2#,3#,4#

main55962-53020-C0iGSE2#..GCC200904-201507

BLACK,TRIM0#,1#,2#,3#,4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-53010-C0iGSE2#200904-201507

BLACK,TRIM0#,1#,2#,3#,4#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-53010-A2iGSE22..GEN200904-201408

MELLOW WHITE,TRIM0#

sub73900-53010¥37,400

main73900-53010-C0iGSE22..GEN200904-201408

BLACK,TRIM1#,2#,3#,4#

sub73900-53010¥37,400

main73900-53020-A2iGSE2#..GCC200904-201507

MELLOW WHITE,TRIM0#

sub73900-53020

main73900-53020-C0iGSE2#..GCC200904-201507

BLACK,TRIM1#,2#,3#,4#

sub73900-53020

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-53040iGSE22..GEN¥120,000200904-201309

sub73960-53041¥120,000

main73960-53041iGSE22..GEN¥120,000201310-201408

sub73960-53042¥120,000

main73960-53060iGSE2#..GCC200904

sub73960-53190

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-53010-A2iGSE22..GEN200904-201408

MELLOW WHITE,TRIM0#

sub73990-53010¥37,400

main73990-53010-C0iGSE22..GEN200904-201408

BLACK,TRIM1#,2#,3#,4#

sub73990-53010¥37,400

main73990-53020-A2iGSE2#..GCC200904-201507

MELLOW WHITE,TRIM0#

sub73990-53020¥37,400

main73990-53020-C0iGSE2#..GCC200904-201507

BLACK,TRIM1#,2#,3#,4#

sub73990-53020¥37,400

8202

5539453030BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-53030¥610

9011906942

main90119-06942¥60

9011906951

main90119-06951¥80

9011908225

main90119-08225¥0

9015950327

main90159-50327¥70

9017906274

main90179-06274¥70

9017906292

main90179-06292¥100

9018305094

main90183-05094¥90

9018506005

main90185-06005¥190

9155380614

main91553-80614¥60

9155380812

main91553-80812¥80

9163160816

main91631-60816¥160

9356855014

main93568-55014¥70

39 parts on this diagram · 8 diagrams in section
