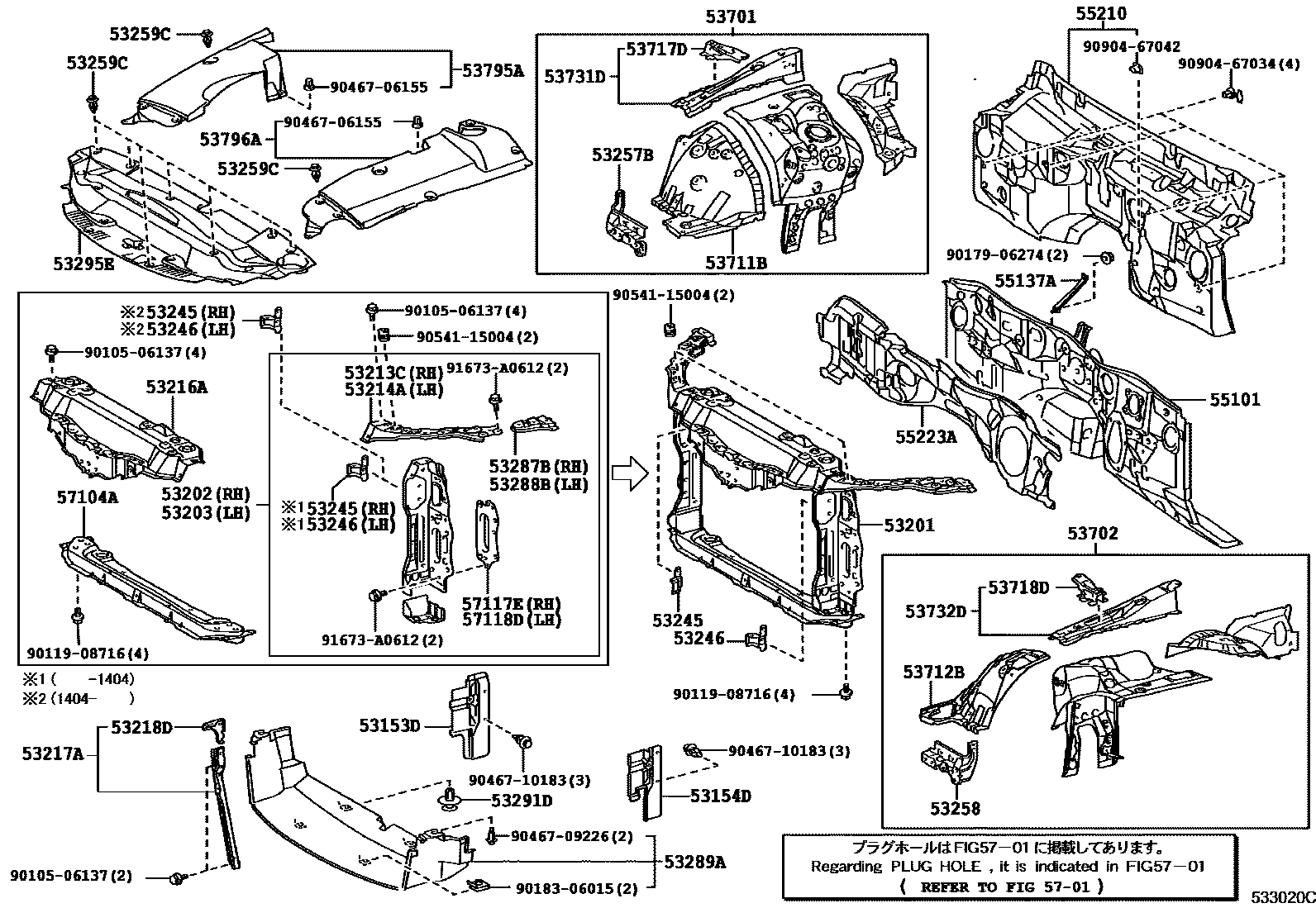

FRONT FENDER APRON & DASH PANEL
53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53213CSUPPORT, RADIATOR, UPPER FRONT
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53218DEXTENSION, HOOD LOCK BRACE
53245BRACKET, HEADLAMP, RH
53246BRACKET, HEADLAMP, LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BRACKET, FRONT END PANEL MOUNTING, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53289ACOVER, RADIATOR SUPPORT OPENING
F SPORT
53291DCLIP, RADIATOR SUPPORT TO FRAME
53295ESEAL, COOL AIR INTAKE DUCT
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
55101PANEL SUB-ASSY, DASH
55137ABRACE, DASH TO FRAME, RH
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57117ERETAINER, FRONT BUMPER ARM, RH
57118DRETAINER, FRONT BUMPER ARM, LH
9010506137
main90105-06137
9011908716
main90119-08716
9017906274
main90179-06274
9018306015
main90183-06015
9046706155
main90467-06155
9046709226
main90467-09226
9046710183
main90467-10183
9054115004
main90541-15004
9090467034
main90904-67034
9090467042
main90904-67042
91673A0612
main91673-A0612
49 parts on this diagram · 2 diagrams in section
