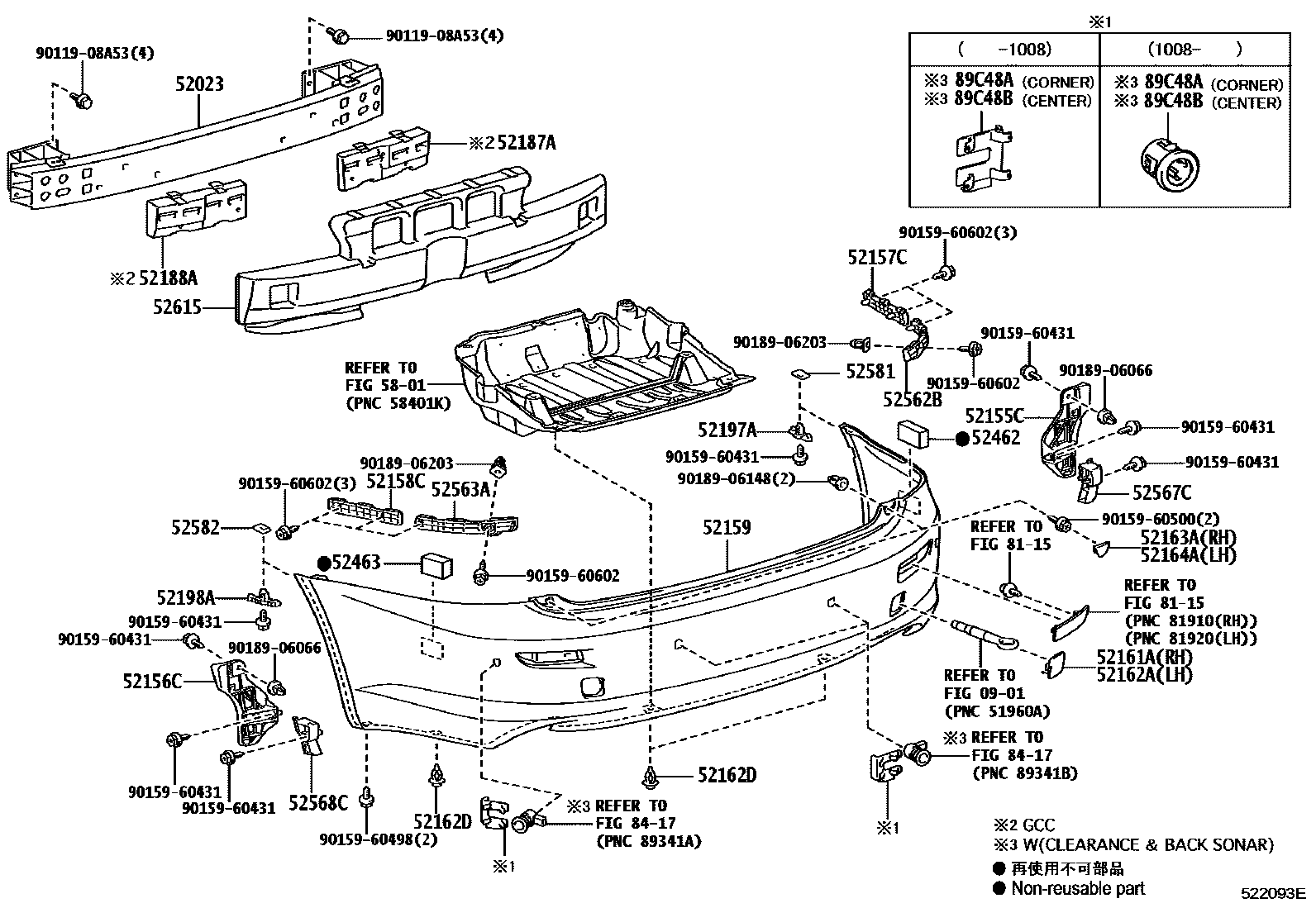

REAR BUMPER & BUMPER STAY
0901
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52161APIECE, REAR BUMPER, RH
52162APIECE, REAR BUMPER, LH
52162DPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
52615ABSORBER, REAR BUMPER ENERGY
5801
8115
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SILVER M.M.,1G1
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
LAPIS LAZULI MC.,8V3
SILVERY BLUE ME.,8U9
BLUE ME.,8U1
CATTLEYA M.M.,9AL
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SILVER M.M.,1G1
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
LAPIS LAZULI MC.,8V3
SILVERY BLUE ME.,8U9
BLUE ME.,8U1
CATTLEYA M.M.,9AL
9011908A53
9015960431
9015960498
9015960500
9015960602
9018906066
9018906148
9018906203
38 parts on this diagram · 1 diagram in section
