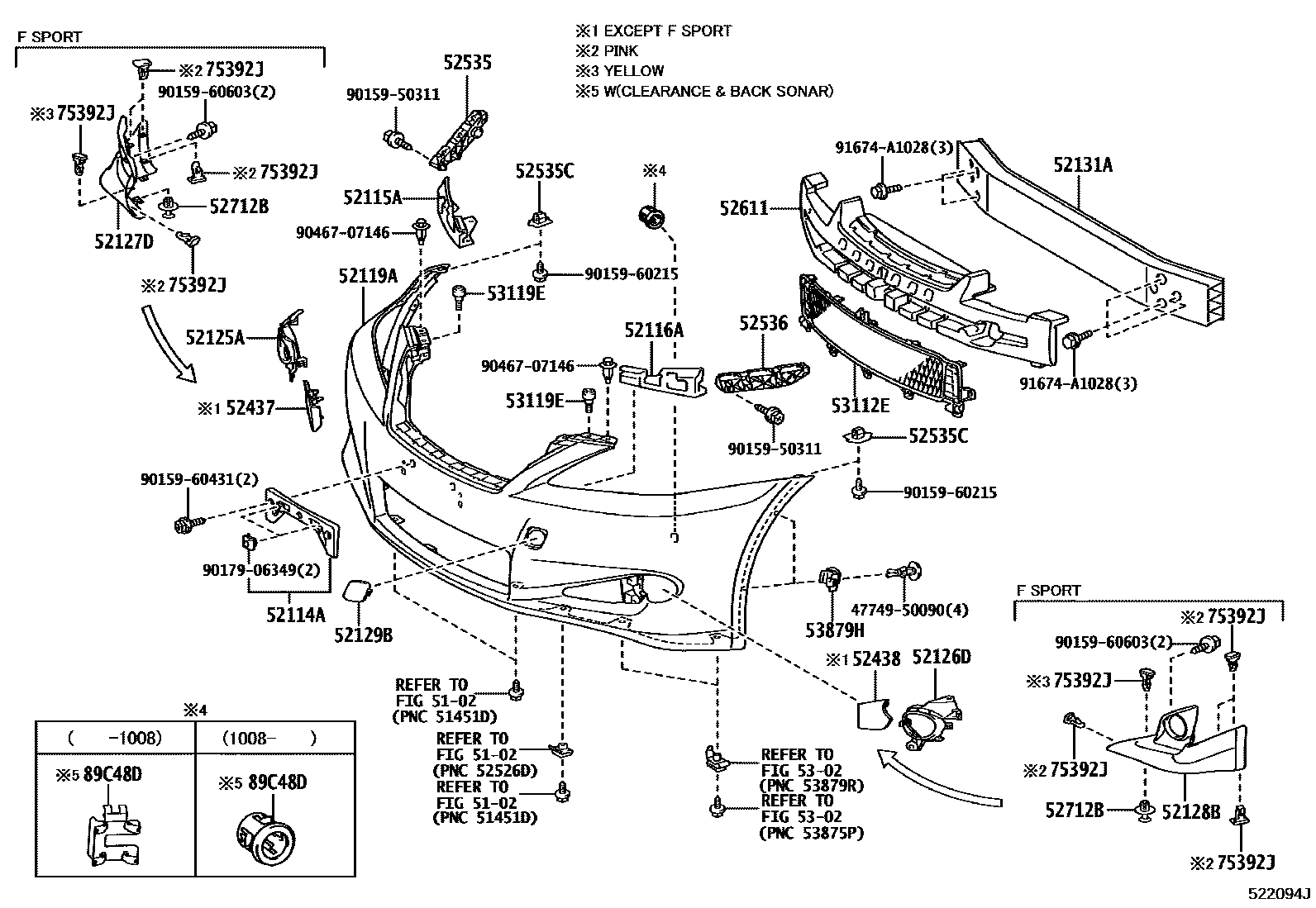

FRONT BUMPER & BUMPER STAY
5102
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
PHILIPPINE SPEC
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.,PHILIPPINE SPEC
PAINT REQ.,CHINA SPEC
PAINT REQ.,CHINA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)
PAINT REQ.
PAINT REQ.
PAINT REQ.,PHILIPPINE SPEC
PAINT REQ.
52125ABRACKET, FOG LAMP MOUNTING, RH
52126DBRACKET, FOG LAMP MOUNTING, LH
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52131AREINFORCEMENT, FRONT BUMPER
PHILIPPINE SPEC
52437COVER, FRONT BUMPER GUARD, RH
52438COVER, FRONT BUMPER GUARD, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52535CRETAINER, FRONT BUMPER SIDE
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
PHILIPPINE SPEC
52712BCLIP, FRONT BUMPER MOULDING
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
53119EPROTECTOR, RADIATOR GRILLE
53879HRETAINER, FRONT FENDER LINER
75392JRETAINER, OUTSIDE MOULDING
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SILVER M.M.,1G1
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
LAPIS LAZULI MC.,8V3
SILVERY BLUE ME.,8U9
BLUE ME.,8U1
CATTLEYA M.M.,9AL
4774950090CLIP, PIN HOLD
main47749-50090
9015950311
main90159-50311
9015960215
main90159-60215
9015960431
main90159-60431
9015960603
main90159-60603
9017906349
main90179-06349
9046707146
main90467-07146
91674A1028
main91674-A1028
32 parts on this diagram · 1 diagram in section
