REAR DISC BRAKE CALIPER & DUST COVER

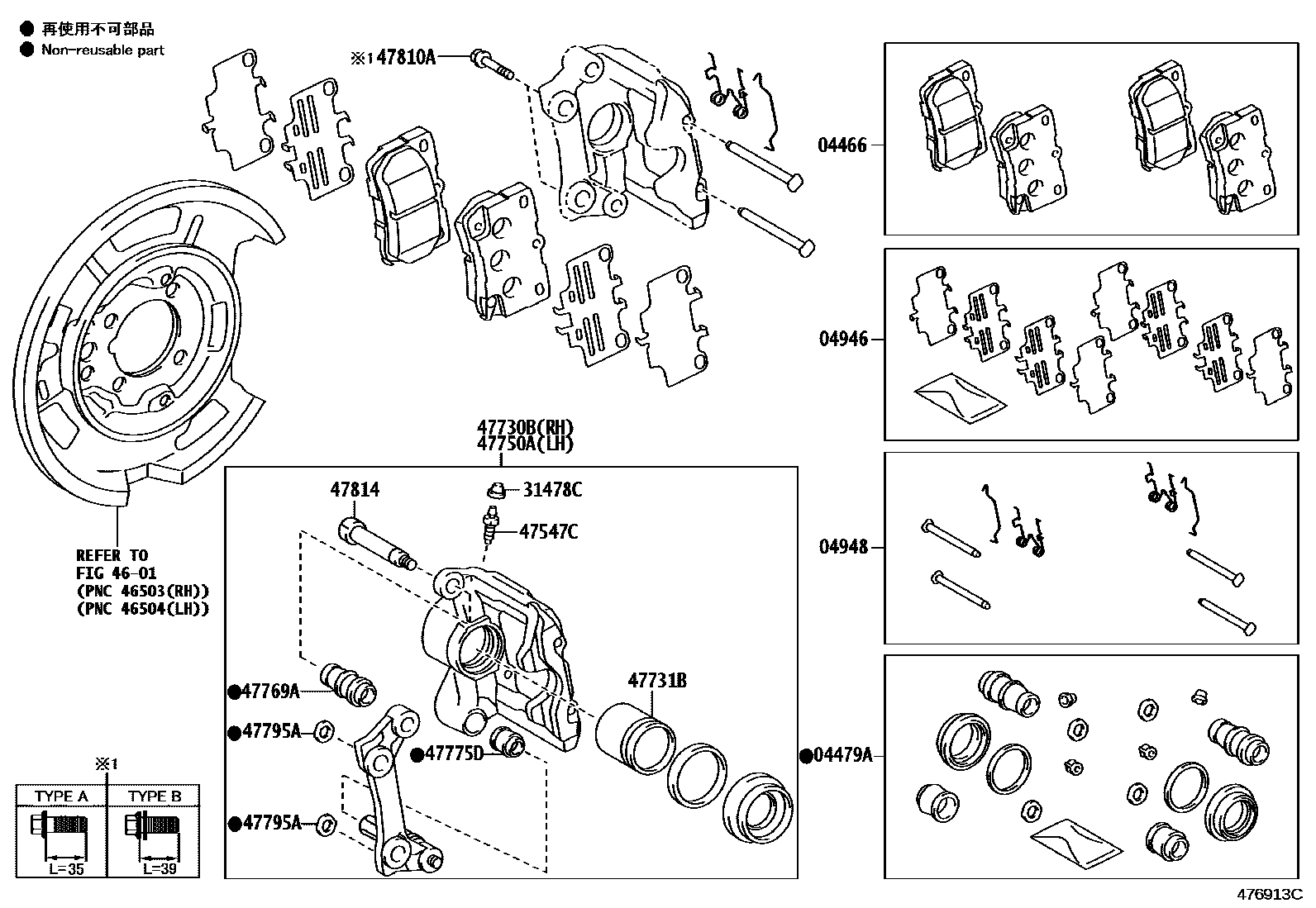

Parts diagram
04466PAD KIT, DISC BRAKE, REAR
main04466-22190i200904-201308
MARK NBK PN529H
main04466-30300i201308-201507
MARK NBK PN529H
04479ACYLINDER KIT, DISC BRAKE, REAR
main04479-22170i201104-201308
main04479-30510i200904-201008
ARGENTINE SPEC
sub04479-53070
main04479-30510i200904-201008
CHINA SPEC
sub04479-53070
main04479-30510i200904-201104
PHILIPPINE SPEC
sub04479-53070
main04479-30590i201308
main04479-53070i201104-201308
PHILIPPINE SPEC
main04479-53090i201308
PHILIPPINE SPEC
main04479-61040i200904-201104
sub04479-22170
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
main04946-22090i200904-201308
main04946-30110i200904-201008
ARGENTINE SPEC
main04946-30110i200904-201008
CHINA SPEC
main04946-30110i200904-201308
PHILIPPINE SPEC
main04946-47080i201308
04948FITTING KIT, DISC BRAKE, REAR
main04948-30210i200904-201308
main04948-30240i201308
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
main31478-30010i200904
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
main47547-20010i201308
main47547-27030i200904-201308
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
main47830-22221i200904-201212
PNC 47810A=TYPE A
main47830-30400i201212-201308
PNC 47810A=TYPE B
main47830-30410i201308
main47830-53070i200904-201212
PNC 47810A=TYPE A
main47830-53070i200904-201212
PHILIPPINE SPEC,PNC 47810A=TYPE A
main47830-53070i200904-201008
CHINA SPEC
main47830-53070i200904-201008
ARGENTINE SPEC
main47830-53071i201212-201308
PHILIPPINE SPEC,PNC 47810A=TYPE B
main47830-53071i201212-201308
PNC 47810A=TYPE B
main47830-53100i201308
PHILIPPINE SPEC
47731BPISTON, REAR DISC BRAKE
main47831-22220i200904
main47831-30300i200904-201008
ARGENTINE SPEC
main47831-30300i200904-201008
CHINA SPEC
main47831-30300i200904
PHILIPPINE SPEC
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
main47850-22221i200904-201212
PNC 47810A=TYPE A
main47850-30400i201212-201308
PNC 47810A=TYPE B
main47850-30410i201308
main47850-53070i200904-201008
ARGENTINE SPEC
main47850-53070i200904-201008
CHINA SPEC
main47850-53070i200904-201212
PNC 47810A=TYPE A
main47850-53070i200904-201212
PHILIPPINE SPEC,PNC 47810A=TYPE A
main47850-53071i201212-201308
PHILIPPINE SPEC,PNC 47810A=TYPE B
main47850-53071i201212-201308
PNC 47810A=TYPE B
main47850-53100i201308
PHILIPPINE SPEC
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
main47879-30300i200904-201308
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
main47875-30340i200904-201104
sub47875-30341
main47875-30341i201104-201308
47795APLATE, REAR DISC BRAKE CALIPER, NO.1
main47895-30300i200904
47810ABOLT, HEXAGON(FOR REAR CALIPER)
main90105-10525i200904-201212
TYPE A:REFER ILLUST.
main90119-12416i201212-201308
TYPE B:REFER ILLUST.
main90119-12416i201308
PHILIPPINE SPEC,TYPE B:REFER ILLUST.
47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
main47814-30300i200904-201308
main47814-33240i201308

15 parts on this diagram · 2 diagrams in section
