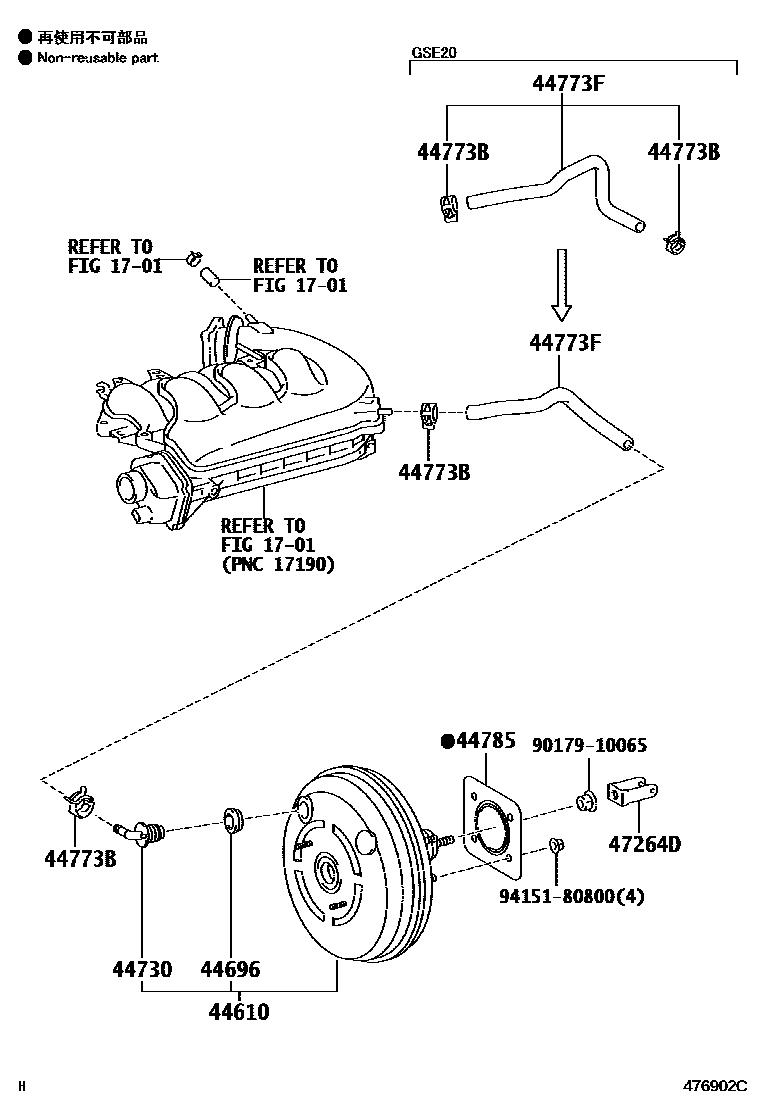

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-53281iGSE22..GCC200904-201008

ARGENTINE SPEC

main44610-53281iGSE22..GCC200904-201008

CHINA SPEC

main44610-53281iGSE22..GCC200904-201507

PHILIPPINE SPEC

main44610-53281iGSE20201008-201507

main44610-53321iGSE22..GEN200904-201408

main44610-53350iGSE22..GCC200904-201507

44696GROMMET, CHECK VALVE

main90480-24015iGSE22..GCC200904

main90480-24439iGSE22..GCC200904-201008

ARGENTINE SPEC

main90480-24439iGSE22..GCC200904-201008

CHINA SPEC

main90480-24439iGSE20;GSE22..GEN200904

PHILIPPINE SPEC

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iGSE22..GCC200904-201008

CHINA SPEC

main44730-12070iGSE22..GCC200904-201008

ARGENTINE SPEC

main44730-12070iGSE20;GSE22..GEN200904-201507

PHILIPPINE SPEC

main44730-28010iGSE22..GCC200904-201507

44773HOSE, VACUUM, NO.2

main44773-53060iGSE22..GEN200904-201408

44773BCLIP, NO.2(FOR VACUUM HOSE, NO.2)

main90467-16014iGSE2#200904

44773FHOSE, UNION TO CHECK VALVE

main44750-53120iGSE20201008

main44773-53070iGSE22..GCC200904

44785GASKET, BRAKE BOOSTER

main44785-47010iGSE2#200904

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGSE2#200904

9017910065

main90179-10065

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
