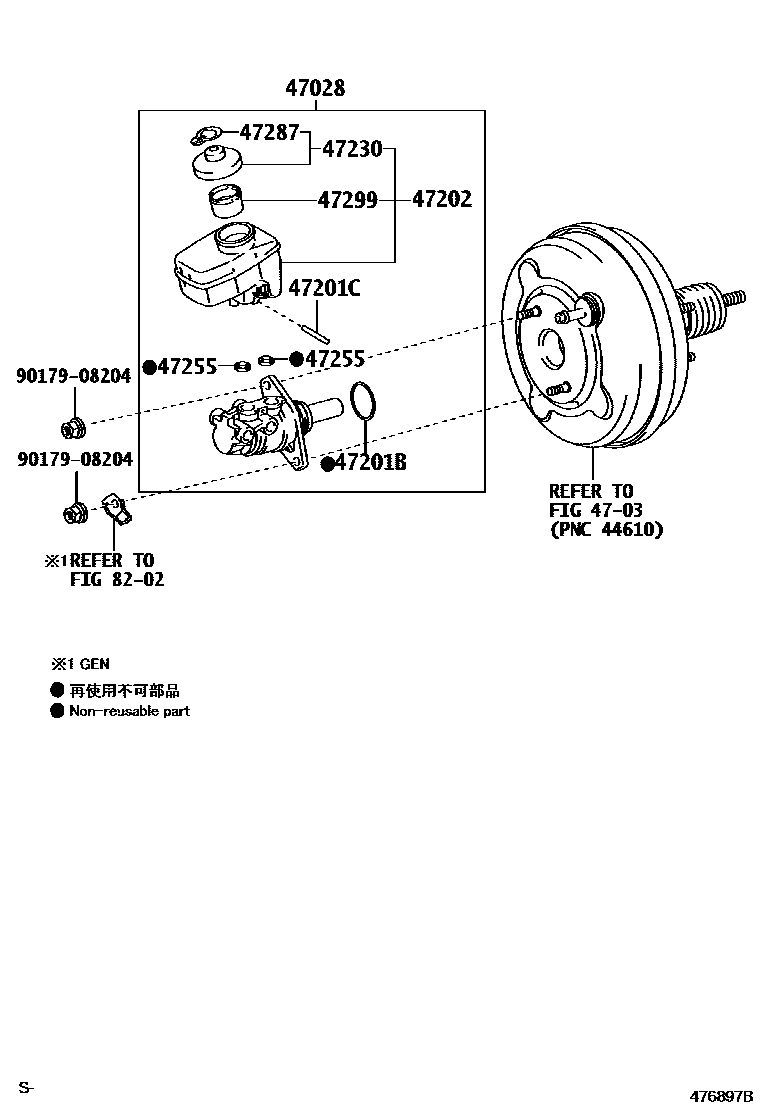

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-30010iGSE22..GEN200904-201408

main47028-30030iGSE2#..GCC200904-201507

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iGSE2#200904

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSE2#200904

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30170iGSE22..GEN200904-201408

main47220-30180iGSE2#..GCC200904

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGSE2#200904

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGSE2#200904

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGSE2#200904

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGSE2#200904

8202

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
