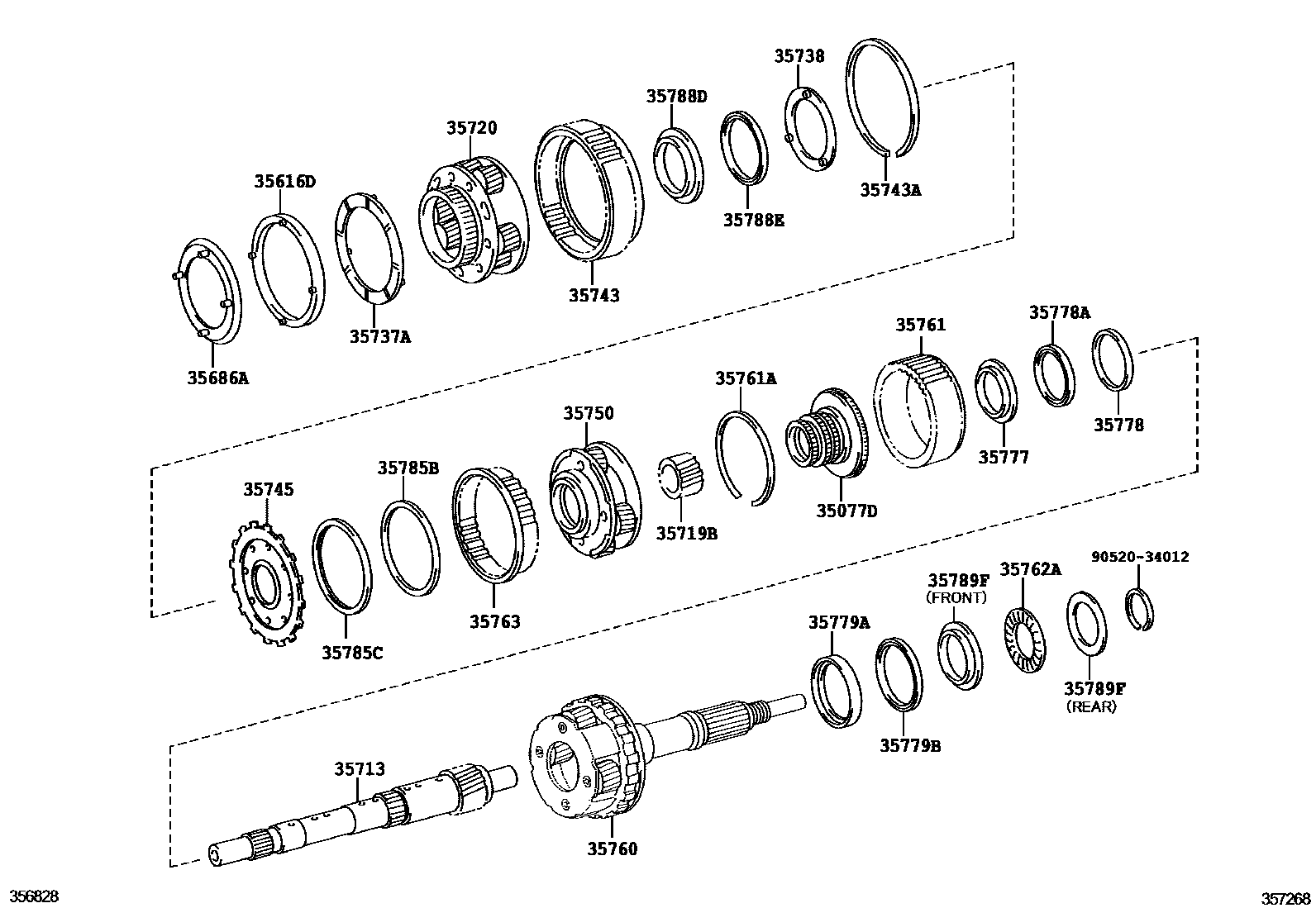

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35616DWASHER, CLUTCH DRUM THRUST
35686AWASHER, CLUTCH DRUM THRUST, NO.2
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35745FLANGE, FRONT PLANETARY RING GEAR
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
REAR,T=3.8
REAR,T=3.9
REAR,T=4.0
REAR,T=4.1
REAR,T=4.2
FRONT
REAR,T=3.85
REAR,T=3.95
REAR,T=4.05
REAR,T=4.15
REAR,T=4.25
REAR,T=4.30
REAR,T=4.35
9052034012
main90520-34012
28 parts on this diagram · 2 diagrams in section
