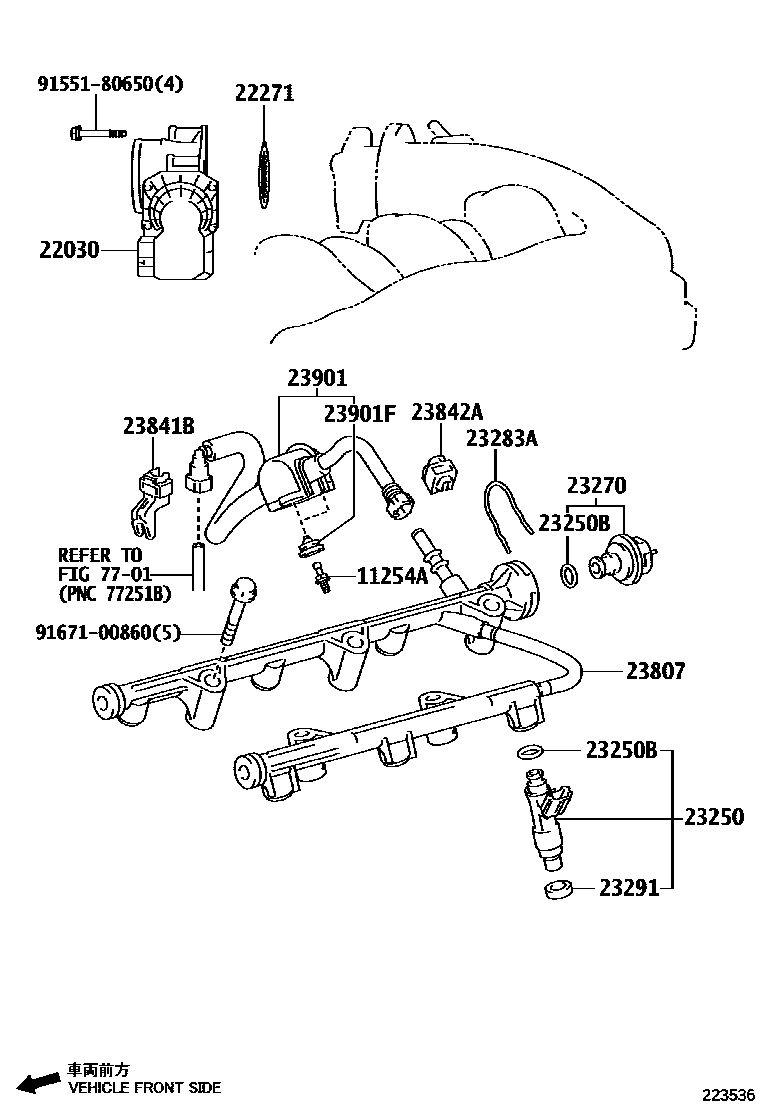

FUEL INJECTION SYSTEM

0001 1 0002 1

11254ABRACKET, V-BANK COVER

main11254-31020i3GRFE..GSE22200904

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i4GRFSE..GSE20201008

main22030-31050i3GRFE..GSE22200904

22271GASKET, THROTTLE BODY

main22271-31030i3GRFE,4GRFSE..GSE2#200904

23250INJECTOR ASSY, FUEL

main23209-39057-A0i4GRFSE..GSE20201008-201507

MARK BLACK

main23209-39057-B0i4GRFSE..GSE20201008-201507

MARK BROWN

main23209-39125i3GRFE..GSE22200904-201507

23250BRING, O(FOR FUEL INJECTOR)

main90301-06018i4GRFSE..GSE20201008

main90301-07033i3GRFE..GSE22200904

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-31010i4GRFSE..GSE20201008-201405

sub23207-31021

main23207-31021i4GRFSE..GSE20201405

main23270-31010i3GRFE..GSE22200904-200908

sub23270-31080

main23270-31080i3GRFE..GSE22200908-201012

sub23270-31140

main23270-31100i3GRFE..GSE22201012

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i3GRFE..GSE22200904

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i3GRFE..GSE22200904

main23291-31011i4GRFSE..GSE20201008

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31030i3GRFE..GSE22200904

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i3GRFE,4GRFSE..GSE2#200904-201507

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i3GRFE..GSE22200904

23901TUBE SUB-ASSY, FUEL

main23901-31040i4GRFSE..GSE20201008-201110

sub23901-31041

main23901-31041i4GRFSE..GSE20201110-201507

main23901-31131i3GRFE..GSE22200904-201012

sub23901-31170

main23901-31170i3GRFE..GSE22201012-201507

23901FGROMMET(FOR FUEL TUBE)

main90480-22024i3GRFE..GSE22200904

7701

9155180650

main91551-80650

9167100860

main91671-00860

16 parts on this diagram · 2 diagrams in section
