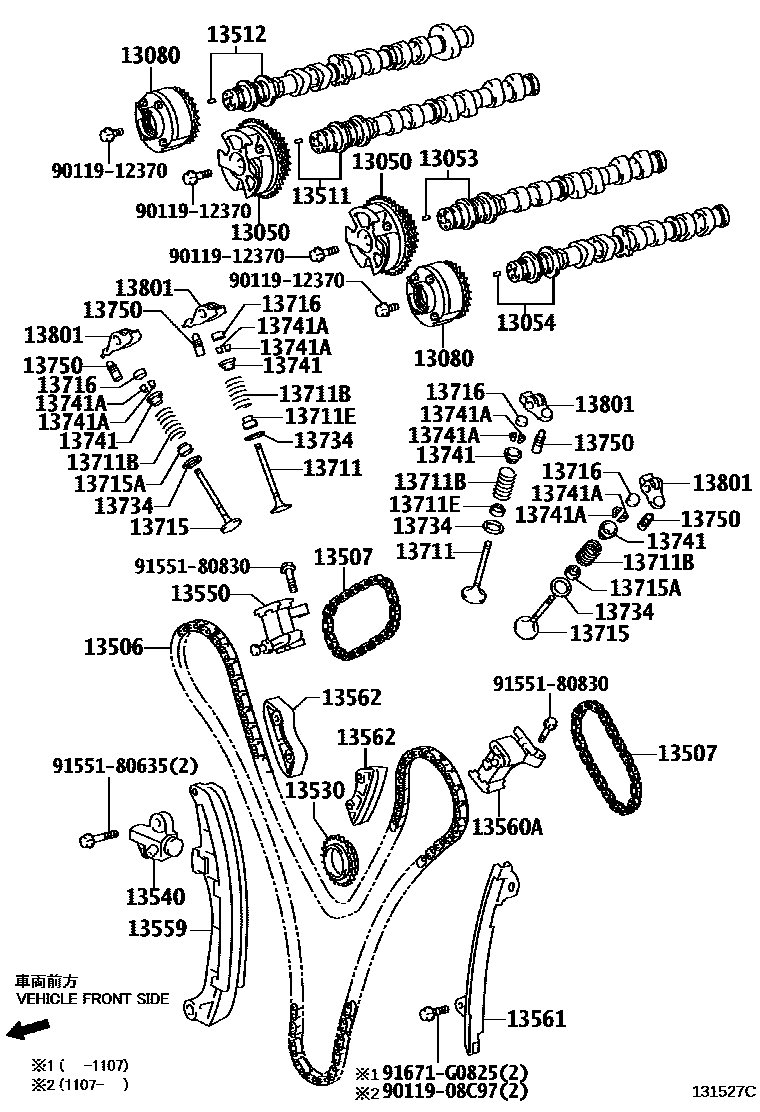

CAMSHAFT & VALVE
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13530SPROCKET ASSY, IDLE
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9011908C97
main90119-08C97
9011912370
main90119-12370
9155180635
main91551-80635
9155180830
main91551-80830
91671G0825
main91671-G0825
31 parts on this diagram · 2 diagrams in section
