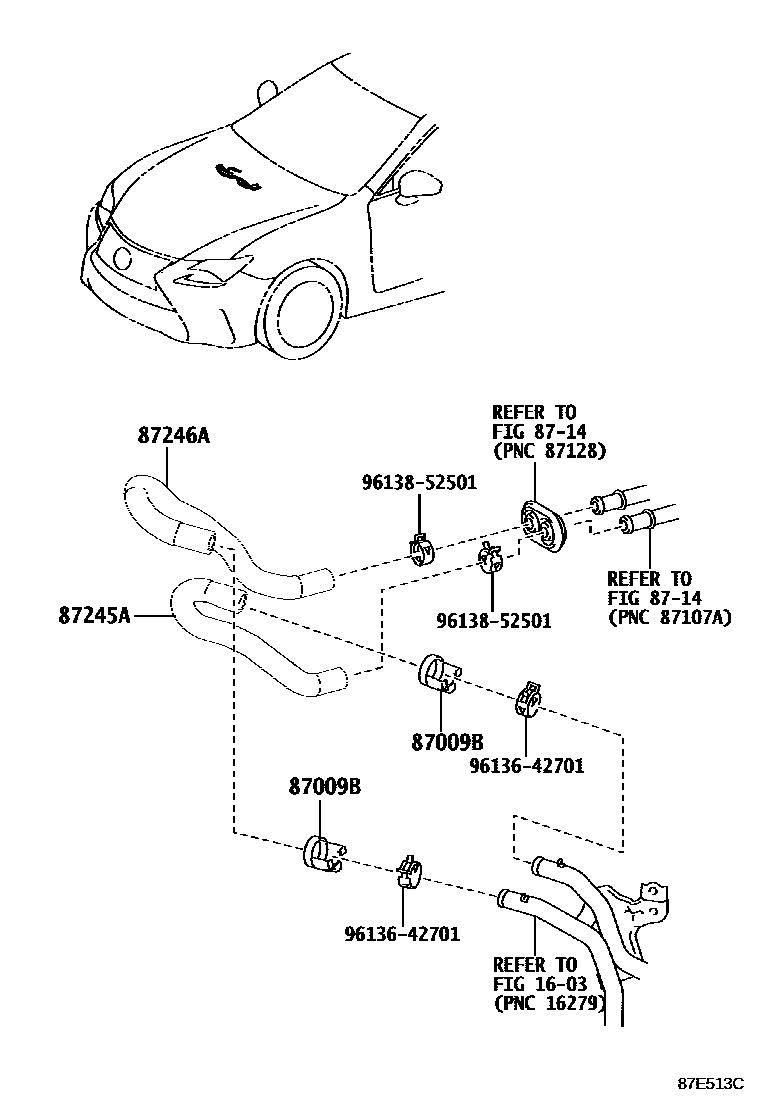

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603

87009BHOSE SET, WATER

main87009-11010iASC10..ARL201709-202209

main87009-30040iAVC10..ARL201409-201810

main87009-50020iASC10201510-201709

8714

87245AHOSE, HEATER WATER, INLET A

main87245-30C30iAVC10..ARL201510-201810

main87245-30D10iGSC10..ARL201711-202209

main87245-53180iGSC10201409-201711

main87245-53200iASC10..ARL201510-201810

INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

main87245-53200iASC10..ARL201510-201810

MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

main87245-53200iASC10..ARL201510-201810

TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main87245-53200iASC10..GEN201510-201810

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

main87245-53200iASC10..GEN201510-201810

BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

main87245-53200iASC10..ARL201810-202209

87246AHOSE, HEATER WATER, OUTLET A

main87245-30A41iGSC10..ARL201409-201711

main87245-30C40iAVC10..ARL201510-201810

main87245-30D20iGSC10..LHD201711-201810

main87245-30D30iGSC10..ARL201711-202209

main87245-53130iGSC10..LHD201409-201711

main87245-53210iASC10..ARL201510-201810

BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

main87245-53210iASC10..ARL201510-201810

INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

main87245-53210iASC10..ARL201510-201810

MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

main87245-53210iASC10..ARL201510-201810

TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main87245-53210iASC10..ARL201510-201810

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

main87245-53210iASC10..ARL201810-202209

9613642701

main96136-42701

9613852501

main96138-52501

7 parts on this diagram · 4 diagrams in section
