HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

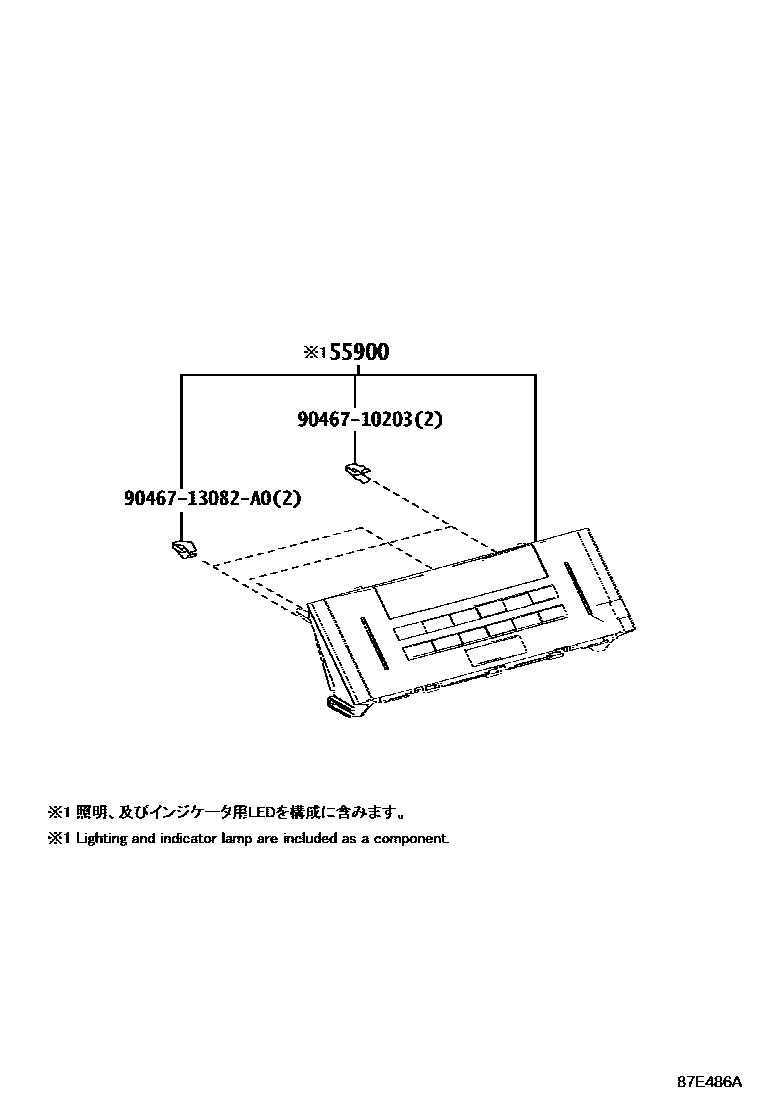

55900CONTROL ASSY, AIR CONDITIONER

main55900-24470iASC10..ARL201510-201810

SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)

main55900-24470iGSC10..ARL201409-201810

SOUTH AFRICA SPEC

main55900-24480iGSC10..ARL201409-201510

main55900-24480iASC10..ARL201510-201810

MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM)

main55900-24480iASC10..ARL201510-201810

BRUNEI SPEC&WITHOUT(STOP & START SYSTEM)

main55900-24480iASC10..ARL201510-201810

INDONESIA SPEC&WITHOUT(STOP & START SYSTEM)

main55900-24510iGSC10..GEN201409-201810

main55900-24520iGSC10..GCC201409-201810

main55900-24600iAVC10..ARL201510-201810

main55900-24610iASC10..GEN201510-201810

TAIWAN SPEC&WITH(STOP & START SYSTEM)

main55900-24650iASC10,GSC10..ARL202111-202209

main55900-24650iASC10..ARL201810-202111

SOUTH AFRICA SPEC

main55900-24650iASC10..ARL201810-202111

SOUTH AFRICA SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)

main55900-24660iGSC10..ARL201810-202111

MALAYSIA SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)

main55900-24660iGSC10..ARL201810-202111

BRUNEI SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)

main55900-24660iASC10..ARL202111-202209

BRUNEI SPEC

main55900-24670iASC10,GSC10..GEN201810-202009

main55900-24680iASC10,GSC10..GCC201810

main55900-24730iASC10..ARL202111-202209

THAILAND SPEC&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

main55900-24730iASC10..ARL201810-202111

main55900-24740iASC10..CHI201812-202003

main55900-24740iASC10..GEN201810-202009

TAIWAN SPEC&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

main55900-24880iGSC10..GEN202009

9046710203

main90467-10203

9046713082A0

main90467-13082A0

3 parts on this diagram · 5 diagrams in section
