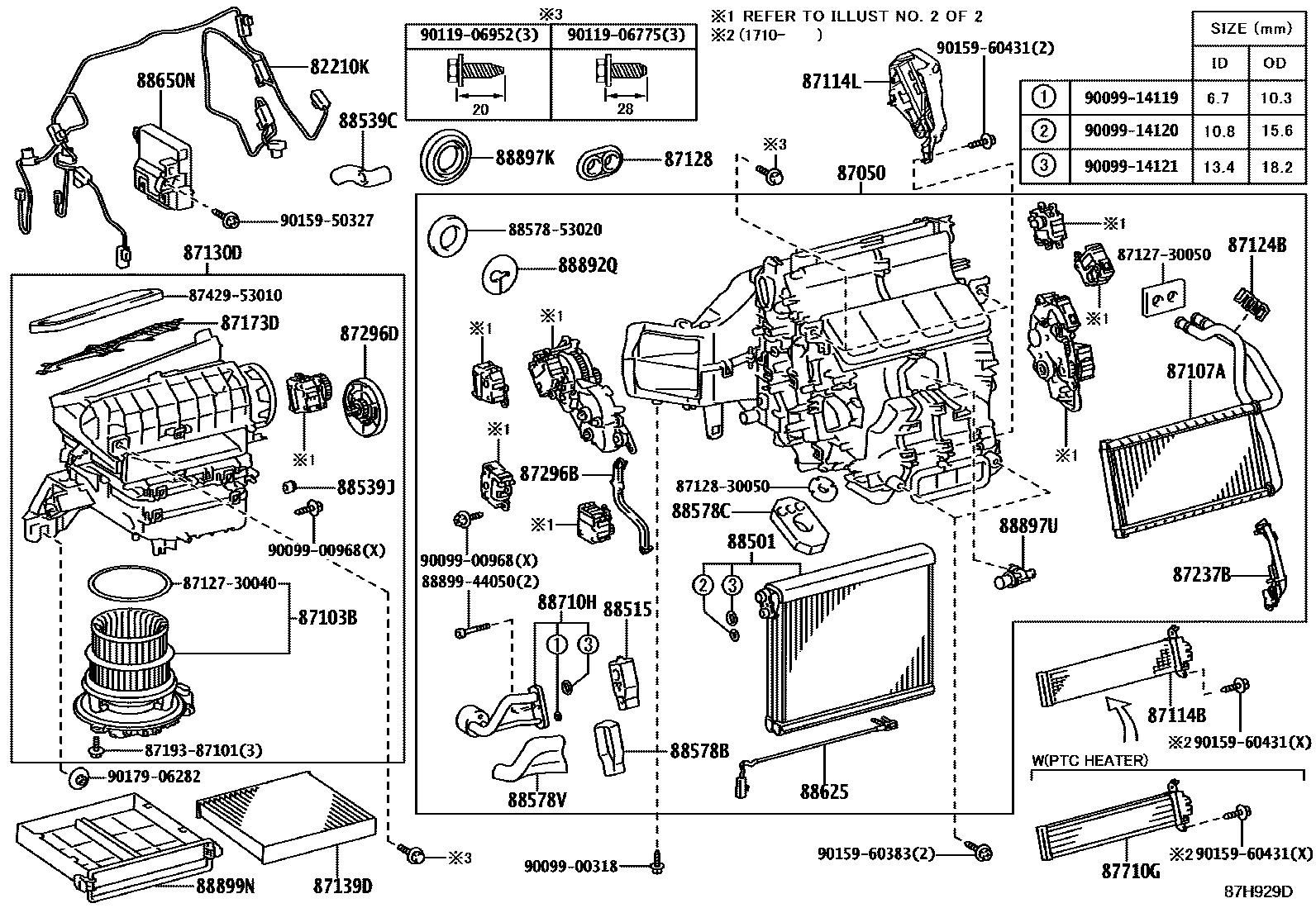

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1SERVO MOTOR 0004 1SERVO MOTOR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-30100iASC10..CHI201812-202003

main82212-30100iASC10..GEN201510-201810

WITH(STOP & START SYSTEM)

main82212-30120iAVC10..ARL201510-201608

main82212-53010iGSC10..LHD201409-201810

main82212-53020iASC10..ARL201510-201810

WITHOUT(STOP & START SYSTEM)

main82212-53020iGSC10..ARL201409-202209

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30462iGSC10..ARL201409-201412

sub87050-30463

main87050-30463iGSC10..ARL201501-201503

sub87050-30710

sub87128-30060

main87050-30580iAVC10..ARL201510-201608

sub87050-30581

main87050-30660iAVC10..GEN201510-201609

sub87050-30661

main87050-30661iAVC10201610-201810

main87050-30710iASC10..ARL201510-201609

WITHOUT(STOP & START SYSTEM)

sub87050-30711

main87050-30710iGSC10..ARL201503-201510

sub87050-30711

main87050-30711iASC10..ARL201610-201810

WITHOUT(STOP & START SYSTEM)

main87050-30711iASC10..ARL201810-202009

LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)

main87050-53072iGSC10..LHD201409-201412

sub87050-53073

main87050-53073iGSC10..LHD201501-201503

sub87050-53180

sub87128-30060

main87050-53160iASC10..GEN201510-201609

WITH(STOP & START SYSTEM)

sub87050-53161

main87050-53161iASC10..GEN201610-201810

WITH(STOP & START SYSTEM)

main87050-53161iASC10..CHI201812-202003

main87050-53180iASC10,GSC10..GCC,GEN201503-201609

sub87050-53181

main87050-53181iASC10,GSC10..GCC,GEN201610-201810

main87050-53270iGSC10..ARL202009-202209

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-30470iGSC10..LHD201409-201507

sub87103-30471

main87103-30471iGSC10..LHD201507-201810

main87103-30480iGSC10..ARL201409-201507

sub87103-30481

main87103-30481iASC10,AVC10,GSC10..ARL201507-202209

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30571iGSC10201409-201503

sub87107-30580

sub87128-30060

main87107-30580iGSC10201503-202209

87114BCOVER, HEATER

main87114-30010iGSC10201409-202209

87114LCOVER, HEATER, NO.2

main87114-53010iASC10,GSC10..ARL202009-202209

87124BCLAMP, HEATER

main87124-33070iGSC10201409-202209

87128GROMMET, HEATER

main87128-30060iAVC10..ARL201503-202209

main87128-35020iGSC10201409-201502

87130DBLOWER ASSY

main87130-30801iGSC10..ARL201409-201507

sub87130-30802

main87130-30802iASC10,AVC10,GSC10..ARL201507-201808

sub87130-30830

main87130-30821iGSC10..LHD201409-201507

sub87130-30822

main87130-30822iASC10,AVC10,GSC10..LHD201507-201808

sub87130-30840

main87130-30830iASC10,GSC10..ARL201809-202209

main87130-30840iASC10,GSC10..LHD201809-201810

87139DELEMENT, AIR REFINER

main87139-30100iGSC10201409-202209

87173DPROTECTOR HEATER

main87173-53010iGSC10..ARL201409-202209

main87173-53020iGSC10..LHD201409-201810

87237BCOVER, HEATER PIPING

main87237-30010iAVC10..ARL201409-202009

87296BLEVER, HEATER AIR DAMPER CONTROL

main87296-53010iASC10,GSC10..ARL201810-202209

87296DLEVER, HEATER AIR DAMPER CONTROL, NO.2

main87296-53020iASC10..GEN201810-202003

main87296-53030iASC10,GSC10..ARL201810-202209

87710GQUICK HEATER ASSY

main87710-30050iAVC10..GEN201510-201810

COLD AREA SPEC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A190iGSC10201409-202209

main88501-3A190iGSC10;ASC10..GCC,GEN201510-201810

WITHOUT(STOP & START SYSTEM)

main88501-3A230iAVC10..ARL201510-201806

sub88501-3A231

main88501-3A231iAVC10201807-201810

main88501-53030iASC10..GEN201510-201810

WITH(STOP & START SYSTEM)

main88501-53030iASC10..ARL,CHI201810-202111

88515VALVE, COOLER EXPANSION

main88515-30780iGSC10201409-202209

main88515-30800iAVC10..ARL201510-201810

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88839-30010iASC10,GSC10..LHD201409-202209

88539JHOSE, DRAIN COOLER

main88539-30A00iASC10,AVC10,GSC10201409-202209

88578BPACKING, COOLING UNIT, NO.1

main88578-3A010iGSC10201409-202209

88578CPACKING, COOLING UNIT, NO.2

main88578-52130iGSC10201409-201501

sub88578-52131

main88578-52131iASC10,GSC10..ARL201501-202209

88578VPACKING, COOLING UNIT, NO.3

main88578-30890iAVC10..ARL201409-202209

88625THERMISTOR, COOLER, NO.1

main88620-30050iASC10,GSC10..LHD201409-202209

main88620-30290iAVC10..ARL201510-201810

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-24430iGSC10..LHD201409-201510

sub88650-24431

main88650-24431iASC10,GSC10..LHD201510-201609

main88650-24432iASC10,GSC10..LHD201609-201711

main88650-24433iASC10,GSC10..LHD201711-202009

main88650-24440iGSC10..ARL201409-201510

sub88650-24441

main88650-24441iASC10,GSC10..ARL201510-201609

main88650-24442iASC10,GSC10..ARL201609-201711

main88650-24443iASC10,GSC10..ARL201711-202009

main88650-24451iAVC10..ARL201510-201608

main88650-24480iAVC10..GEN201510-201609

main88650-24481iAVC10201609-201711

main88650-24482iAVC10201711-201810

main88650-24551iASC10,GSC10..LHD202009-202301

main88650-24552iASC10,GSC10..LHD202301

main88650-24561iASC10,GSC10..ARL202009-202209

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-3A410iASC10,GSC10..ARL201409-202209

88892QPLATE, COOLER

main88892-30620iGSC10201409-202209

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iASC10,AVC10,GSC10201709-202209

main88897-35030iAVC10..ARL201409-201708

88897UPIPE, ASPIRATOR

main88897-32090iGSC10201409-202209

88899NPLATE, COVER

main88899-3A090iGSC10201409-202209

8712730040PACKING, HEATER AIR DAMPER

main87127-30040

8712730050PACKING, HEATER AIR DAMPER

main87127-30050

8712830050GROMMET, HEATER

main87128-30050

8719387101

main87193-87101

8742953010PIPE, COMBUSTION HEATER OUTLET

main87429-53010

8857853020PAKING, COOLER AIR DUCT

main88578-53020

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906775

main90119-06775

9011906952

main90119-06952

9015950327

main90159-50327

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282
