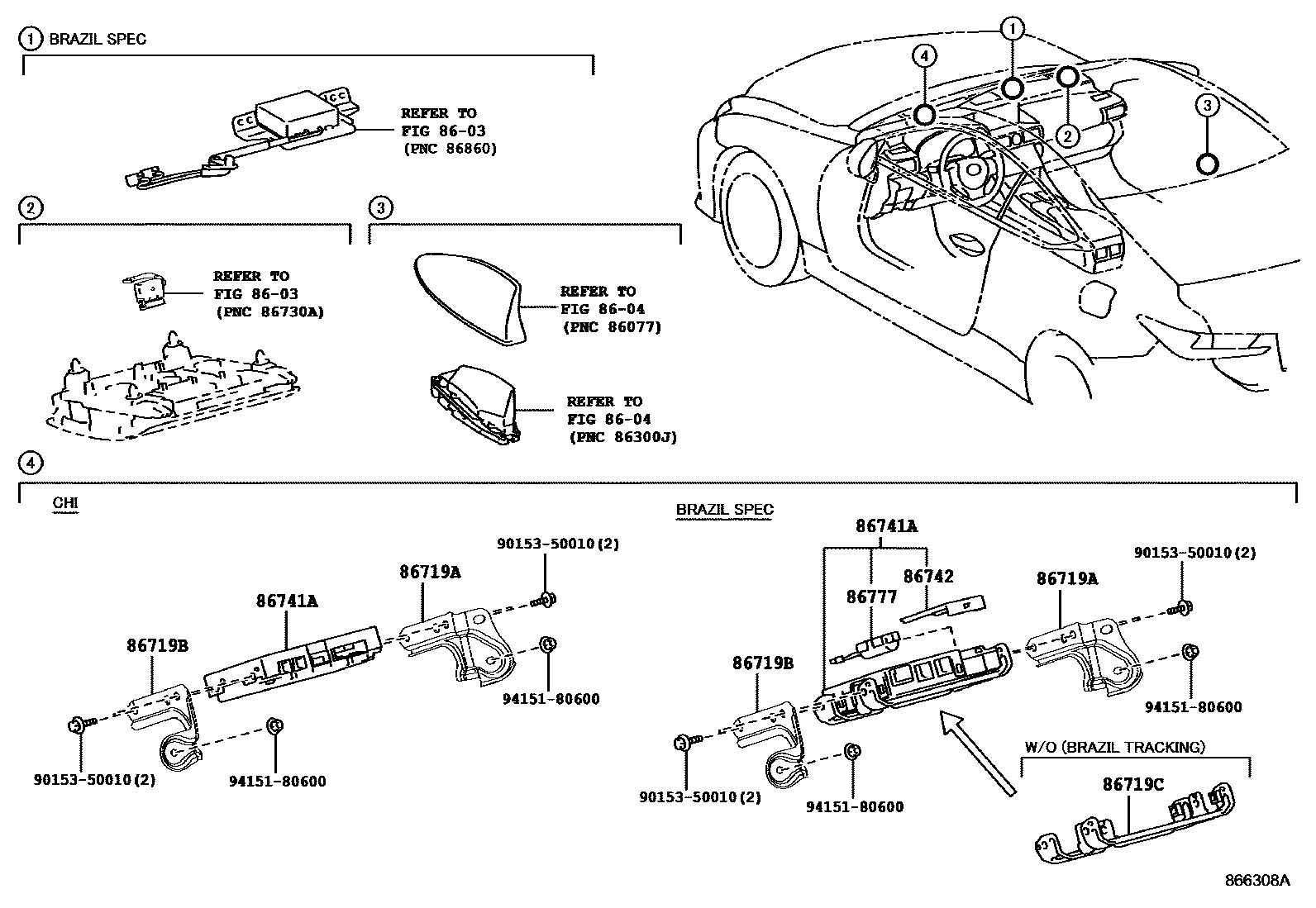

TELEPHONE & MAYDAY
8603
8604
86719ABRACKET, TELEPHONE NO.1
DATA COMMUNICATION MODULE-WITHOUT
BRAZIL SPEC&ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)
MAYDAY SYSTEM-WITH
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)
DATA COMMUNICATION MODULE-WITHOUT
86719BBRACKET, TELEPHONE NO.2
DATA COMMUNICATION MODULE-WITHOUT
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)
BRAZIL SPEC&ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)
MAYDAY SYSTEM-WITH
DATA COMMUNICATION MODULE-WITHOUT
86719CBRACKET, TELEPHONE NO.3
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)
86741ATRANSCEIVER, TELEMATICS
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)&AUDIO-EMV & DVD & 17SPEAKER
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)&AUDIO-EMV & DVD & 10SPEAKER
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)
AUDIO-EMV & DVD & 17SPEAKER&DATA COMMUNICATION MODULE-WITHOUT
AUDIO-EMV & DVD & 10SPEAKER&DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITHOUT
MAYDAY SYSTEM-WITH
86742COVER, TRANSCEIVER
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)&AUDIO-EMV & DVD & 10SPEAKER
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)&AUDIO-EMV & DVD & 17SPEAKER
DATA COMMUNICATION MODULE-WITHOUT
86777BATTERY, MAYDAY
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)&AUDIO-EMV & DVD & 10SPEAKER
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)&AUDIO-EMV & DVD & 17SPEAKER
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)
9015350010
main90153-50010
9415180600
main94151-80600
10 parts on this diagram · 2 diagrams in section
