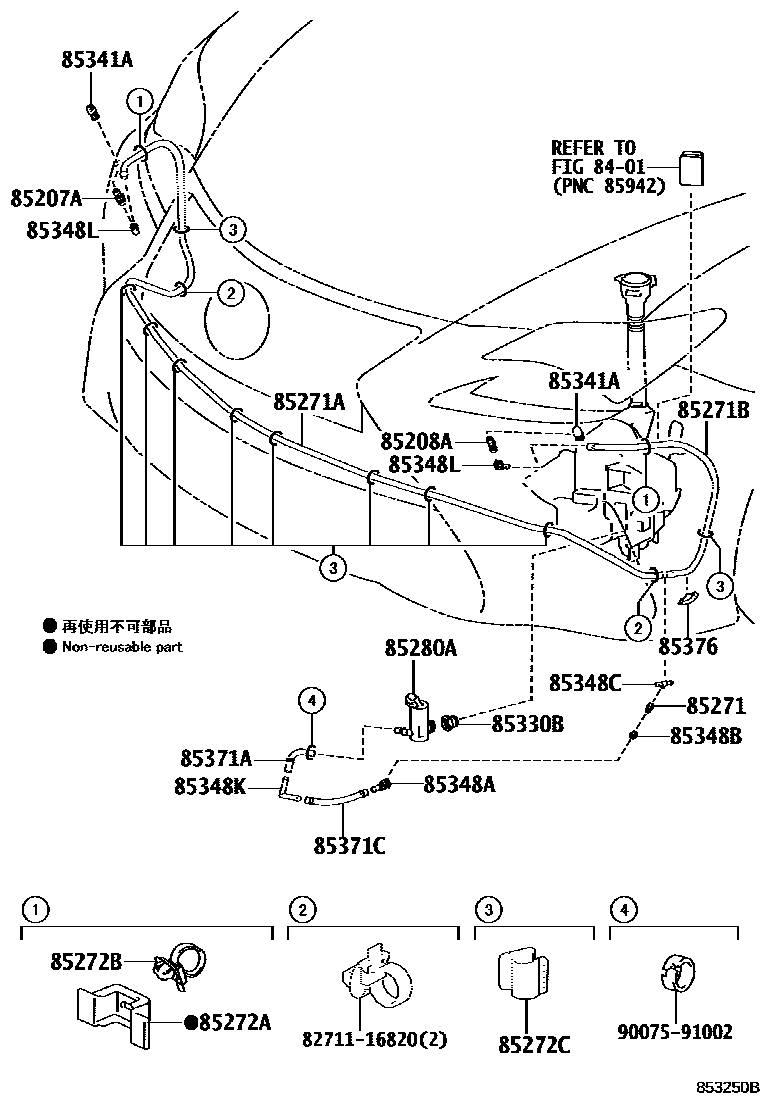

HEADLAMP CLEANER
8401
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP CLEANER-WITH
85271HOSE, HEADLAMP CLEANER, NO.1
L=35,HEADLAMP CLEANER-WITH
L=100
85271AHOSE, HEADLAMP CLEANER, NO.2
L=2500,HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
85271BHOSE, HEADLAMP CLEANER, NO.3
L=2800
HEADLAMP CLEANER-WITH
85272ACLAMP, HEADLAMP CLEANER, NO.1
HEADLAMP CLEANER-WITH
85272BCLAMP, HEADLAMP CLEANER, NO.2
HEADLAMP CLEANER-WITH
85272CCLAMP, HEADLAMP CLEANER, NO.3
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
WHITE PEARL CS.,077,RH
WHITE NOVA GF.,083,RH
SONIC QUARTZ,085,RH
MERCURY GRAY MC.,1H9,RH
PLATINUM SILVER ME.,1J4,RH
HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,RH
HEADLAMP CLEANER-WITH,BLACK,212,RH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),STARLIGHT BLACK GF.,217,RH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),GRAPHITE BLACK GF.,223,RH
RED,3T5,RH
ORANGE,4W7,RH
NAPLES YELLOW,5C1,RH
HEADLAMP CLEANER-WITH,BLUE,8X1,RH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),WHITE NOVA GF.,083,RH
SONIC QUARTZ,085,RH
MERCURY GRAY MC.,1H9,RH
SONIC TITANIUM,1J7,RH
SONIC CHROME,1L1,RH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),TITANIUM CARBIDE GRAY,1L8,RH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),BLACK,212,RH
GRAPHITE BLACK GF.,223,RH
RADIANT RED CONTRAST LAYE,3T5,RH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),LAVA ORANGE CS.,4W7,RH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),NAPLES YELLOW CONTRAST LA,5C1,RH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),HEAT BLUE CONTRAST LAYERI,8X1,RH
SPARKLING METEOR ME.,8X9,RH
CELESTIAL BLUE GF.,8Y6,RH
WHITE PEARL CS.,077,LH
HEADLAMP CLEANER-WITH,WHITE NOVA GF.,083,LH
SONIC QUARTZ,085,LH
MERCURY GRAY MC.,1H9,LH
HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,LH
SONIC TITANIUM,1J7,LH
HEADLAMP CLEANER-WITH,BLACK,212,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),STARLIGHT BLACK GF.,217,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),GRAPHITE BLACK GF.,223,LH
HEADLAMP CLEANER-WITH,RED,3T5,LH
ORANGE,4W7,LH
NAPLES YELLOW,5C1,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),BLUE,8X1,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),WHITE NOVA GF.,083,LH
SONIC QUARTZ,085,LH
MERCURY GRAY MC.,1H9,LH
SONIC TITANIUM,1J7,LH
SONIC CHROME,1L1,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),TITANIUM CARBIDE GRAY,1L8 ,2YX,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),BLACK,212,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),GRAPHITE BLACK GF.,223,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),RADIANT RED CONTRAST LAYE,3T5,LH
LAVA ORANGE CS.,4W7,LH
NAPLES YELLOW CONTRAST LA,5C1,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),HEAT BLUE CONTRAST LAYERI,8X1,LH
SPARKLING METEOR ME.,8X9,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),CELESTIAL BLUE GF.,8Y6,LH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),SONIC IRIDIUM,1L2,RH
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER),SONIC IRIDIUM,1L2,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
HEADLAMP CLEANER-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
HEADLAMP CLEANER-WITH
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
HEADLAMP CLEANER-WITH
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=80,HEADLAMP CLEANER-WITH
85371CHOSE, HEADLAMP CLEANER, NO.1
L=200,HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
9007591002
main90075-91002
22 parts on this diagram · 2 diagrams in section
