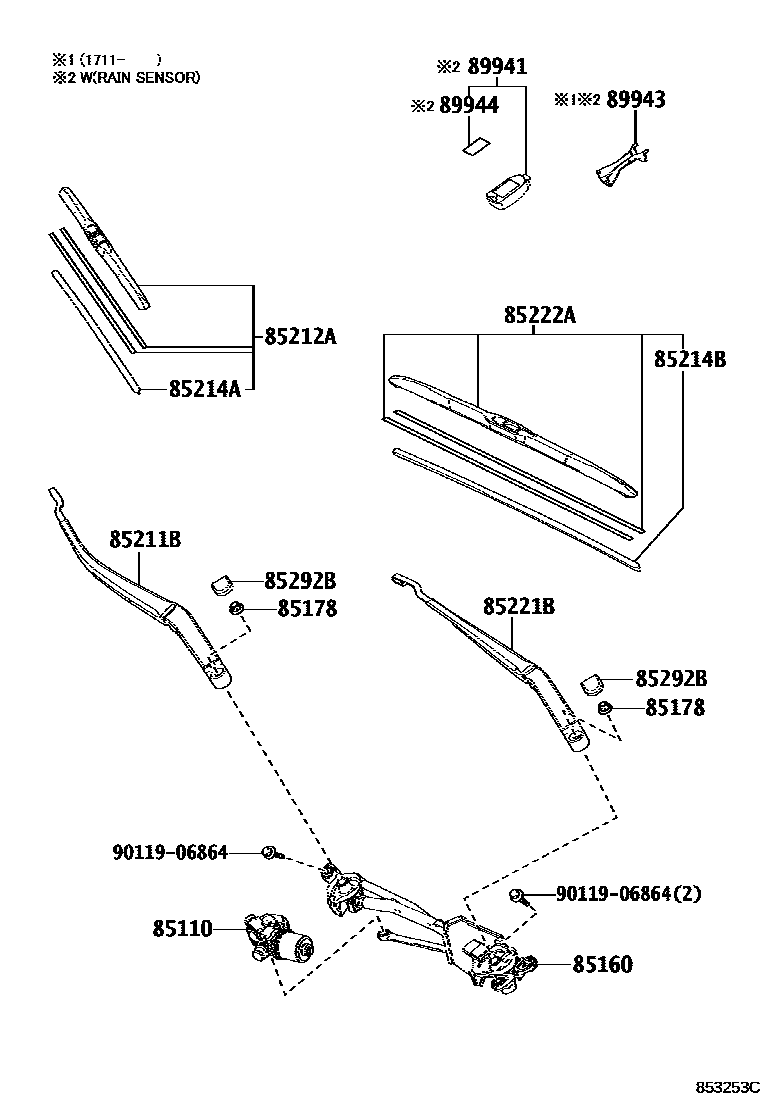

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-53050iASC10,AVC10,GSC10..LHD201409-201810

main85110-53070iASC10,GSC10..ARL¥9,900201409-202209

85160LINK ASSY, WINDSHIELD WIPER

main85150-24130iGSC10..ARL¥6,300201409-202209

main85150-24140iASC10,GSC10..LHD201409-201810

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iAVC10..GEN;ASC10,GSC10¥80201409-202209

85211BARM, FRONT WIPER, RH

main85211-24140iASC10,GSC10..ARL¥2,930201409-202209

main85211-24150iASC10,GSC10..LHD201409-201810

85212ABLADE, FR WIPER, RH

main85212-24150iASC10,AVC10,GSC10..ARL¥3,700201409-202209

main85212-53100iASC10,AVC10,GSC10..LHD¥2,180201409-201810

85214ARUBBER, WIPER, RH

main85214-30380iAVC10..ARL¥850201409-202209

main85214-33180iASC10,AVC10,GSC10..LHD¥800201409-201810

85214BRUBBER, WIPER, LH

main85214-30380iASC10,AVC10,GSC10..LHD¥850201409-201810

main85214-33180iASC10,GSC10..ARL¥800201409-202209

85221BARM, FRONT WIPER, LH

main85221-24140iGSC10..ARL¥3,460201409-202209

main85221-24150iASC10,AVC10,GSC10..LHD201409-201810

85222ABLADE, FR WIPER, LH

main85222-24150iASC10,GSC10..LHD¥3,700201409-201810

main85222-53080iGSC10..ARL¥2,180201409-202209

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iGSC10¥250201409-202209

89941SENSOR, RAIN

main89941-52010iAVC10¥12,500201711-201810

"F SPORT"

main89941-52010iAVC10¥12,500201711-201810

"VERSION L"

main89941-52010iAVC10¥12,500201711-201810

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main89941-52010iASC10,GSC10..ARL¥12,500201810-202209

HONG KONG SPEC

main89941-52010iGSC10..GEN¥12,500202111

89943COVER, RAIN SENSOR

main89943-24010iAVC10¥230201711-201810

"F SPORT"

main89943-24010iAVC10¥230201711-201810

"VERSION L"

main89943-24010iAVC10¥230201711-201810

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main89943-24010iASC10,GSC10..ARL¥230201810-202209

HONG KONG SPEC

main89943-24010iGSC10..GEN¥230202111

89944TAPE, RAIN SENSOR

main89944-42010iAVC10¥1,490201711-201810

"F SPORT"

main89944-42010iAVC10¥1,490201711-201810

"VERSION L"

main89944-42010iAVC10¥1,490201711-201810

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main89944-42010iASC10,GSC10..ARL¥1,490201810-202209

HONG KONG SPEC

main89944-42010iGSC10..GEN¥1,490202111

9011906864

main90119-06864¥80

14 parts on this diagram · 1 diagram in section
