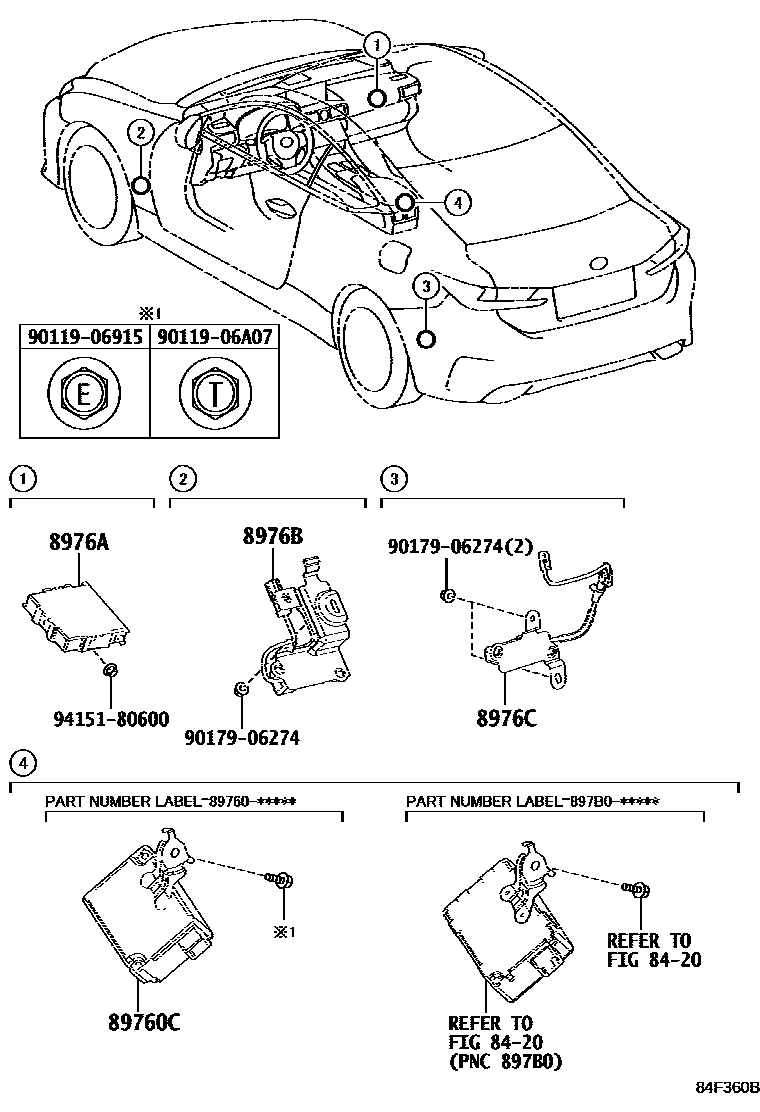

TIRE PRESSURE WARNING SYSTEM
8420
89760CRECEIVER ASSY, TIRE PRESSURE MONITOR
8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ,W/AUTO LOCATION)
sub8976A-53032
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ,W/AUTO LOCATION)
sub8976A-53032
VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ,W/AUTO LOCATION)
sub8976A-53032
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
sub8976A-53032
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTOLOCATION))
sub8976A-53032
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ, WITH(AUTOLOCATION))
sub8976A-53032
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
sub8976A-53033
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTOLOCATION))
sub8976A-53033
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ, WITH(AUTOLOCATION))
sub8976A-53033
8976BINITIATOR, TIRE PRESSURE MONITOR FRONT
TAIWAN SPEC&"F SPORT"
"VERSION L"
TAIWAN SPEC
"F SPORT"
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ,W/AUTO LOCATION)
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ,W/AUTO LOCATION)
VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ,W/AUTO LOCATION)
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTOLOCATION))
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ, WITH(AUTOLOCATION))
8976CINITIATOR, TIRE PRESSURE MONITOR REAR
TAIWAN SPEC&"F SPORT"
"VERSION L"
TAIWAN SPEC
"F SPORT"
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ,W/AUTO LOCATION)
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ,W/AUTO LOCATION)
VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ,W/AUTO LOCATION)
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTOLOCATION))
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ, WITH(AUTOLOCATION))
9011906915
main90119-06915
9011906A07
main90119-06A07
9017906274
main90179-06274
9415180600
main94151-80600
9 parts on this diagram · 1 diagram in section
