WIRELESS DOOR LOCK
8401
8606
89740ARECEIVER ASSY, SMART DOOR CONTROL
BRAZIL SPEC
89747BUZZER, WIRELESS DOOR LOCK
897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS
sub897B0-24261
"VERSION L"
MACAU SPEC&SPARE TIRE-TEMPORARY(T145/70D18, ALUMINUM)
"F SPORT"
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTOLOCATION))
"F SPORT"
CHILE SPEC
89955BRACKET, SMART KEY COMPUTER
89990ACOMPUTER ASSY, SMART KEY
sub89990-24011
sub89990-24061
WITH(STOP & START SYSTEM)
sub89990-24111
sub89990-24181
sub89990-24202
89997ANTENNA, ELECTRICAL KEY
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
9011906915
main90119-06915
9015950346
main90159-50346
9017906274
main90179-06274
9167380616
main91673-80616
9415180600
main94151-80600

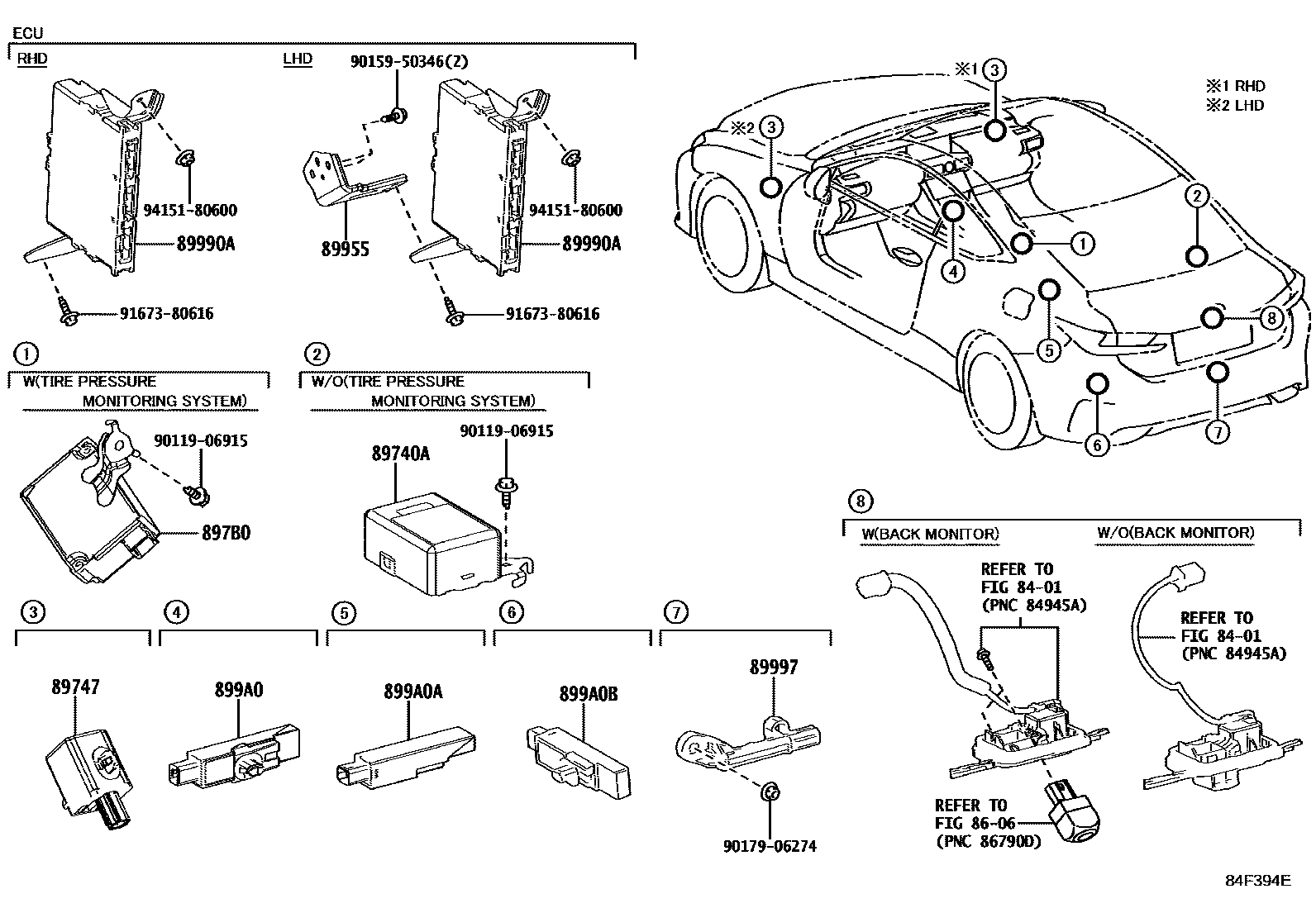

16 parts on this diagram · 3 diagrams in section
