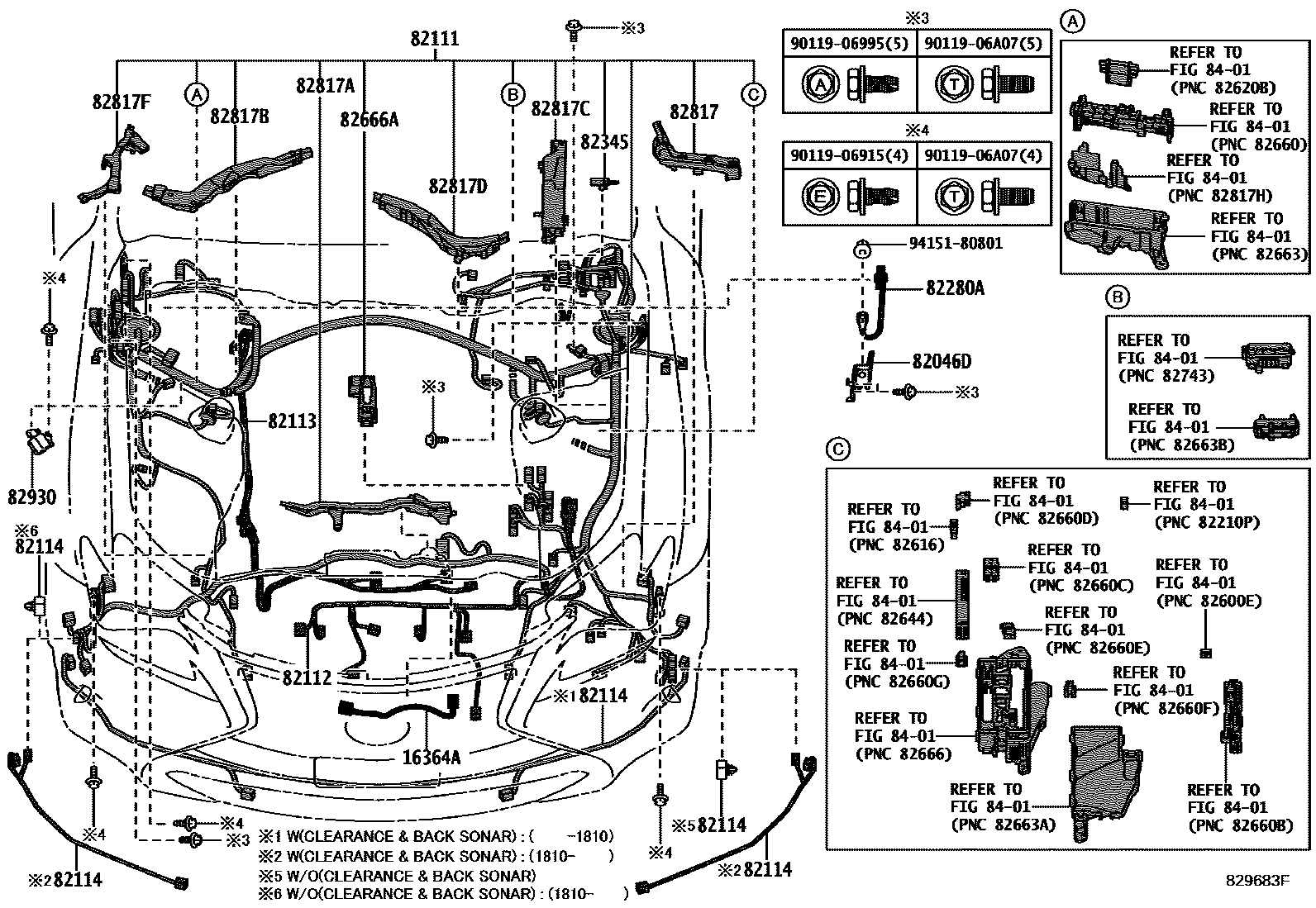

WIRING & CLAMP
16364AWIRE, COOLING FAN
82046DWIRE, BODY GROUND
82111WIRE, ENGINE ROOM MAIN
"VERSION L"&STEERING COLUMN-POWER&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
"VERSION L"&STEERING COLUMN-POWER
"VERSION L"&STEERING COLUMN-POWER
"VERSION L"&STEERING COLUMN-POWER
MALAYSIA SPEC&"F SPORT"
MALAYSIA SPEC&"F SPORT"
"VERSION L"
"VERSION L"
THAILAND SPEC&"VERSION L"&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
MACAU SPEC&"VERSION L"&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
HONG KONG SPEC&"VERSION L"&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
SINGAPORE SPEC&"VERSION L"&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
MACAU SPEC&"VERSION L"&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
SINGAPORE SPEC&"VERSION L"&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
THAILAND SPEC&"VERSION L"&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
THAILAND SPEC&"VERSION L"&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
SINGAPORE SPEC&"VERSION L"&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
82112WIRE, ENGINE ROOM, NO.2
82113WIRE, ENGINE ROOM, NO.3
82114WIRE, ENGINE ROOM, NO.4
82280AWIRE ASSY, BATTERY TO COWL TOP SIDE
MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
sub82280-24061
TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
82345DIODE
82666AHOLDER, CONNECTOR NO.2
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817DPROTECTOR, WIRING HARNESS, NO.5
82817FPROTECTOR, WIRING HARNESS, NO.7
82930CONDENSER ASSY, WIRING HARNESS, NO.1
8401
9011906915
9011906995
9011906A07
9415180801
21 parts on this diagram · 22 diagrams in section
