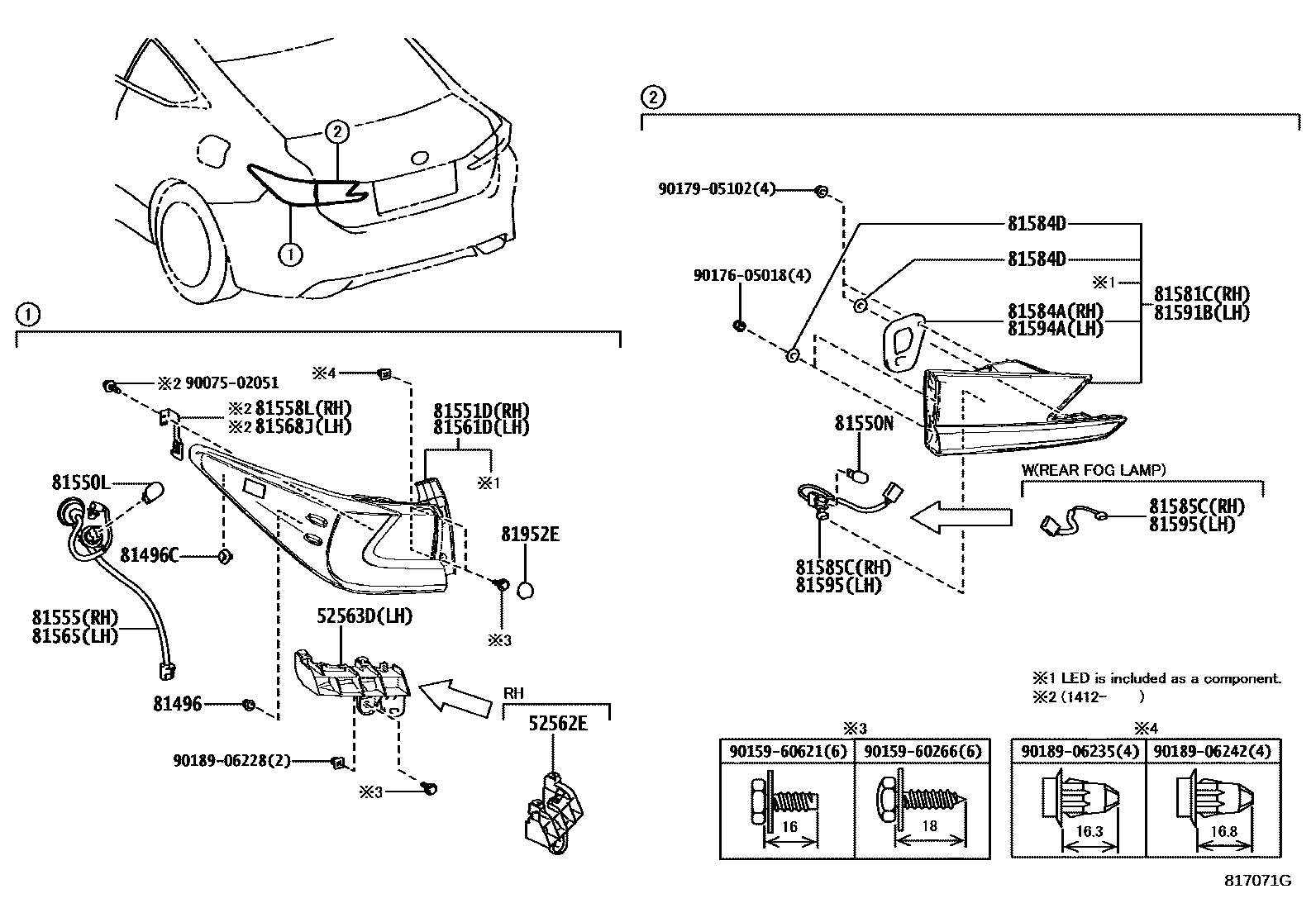

REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W,BRUNEI SPEC
12V 16W,SINGAPORE SPEC
12V 16W,MALAYSIA SPEC
12V 16W
12V 16W,CHILE SPEC
12V 16W,HONG KONG SPEC
12V 16W,SOUTH AFRICA SPEC
12V 16W,MACAU SPEC
12V 16W,INDONESIA SPEC
12V 16W,THAILAND SPEC
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81558LPROTECTOR, REAR COMBINATION LAMP, RH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81568JPROTECTOR, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
sub81581-24070
HONG KONG SPEC
BRUNEI SPEC
SINGAPORE SPEC
MACAU SPEC
CHILE SPEC
81584AGASKET, REAR LAMP RH
81584DGASKET, REAR LAMP
81585CSOCKET & WIRE, REAR LAMP, RH
BRUNEI SPEC
HONG KONG SPEC
SINGAPORE SPEC
MACAU SPEC
CHILE SPEC
81591BLENS AND BODY, REAR LAMP, LH
sub81591-24080
MACAU SPEC
HONG KONG SPEC
BRUNEI SPEC
SINGAPORE SPEC
CHILE SPEC
81594AGASKET, REAR LAMP LH
81595SOCKET & WIRE, REAR LAMP, LH
MACAU SPEC
SINGAPORE SPEC
HONG KONG SPEC
BRUNEI SPEC
CHILE SPEC
81952ECOVER, REAR LAMP
9007502051
main90075-02051
9015960266
main90159-60266
9015960621
main90159-60621
9017605018
main90176-05018
9017905102
main90179-05102
9018906228
main90189-06228
9018906235
main90189-06235
9018906242
main90189-06242
28 parts on this diagram · 2 diagrams in section
