HEADLAMP

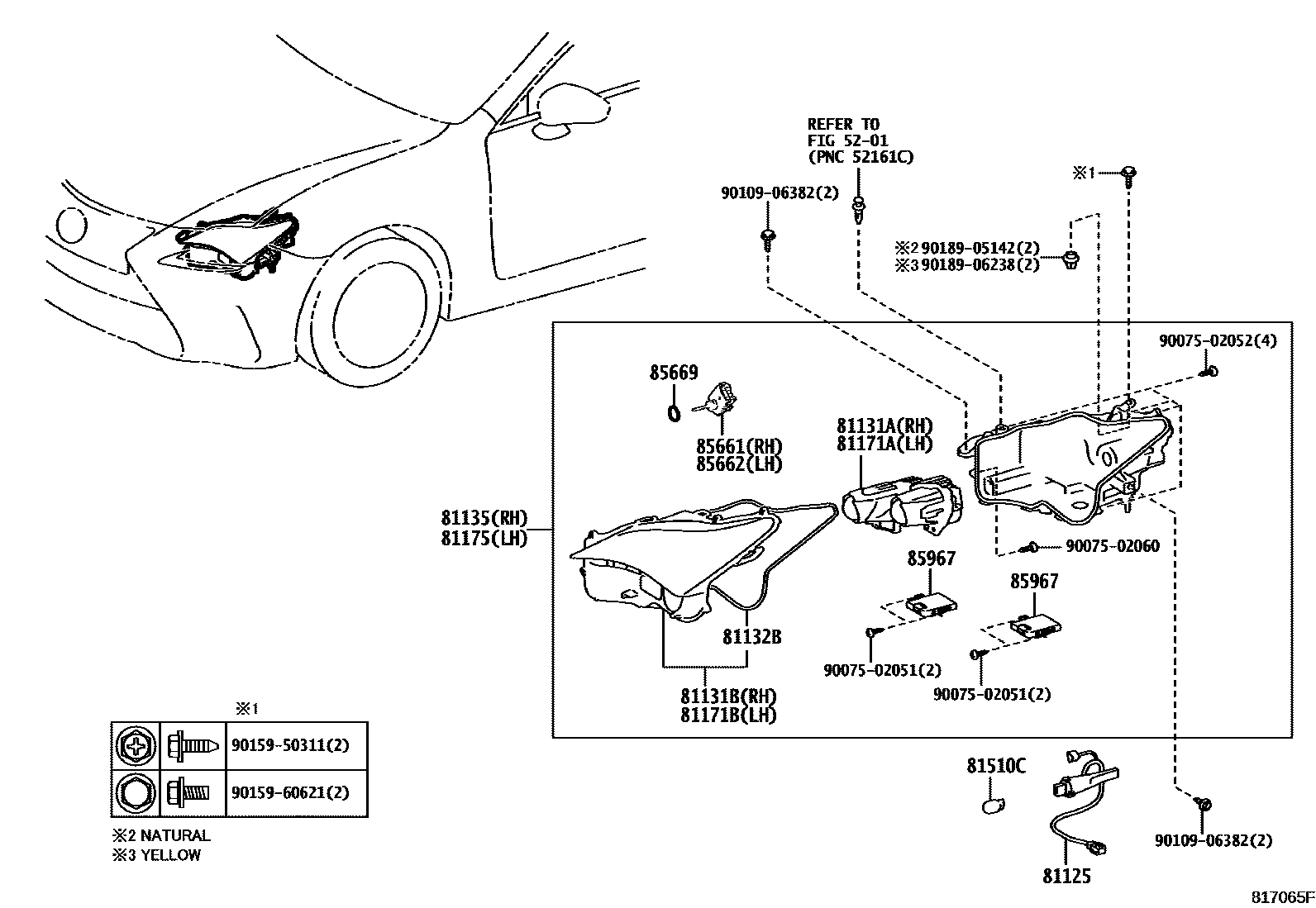

Parts diagram
5201
81125CORD, HEADLAMP
main81125-24200i201409-201810
81131AUNIT, HEADLAMP, RH
main81130-24190i201409-201810
main81130-24200i201409-201810
main81130-24220i201409-201810
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81130-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81130-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81130-24220i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81130-24220i201711-201810
TAIWAN SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)
main81130-24220i201711-201810
TAIWAN SPEC&"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
81131BHEAD LAMP LENS, RH
main81131-24190i201409-201810
main81131-24200i201409-201810
main81131-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81131-24220i201409-201810
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81131-24220i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81131-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81131-24220i201711-201810
TAIWAN SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)
main81131-24220i201711-201810
TAIWAN SPEC&"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81131-24300i201810-202209
main81131-24310i201810-202111
main81131-24350i201810
81132BGASKET, HEADLAMP LENS
main81132-30E40i201810-202209
main81132-52180i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81132-52180i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81132-52180i201409-201810
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81132-52180i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81132-52180i201510-201608
main81132-52180i201510-201711
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH
main81132-52180i201510-201711
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH
main81132-52180i201711-201810
TAIWAN SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)
main81132-52180i201711-201810
TAIWAN SPEC&"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
81135UNIT ASSY, HEADLAMP, RH
main81105-24190i201409-201810
main81105-24200i201409-201810
main81145-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81145-24220i201409-201810
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81145-24220i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81145-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81145-24220i201711-201810
TAIWAN SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)
main81145-24220i201711-201810
TAIWAN SPEC&"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81145-24300i201810-202209
sub81145-24301
main81145-24310i201810-202111
sub81145-24311
main81145-24350i201810-202309
sub81145-24351
main81145-24351i202309
81171AUNIT, HEADLAMP, LH
main81170-24190i201409-201810
main81170-24200i201409-201810
main81170-24220i201711-201810
TAIWAN SPEC&"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81170-24220i201711-201810
TAIWAN SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)
main81170-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81170-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81170-24220i201409-201810
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81170-24220i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
81171BHEAD LAMP LENS, LH
main81171-24190i201409-201810
main81171-24200i201409-201810
main81171-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81171-24220i201409-201810
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81171-24220i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81171-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81171-24220i201711-201810
TAIWAN SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)
main81171-24220i201711-201810
TAIWAN SPEC&"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81171-24300i201810-202209
main81171-24310i201810-202111
main81171-24350i201810
81175UNIT ASSY, HEADLAMP, LH
main81106-24190i201409-201810
main81106-24200i201409-201810
main81185-24220i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81185-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81185-24220i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main81185-24220i201409-201810
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81185-24220i201711-201810
TAIWAN SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)
main81185-24220i201711-201810
TAIWAN SPEC&"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main81185-24300i201810-202209
sub81185-24301
main81185-24310i201810-202111
sub81185-24311
main81185-24350i201810-202309
sub81185-24351
main81185-24351i202309
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15021i201409-201810
12V 21W,AMBER
85661MOTOR, HEADLAMP LEVELING, RH
main85661-12020i201409-201810
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED)
main85661-12020i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main85661-12020i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main85661-12020i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main85661-12020i201510-201608
main85661-12020i201510-201711
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH
main85661-12020i201510-201711
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH
main85661-12020i201711-201810
TAIWAN SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)
main85661-12020i201711-201810
TAIWAN SPEC&"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main85661-48050i201810-202209
85662MOTOR, HEADLAMP LEVELING, LH
main85661-12020i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED)
main85661-12020i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main85661-12020i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main85661-12020i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main85661-12020i201510-201810
main85661-48050i201810-202209
85669PACKING, HEADLAMP LEVELING MOTOR BASE
main90075-99120i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
main90075-99120i201409-201510
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main90075-99120i201409-201810
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED)
main90075-99120i201409-201510
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
main90075-99120i201510-201608
main90075-99120i201510-201711
"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH
main90075-99120i201510-201711
"VERSION L"&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)&LANE KEEPING SYSTEM-WITH
main90075-99120i201711-201810
TAIWAN SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)
main90075-99120i201711-201810
TAIWAN SPEC&"F SPORT"&HEADLAMP-LED(TRINOCULAR FULL LED)
85967COMPUTER, LIGHT CONTROL
main85967-12010i201409-201810
9007502051
main90075-02051
9007502052
main90075-02052
9007502060
main90075-02060
9010906382
main90109-06382
9015950311
main90159-50311
9015960621
main90159-60621
9018905142
main90189-05142
9018906238
main90189-06238

22 parts on this diagram · 4 diagrams in section
